Product Description

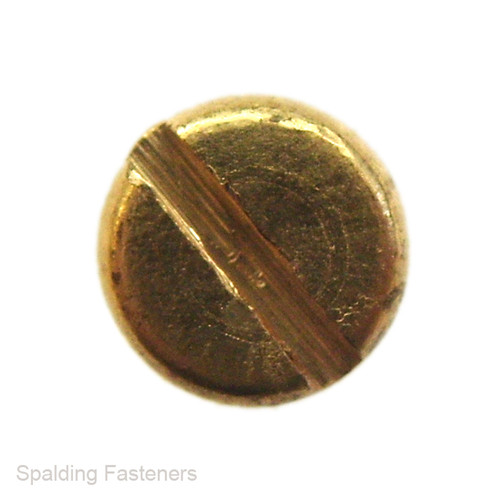

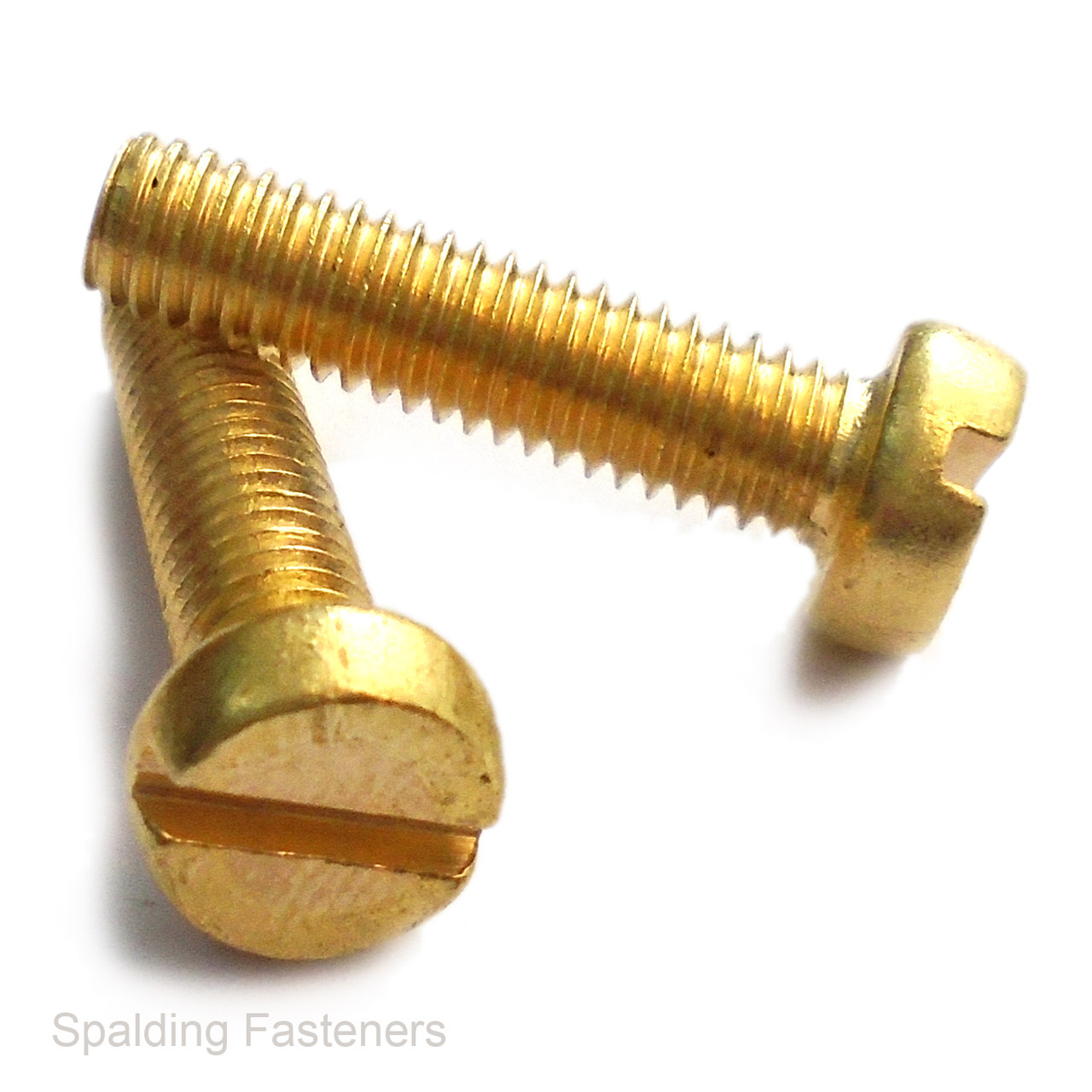

M2 Brass Cheese Head Slotted Machine Screws
M2 slotted cheese head machine screws manufactured from solid brass. Suitable for electrical equipment, decorative fittings and general assemblies where corrosion resistance is required.
Key Features
- M2 x 0.4 metric coarse thread
- Solid brass construction
- Slotted drive
- Cylindrical cheese head
- Available lengths: 6mm, 8mm, 10mm and 12mm
- Pack sizes from 5 to 1,000
Dimensions
- Thread diameter: 2mm
- Thread pitch: 0.4mm
- Head diameter: 3.8mm
- Head height: 1.3mm
Standards
Manufactured to the DIN 84 pattern. The current corresponding standard is ISO 1207 and BS EN ISO 1207:2011.
Screw length is measured from beneath the head to the end of the threaded section. Confirm the mating thread is M2 x 0.4 before installation.
Useful Links
- View all machine screws
- M2.5 brass cheese head slotted screws
- M4 brass cheese head slotted screws
- Metric thread data guide
| A | B | C | D | E |
| 2mm | 10mm | 3.8mm | 1.3mm | 0.4 |
| 2mm | 12mm | 3.8mm | 1.3mm | 0.4 |
| 2mm | 6mm | 3.8mm | 1.3mm | 0.4 |
| 2mm | 8mm | 3.8mm | 1.3mm | 0.4 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
