Product Description

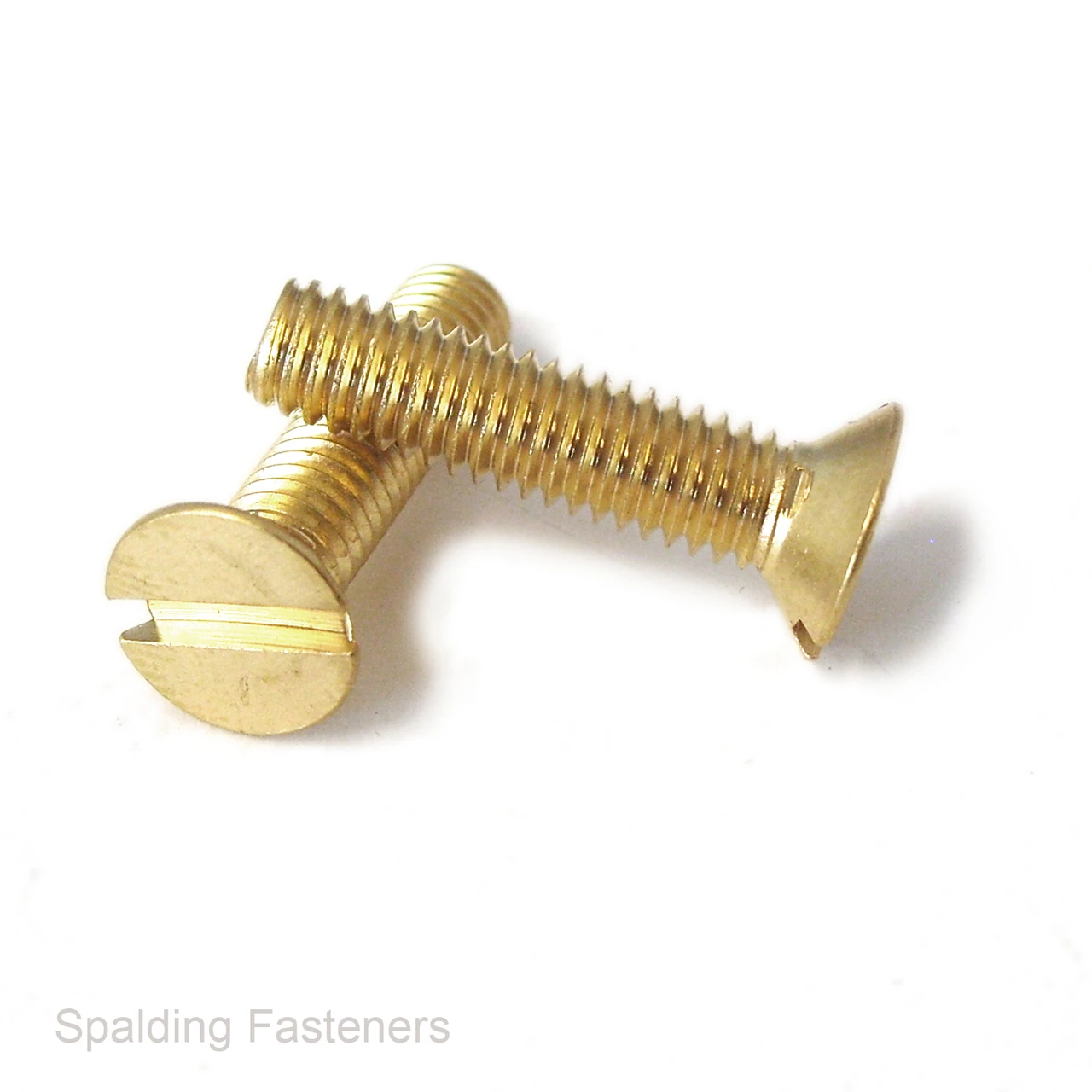

M8 Brass Countersunk Slotted Machine Screws
M8 countersunk slotted machine screws manufactured from solid brass. The flat countersunk head fits flush with a correctly prepared countersunk hole.
Key Features
- M8 x 1.25 metric coarse thread
- Solid brass construction
- Slotted drive

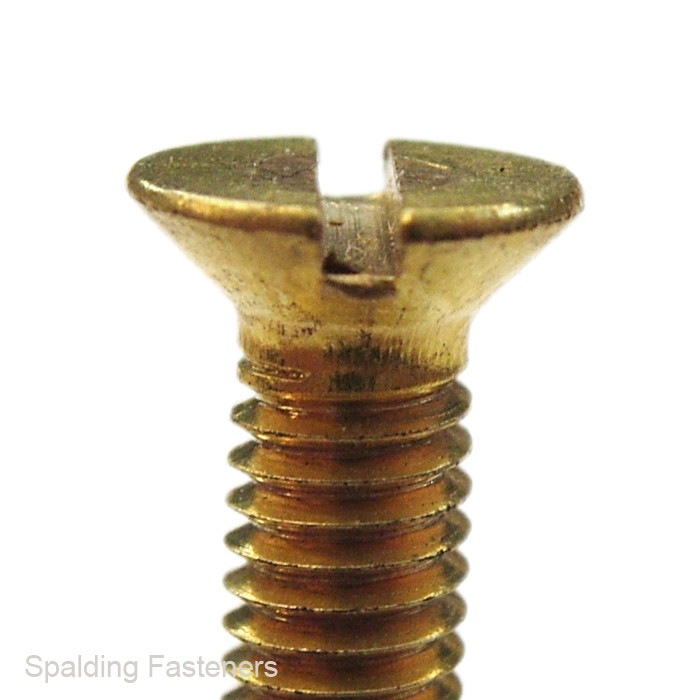

- Flat countersunk head
- Available lengths: 12mm, 16mm, 20mm, 25mm and 30mm
- Pack sizes from 1 to 1,000
Dimensions
- Thread diameter: 8mm
- Thread pitch: 1.25mm
- Head diameter: 14.5mm
- Head height: 4mm
Standards
Manufactured to the DIN 963 pattern. The current corresponding standard is ISO 2009 and BS EN ISO 2009:2011.
Countersunk screw length is measured from the top of the head to the end of the screw. Confirm the mating thread is M8 x 1.25 before installation.
Useful Links
- View all machine screws
- M3 brass countersunk slotted screws
- M4 brass countersunk slotted screws
- M6 brass countersunk slotted screws
| A | B | C | D | E |
| 8mm | 16mm | 14.5mm | 4mm | 1.25 |
| 8mm | 12mm | 14.5mm | 4mm | 1.25 |
| 8mm | 20mm | 14.5mm | 4mm | 1.25 |
| 8mm | 25mm | 14.5mm | 4mm | 1.25 |
| 8mm | 60mm | 14.5mm | 4mm | 1.25 |
| 8mm | 30mm | 14.5mm | 4mm | 1.25 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
