Product Description

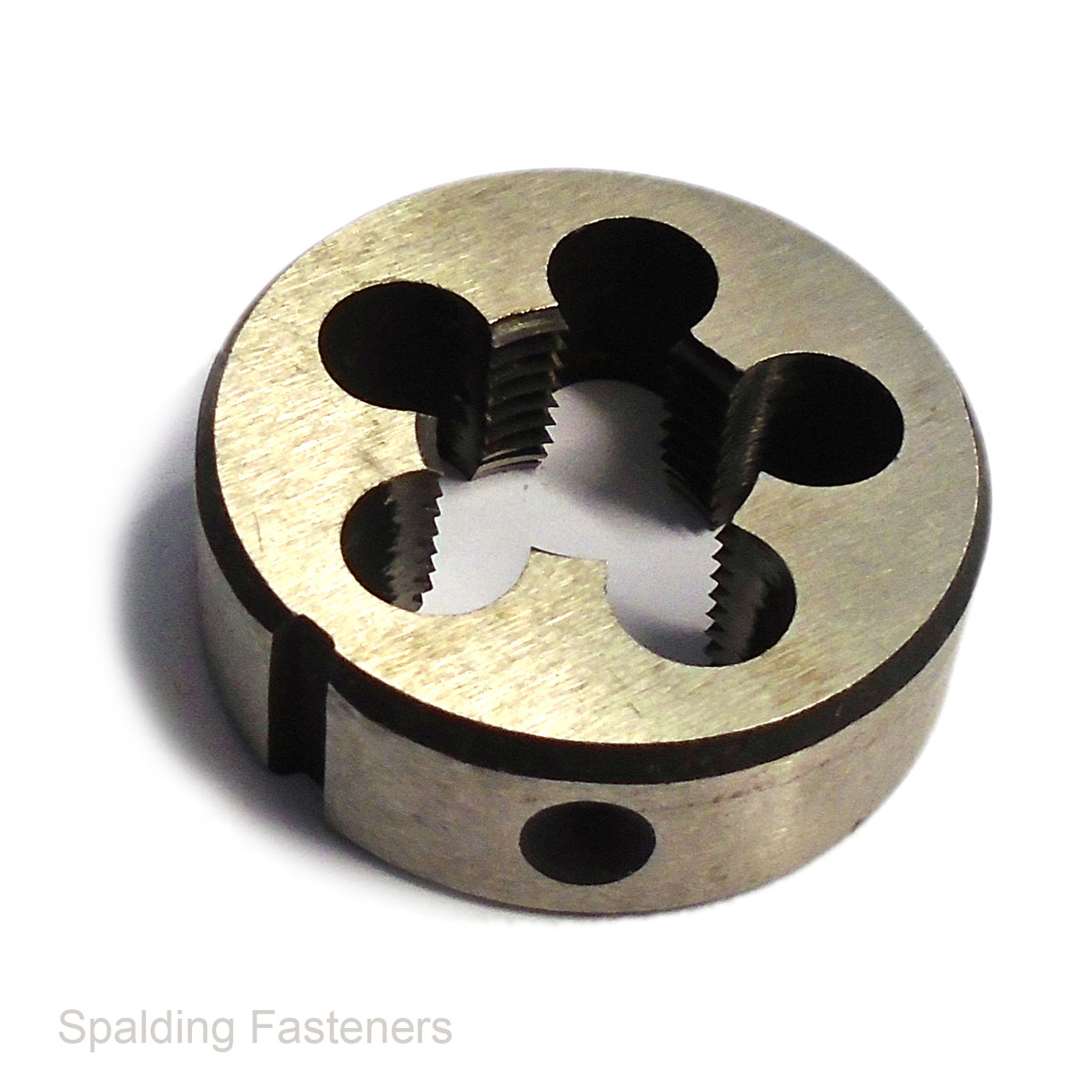

1 Inch BSPT Carbon Steel Circular Die
UK made carbon steel circular die for cleaning and restoring existing 1/8 inch BSPT external tapered pipe threads.
Key Features
- 1 inch outside die diameter
- 1/8 inch BSPT thread size
- 28 threads per inch
- Carbon steel construction
- Solid round die
- UK made
- For cleaning and restoring existing threads
Specification
| Thread Size | Die Diameter | Thread Pitch |
|---|---|---|
| 1/8" BSPT | 1" | 28 TPI |
The BSPT thread form is covered by ISO 7-1 and BS EN 10226-1. BSP pipe sizes are nominal and do not represent the measured thread diameter.
Use with a compatible 1 inch die holder and suitable cutting lubricant.
Useful Links
- View all thread cutting dies
- View 1 5/16 inch BSPT carbon steel dies
- View 1 inch BSPF carbon steel dies
Specifications are intended as a guide. Confirm the thread form, pitch and die diameter before use in critical applications.
