Product Description

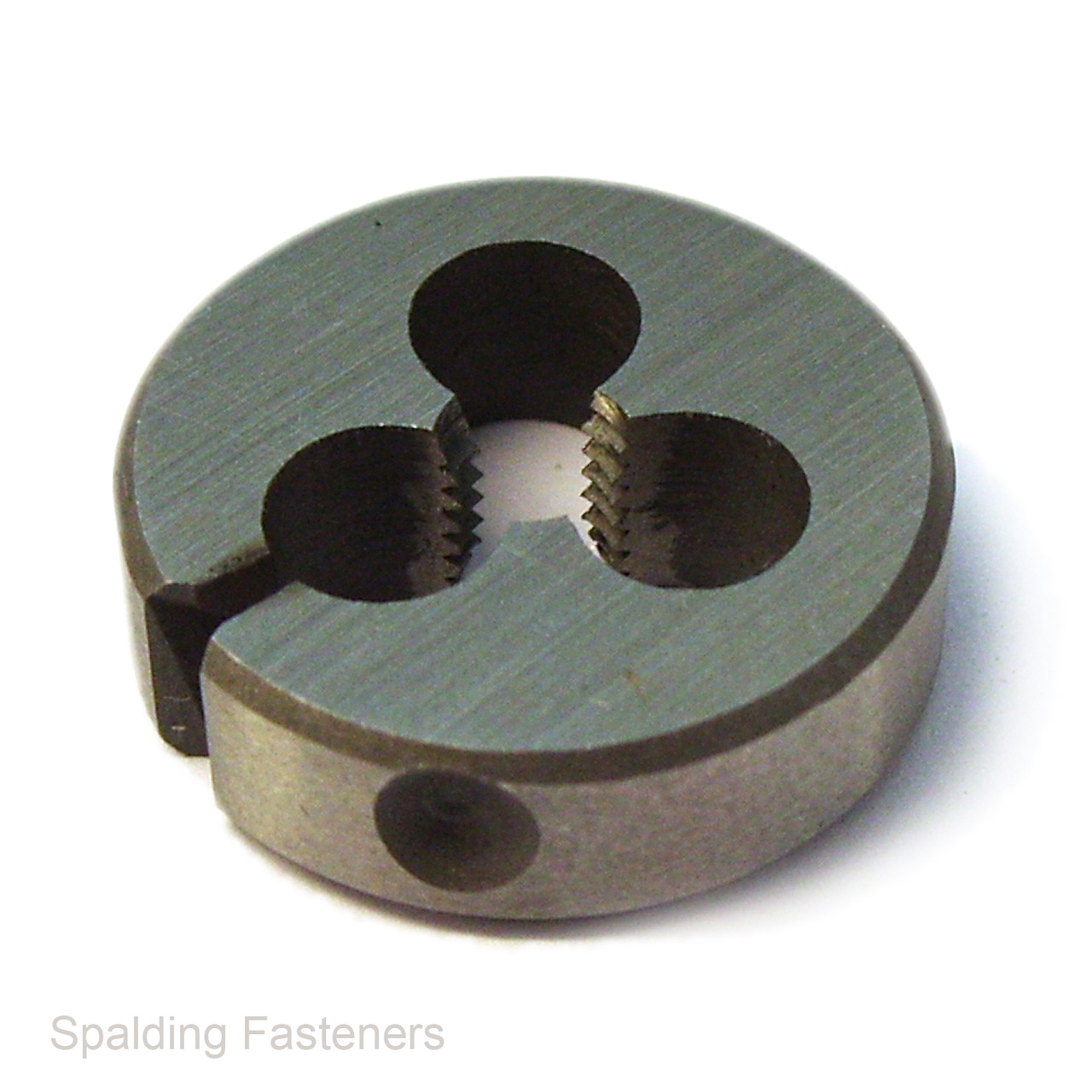

1 5/16 Inch Metric Fine Carbon Steel Circular Split Dies
Carbon steel circular split dies for cleaning, chasing and restoring existing metric fine and extra fine external threads. Each die has a 1 5/16 inch outside diameter for use with a compatible die holder.
Key Features
- Carbon steel construction
- For cleaning and restoring existing threads
- Metric fine and extra fine thread pitches
- 1 5/16 inch outside die diameter
- Available in M10, M12 and M14
Available Sizes
| Thread Size | Thread Pitch | Die Diameter |
|---|---|---|
| M10 | 1.25mm | 1 5/16 inch |
| M12 | 1mm | 1 5/16 inch |
| M12 | 1.25mm | 1 5/16 inch |
| M12 | 1.5mm | 1 5/16 inch |
| M14 | 1mm | 1 5/16 inch |
| M14 | 1.25mm | 1 5/16 inch |
| M14 | 1.5mm | 1 5/16 inch |
Standard
The metric fine and extra fine thread sizes and pitches follow ISO 261 and BS 3643-1. No manufacturing standard is claimed for the die body.
Useful Links
- View all dies
- View 1 5/16 inch metric coarse carbon steel dies
- View 1 inch metric fine carbon steel dies
- View 13/16 inch metric fine carbon steel dies
- Metric thread data guide
Use with a compatible 1 5/16 inch die holder and suitable thread-cutting lubricant. Carbon steel dies are primarily intended for cleaning and restoring existing threads rather than production cutting of new threads.
Specifications are intended as a guide. Confirm the required thread size, pitch and die diameter before ordering.
