Product Description

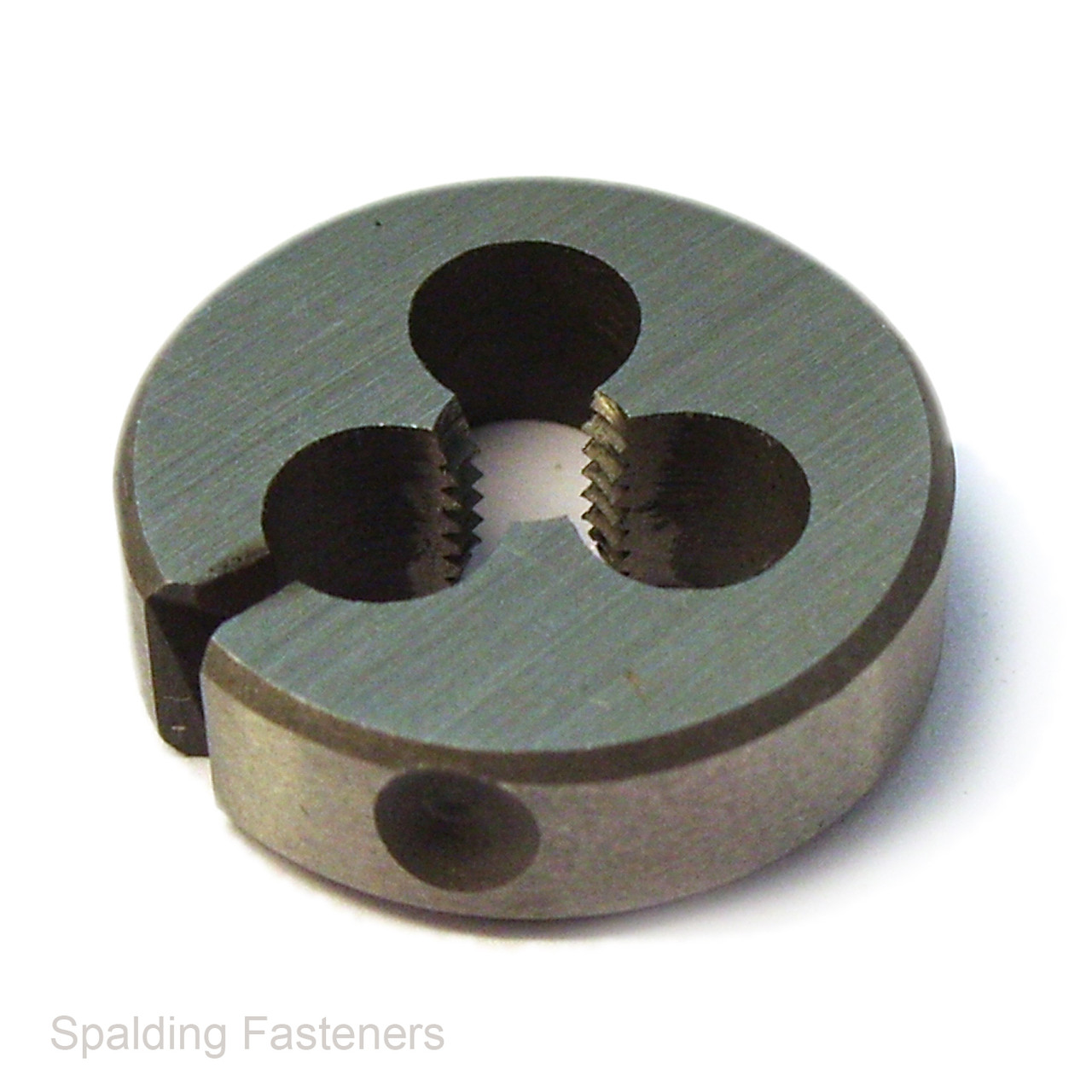

13/16 Inch UNC Carbon Steel Circular Split Dies
UK made carbon steel circular split dies for cleaning, chasing and restoring existing UNC external threads. Each die has a 13/16 inch outside diameter for use with a compatible die holder.
Available Sizes
| Thread Size | Die Diameter | Threads Per Inch |
|---|---|---|
| 3-48 UNC | 13/16 inch | 48 TPI |
| 4-40 UNC | 13/16 inch | 40 TPI |
| 5-40 UNC | 13/16 inch | 40 TPI |
| 6-32 UNC | 13/16 inch | 32 TPI |
| 8-32 UNC | 13/16 inch | 32 TPI |
| 10-24 UNC | 13/16 inch | 24 TPI |
| 12-24 UNC | 13/16 inch | 24 TPI |
| 1/4 inch UNC | 13/16 inch | 20 TPI |
Key Features
- Unified National Coarse thread form
- Carbon steel construction
- Circular split die design
- Limited adjustment with a suitable die holder
- 13/16 inch outside diameter
- For cleaning and restoring existing external threads
- UK made
Use a suitable cutting lubricant and keep the die square to the existing thread. High speed steel dies are recommended when regularly cutting new threads.
The listed UNC thread sizes and pitches correspond with ASME B1.1. No manufacturing standard is claimed for the die body.
