Product Description

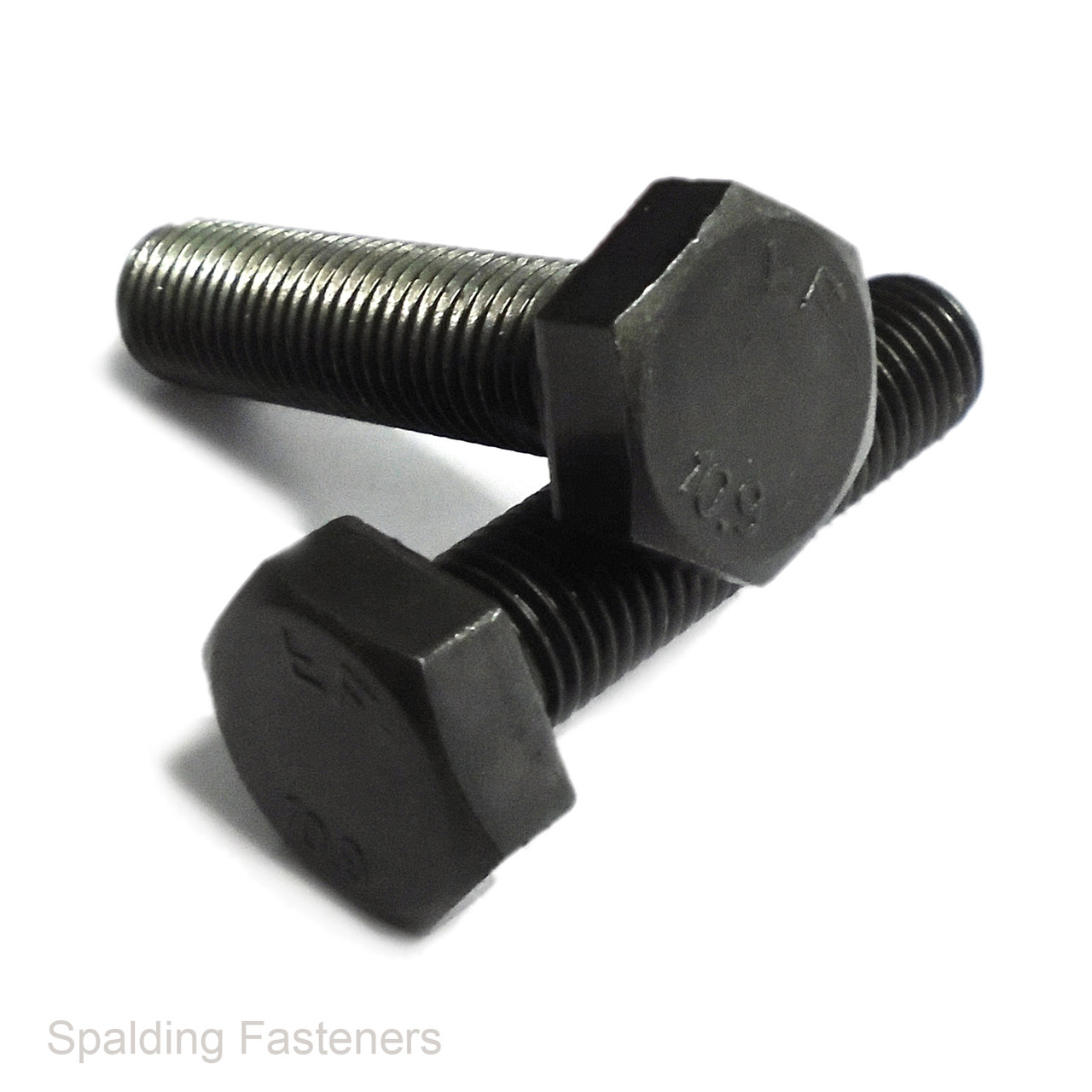

M16 10.9 Self Colour Fully Threaded Hex Bolts DIN 933
M16 metric coarse fully threaded hexagon head bolts in high tensile steel, property class 10.9, with a self colour finish. Also known as hexagon set screws, these fasteners suit assemblies using matching nuts or tapped holes.
Specifications
| Feature | Specification |
|---|---|
| Thread size | M16 |
| Thread pitch | 2mm coarse |
| Property class | 10.9 |
| Material | High tensile steel |
| Finish | Self colour, unplated |
| Head type | External hexagon |
| Spanner size | 24mm across flats |
| Nominal head height | 10mm |
| Thread coverage | Fully threaded |
| Dimensional standard | DIN 933 |
Available Lengths
30, 35, 40, 45, 50, 55, 60, 65, 70, 75, 80, 90, 100, 130, 140 and 150mm. Length is measured from beneath the head to the tip.
Key Features
- High tensile 10.9 grade steel
- M16 x 2mm metric coarse thread
- Fully threaded DIN 933 pattern
- External hexagon for spanner or socket installation
- Self colour finish without zinc plating
Self colour steel can rust when exposed to moisture. Choose suitable corrosion protection for the installation and use nuts and washers of an appropriate strength.
BS EN ISO 4017 is the related British-adopted standard for hexagon head screws. This listing specifies DIN 933; full BS EN ISO 4017 compliance is not verified.
Related Products and Guides
Specifications are intended as a guide. Confirm the required length, thread pitch and head dimensions before ordering where these are critical.
