Product Description

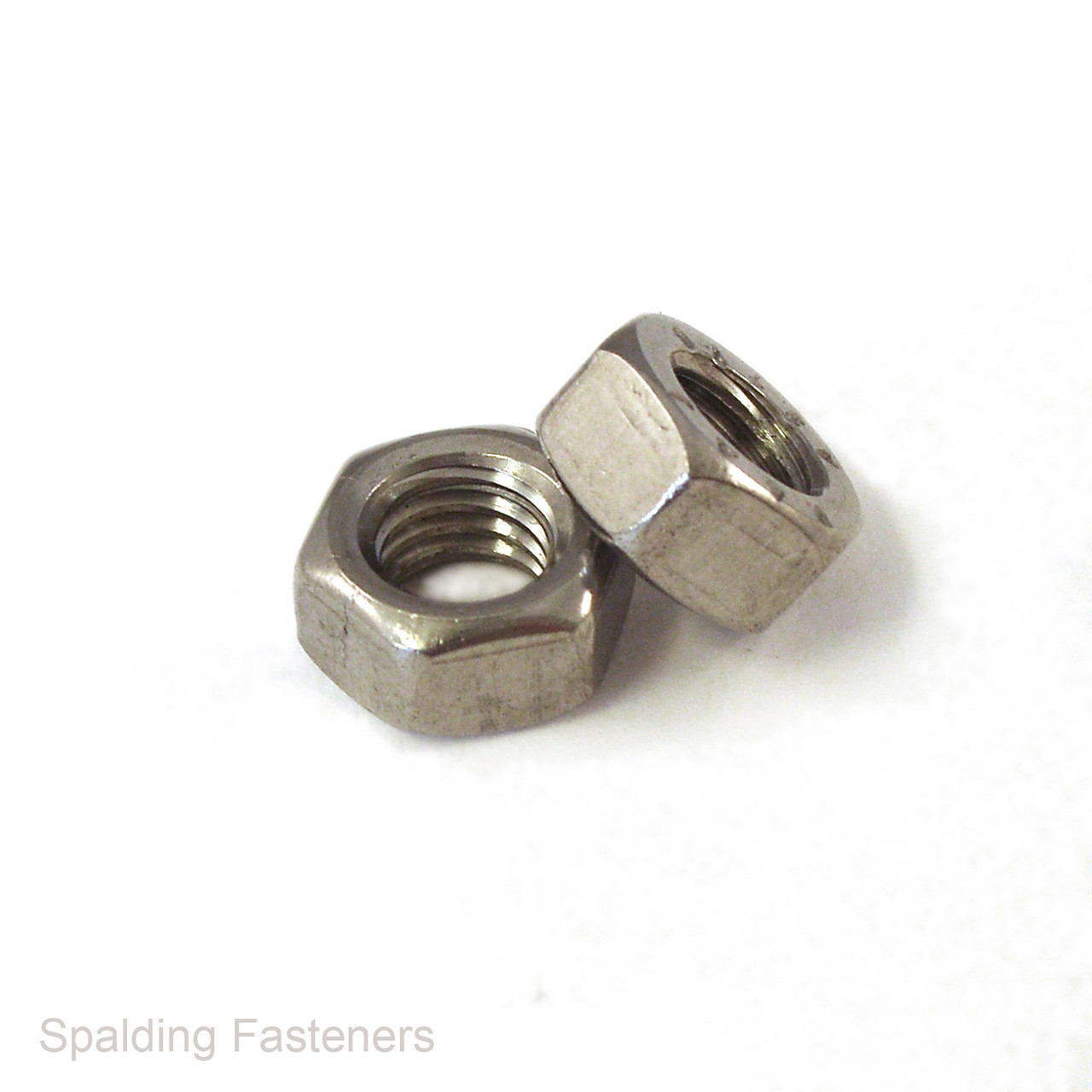

UNF A4 stainless steel hexagon full nuts to ASME B18.2.2 for corrosion resistant fastening applications. These full pattern hex nuts are suitable for marine, automotive, engineering, restoration and general workshop use where UNF thread fasteners are required.
Manufactured from A4 marine grade stainless steel with UNF thread, these hexagon full nuts are ideal for repairs, maintenance and new assembly work in applications where a high level of corrosion resistance is needed. Suitable for use with matching UNF threaded screws, bolts and studs.
Please select the required UNF thread size and pack quantity from the dropdown options. Specifications are intended as a guide only, so if dimensions are critical it is best to check before ordering.
Thread Type: UNF
Standard: ASME B18.2.2
Material: A4 316 Stainless Steel
Grade: Marine Grade
Nut Type: Hexagon Full Nut
| A | B | C | D |
| 1/4" | 7/16" | 7/32" | 28 |
| 5/16" | 1/2" | 17/64" | 24 |
| 3/8" | 9/16" | 21/64" | 24 |
| 7/16" | 11/16" | 3/8" | 20 |
| 1/2" | 3/4" | 7/16" | 20 |
| 5/8" | 15/16" | 35/64" | 18 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
