Product Description

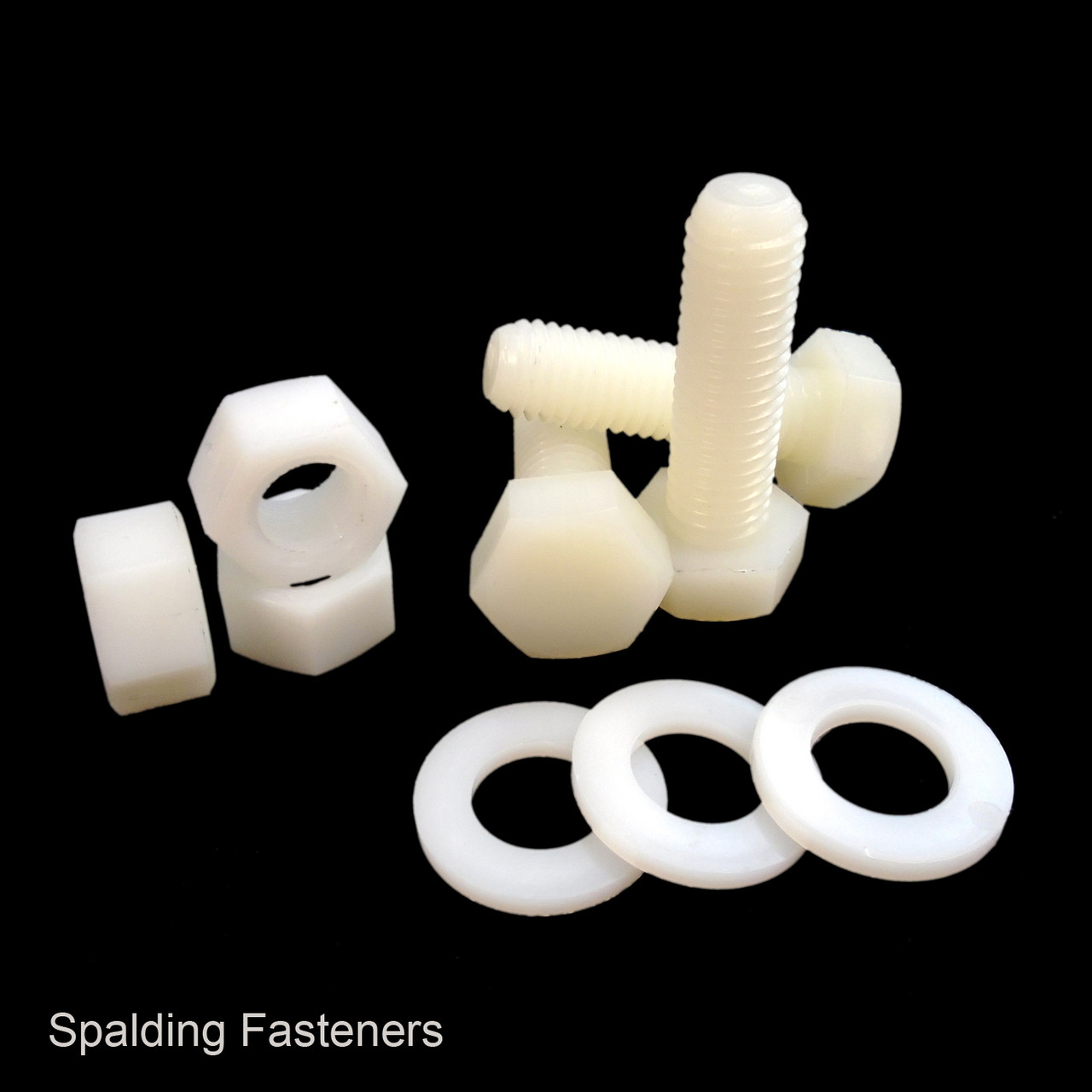

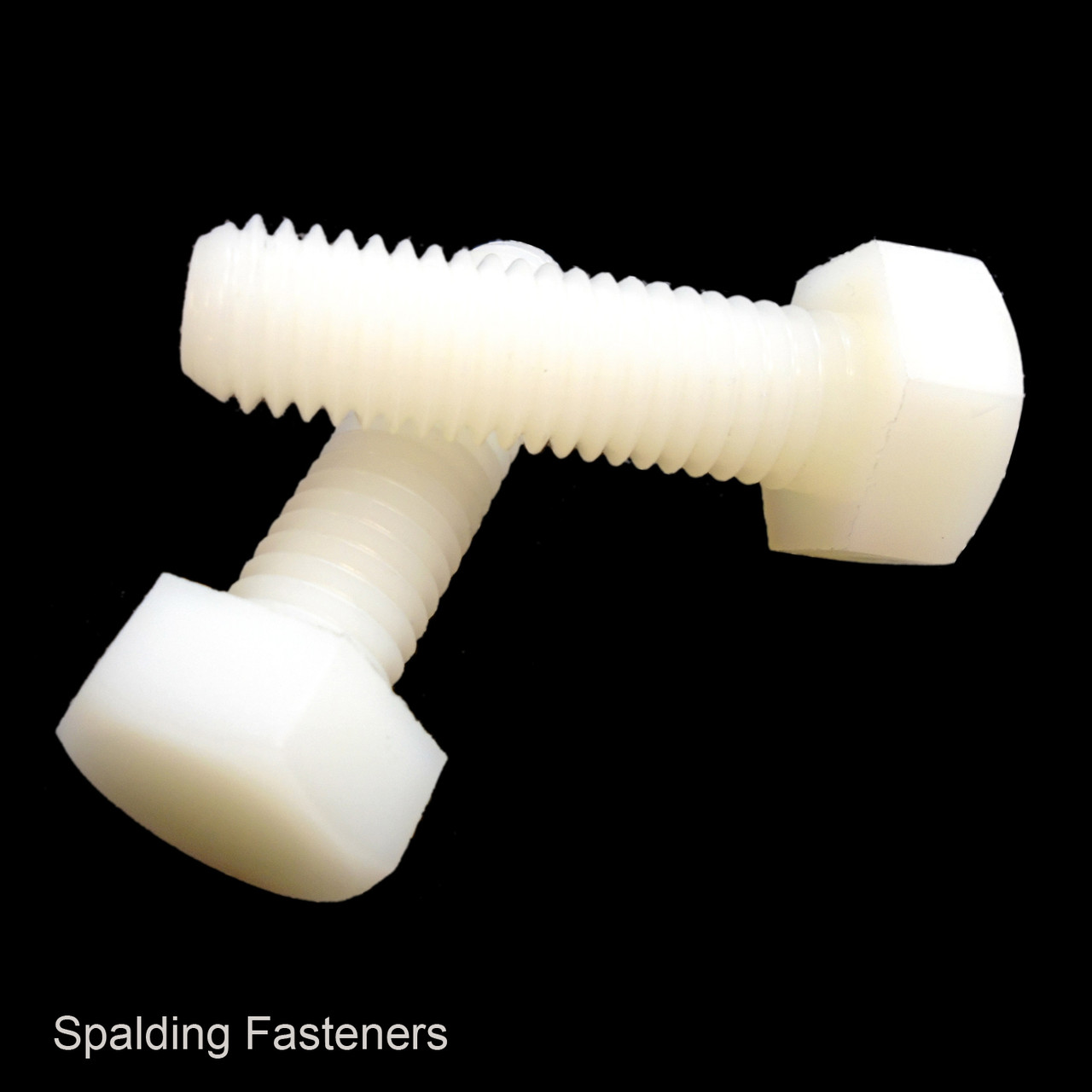

M6 Metric Nylon Plastic Bolts With Nuts and Washers
M6 nylon plastic bolts supplied with matching nuts and washers. These lightweight fasteners are suitable for light-duty assemblies where a non-metallic fixing is required.
Specifications
| Feature | Specification |
|---|---|
| Thread Size | M6 |
| Thread Pitch | 1mm metric coarse |
| Material | Clear nylon |
| Head Style | Hexagon |
| Bolt Head Across Flats | 10mm |
| Bolt Head Height | 4mm |
| Included Components | Matching nuts and washers |
Available Lengths
| Thread Size | Bolt Length |
|---|---|
| M6 x 1mm | 20mm |
| M6 x 1mm | 25mm |
| M6 x 1mm | 30mm |
| M6 x 1mm | 40mm |
| M6 x 1mm | 50mm |
Key Features
- Lightweight nylon construction
- Matching nuts and washers included
- Hexagon head for spanner or socket tightening
- Metric coarse threads
- Five listed bolt lengths
Standards Reference
The listed bolt head dimensions are consistent with the M6 DIN 933 pattern. This is a dimensional reference for the nylon bolt. Individual DIN numbers for the supplied nuts and washers, and a specific nylon material grade, are not identified on the product page.
Installation
Measure bolt length from beneath the head to the tip. Allow for the thickness of the components, washers and nut when selecting a length. Tighten gently with a correctly fitting tool to avoid stripping or deforming the nylon threads.
Related Products
- M5 Nylon Bolts With Nuts and Washers

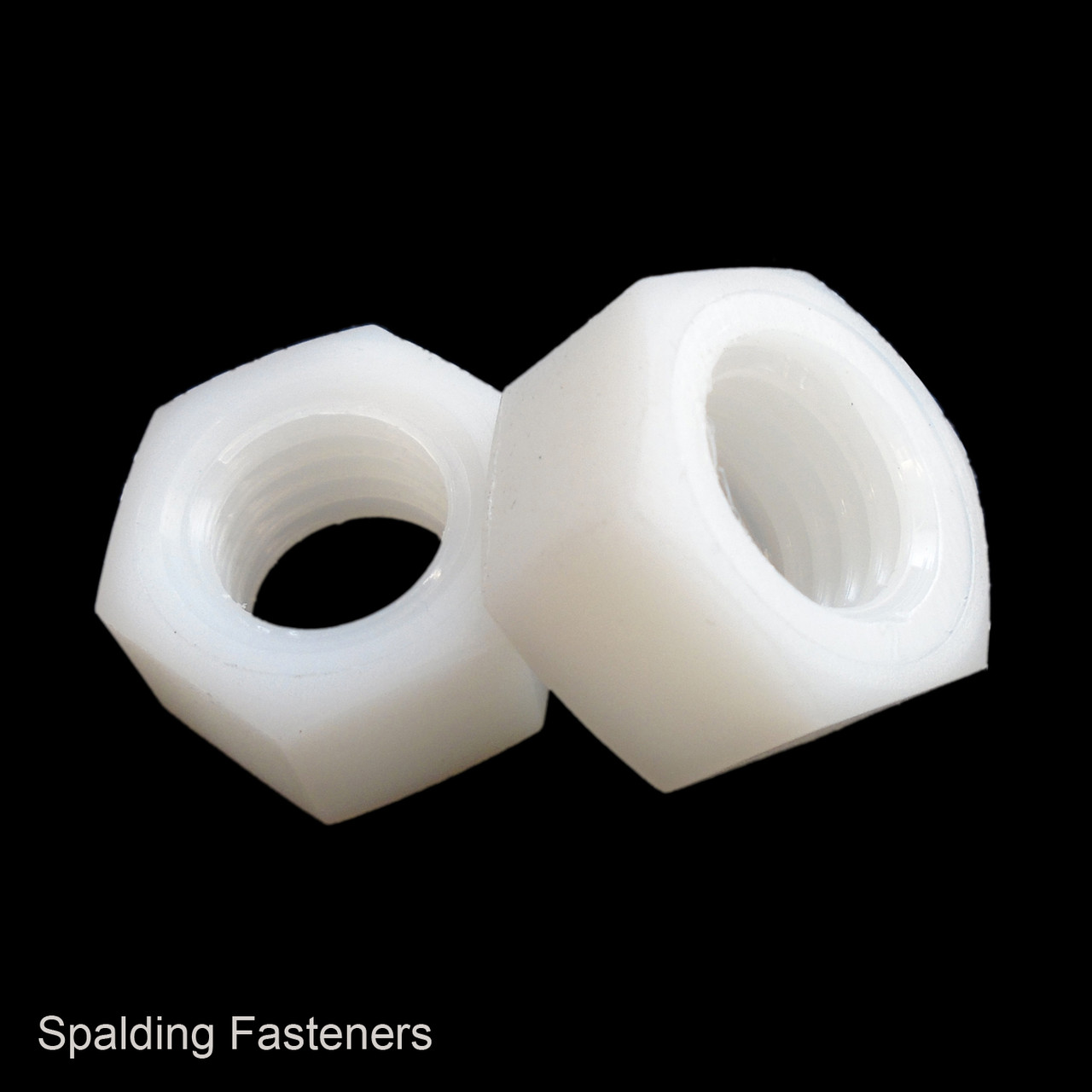

- Metric Nylon Full Nuts

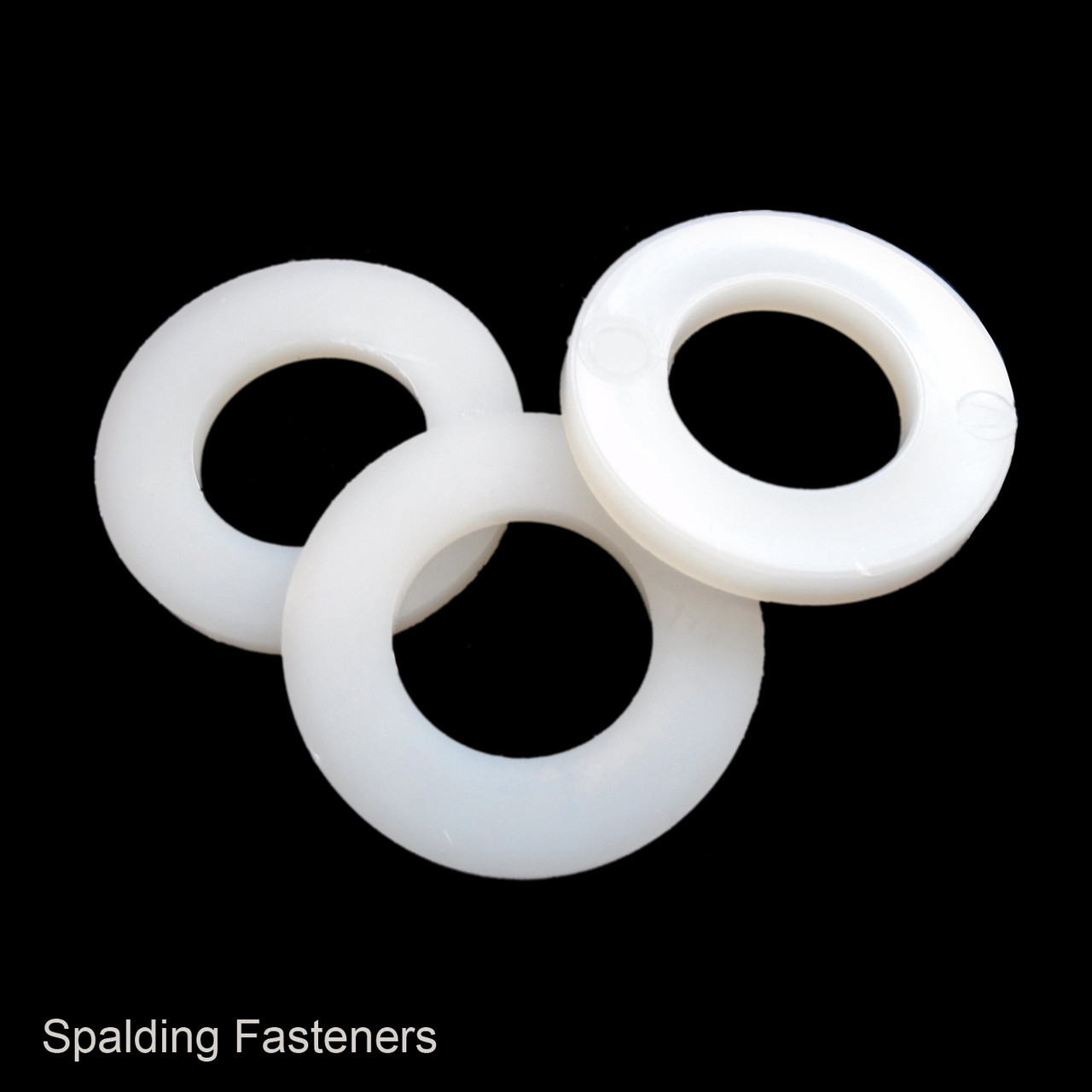

- Metric Nylon Flat Washers
- Thread Size Guide
Specifications are intended as a guide. Confirm the required thread, length and suitability for the application before ordering.
| A | B | C | D | E |
| 6mm | 20mm | 10mm | 4mm | 1mm |
| 6mm | 25mm | 10mm | 4mm | 1mm |
| 6mm | 30mm | 10mm | 4mm | 1mm |
| 6mm | 40mm | 10mm | 4mm | 1mm |
| 6mm | 50mm | 10mm | 4mm | 1mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
