Product Description

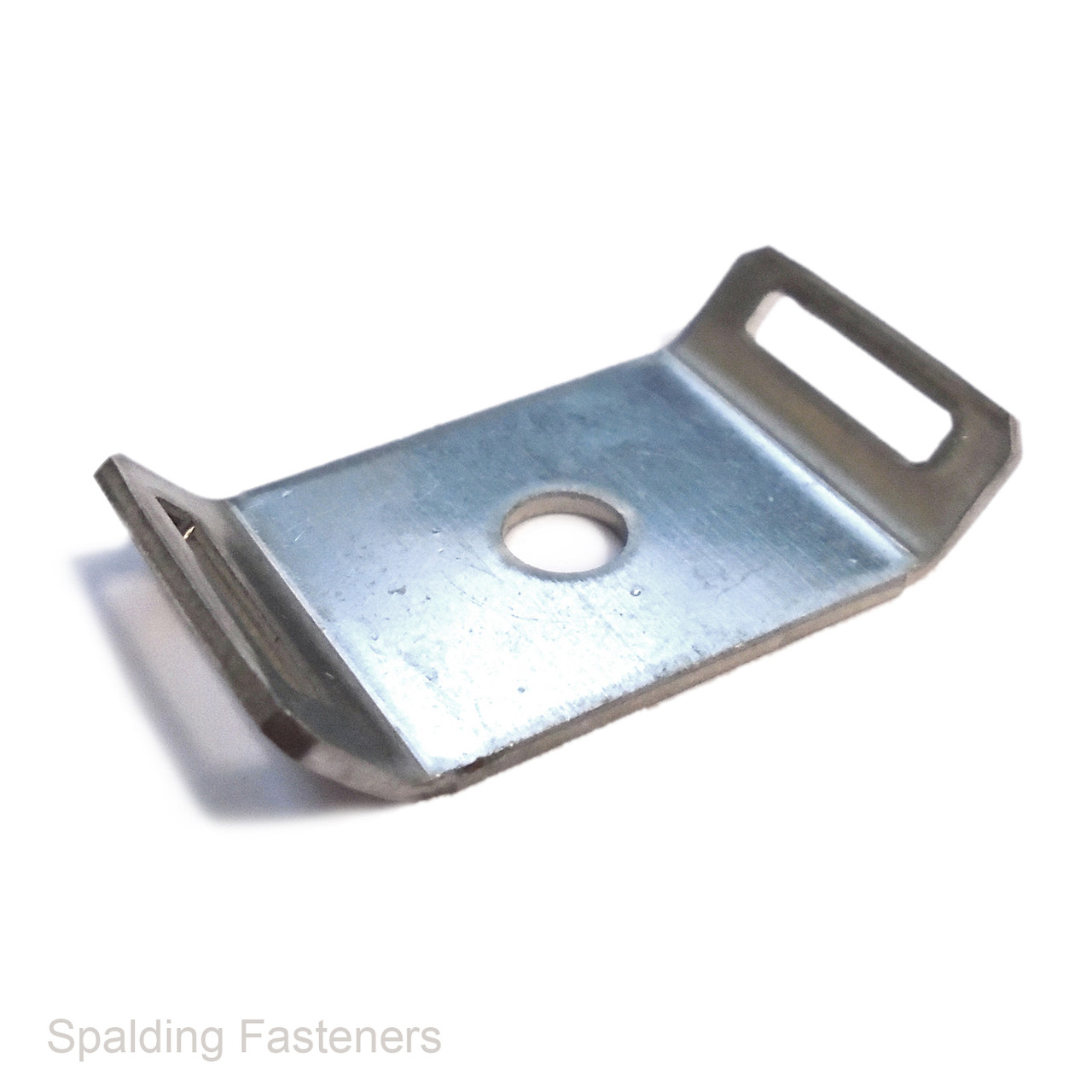

Stainless Steel Anchor Saddle Mounting Cable Tie Bases
Stainless steel saddle mounting bases provide a fixing point for cable ties when securing and routing cable bundles. Choose from 4mm or 6mm mounting hole options, each accepting cable ties up to 8mm wide.
Available Sizes
| Mounting Hole Size | Base Length | Base Width | Material Thickness | Maximum Cable Tie Width |
|---|---|---|---|---|
| 4mm | 28mm | 15mm | 1.1mm | 8mm |
| 6mm | 28mm | 15mm | 1.1mm | 8mm |
Key Features
- Stainless steel construction
- Anchor saddle design for cable tie mounting
- Choice of two fixing hole sizes
- Compact base footprint
- Accepts cable ties up to 8mm wide
- Supplier-listed base temperature range: -80 to +538 degrees C
Please contact us before ordering to confirm material grade and compliance certification availability.
Installation
Secure the base using a fixing suitable for the mounting hole and supporting surface. Pass a compatible cable tie through the saddle and around the cable bundle, then tension without damaging the cable insulation.
The listed temperature range applies to the stainless steel base. Select cable ties, cables and fixings suitable for the operating conditions of the complete assembly.
Related Products
Specifications are intended as a guide. Confirm the mounting hole size, cable tie width and suitability for your application before ordering.
