Product Description

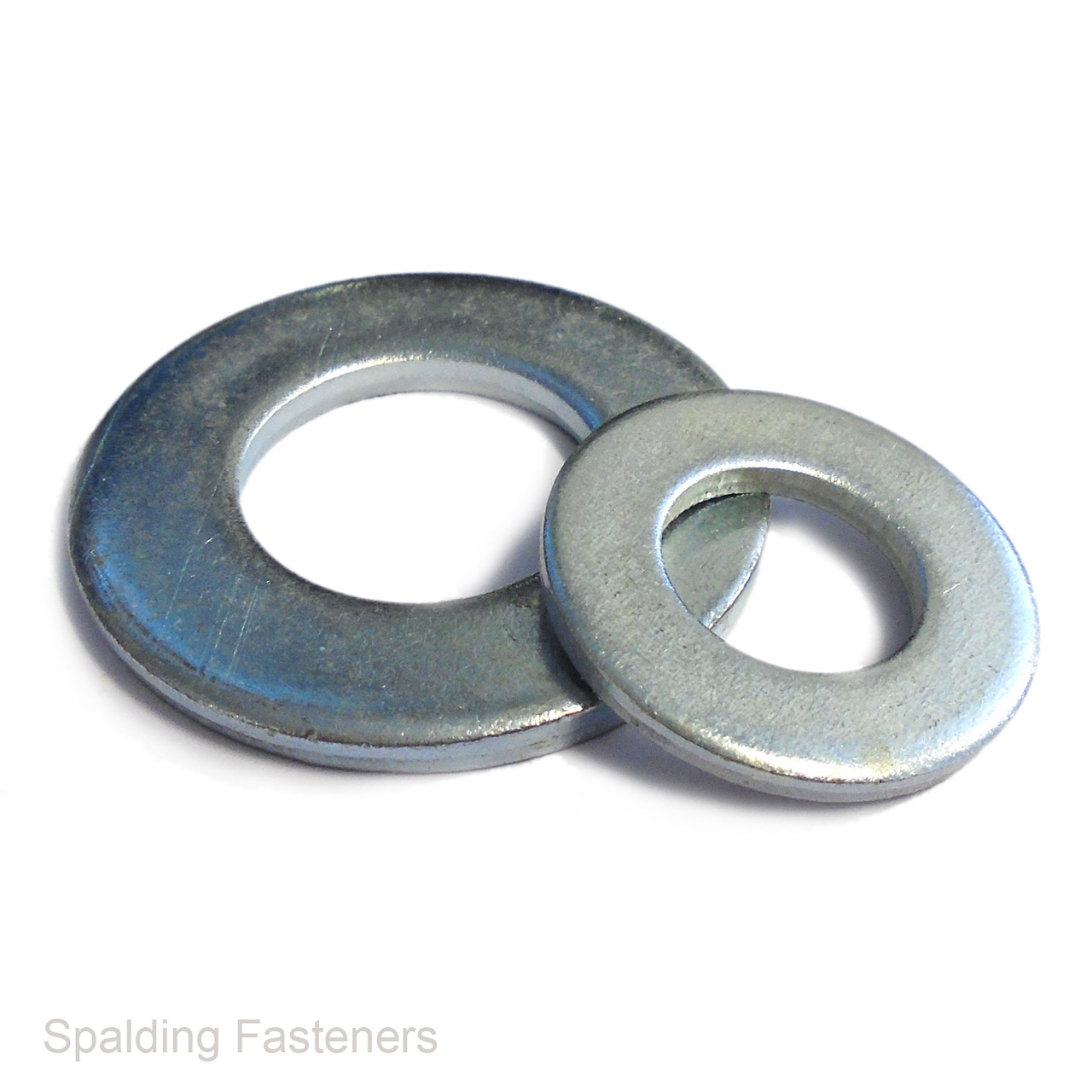

Imperial Zinc Plated Steel Table 4 Light Washers
Imperial steel flat washers with a zinc plated finish, supplied in the Table 4 light pattern. These washers spread the clamping load beneath a bolt head or nut and help protect the mating surface during tightening.
Specifications
| Specification | Details |
|---|---|
| Material | Steel |
| Finish | Zinc plated |
| Washer Type | Plain flat washer |
| Pattern | Table 4 light |
| Size System | Imperial |
| Standard Reference | BS 3410 Table 4, light series |
Available Sizes
| Nominal Size | Listed Outside Diameter | Listed Thickness |
|---|---|---|
| 3/16 inch | 0.49 inch | 0.04 inch |
| 1/4 inch | 0.62 inch | 0.04 inch |
| 5/16 inch | 0.75 inch | 0.05 inch |
| 3/8 inch | 0.87 inch | 0.05 inch |
| 7/16 inch | 1.00 inch | 0.05 inch |
| 1/2 inch | 1.12 inch | 0.05 inch |
| 5/8 inch | 1.36 inch | 0.07 inch |
| 3/4 inch | 1.62 inch | 0.07 inch |
| 1 inch | 2.10 inch | 0.09 inch |
Key Features
- Steel construction with zinc plated finish
- Table 4 light pattern
- Plain flat bearing surface
- Helps distribute clamping load
- Choice of nine imperial nominal sizes
BS 3410 is the British Standard reference for this imperial washer pattern. Please contact us before ordering to confirm compliance certification availability.
Installation
Select the nominal size to suit the bolt or screw, and check that the washer clears the shank and sits flat against the mating surface. Allow for the outside diameter and washer thickness when planning the assembly.
Useful Links
Specifications are intended as a guide. Published dimensions are rounded; confirm exact bore, outside diameter and thickness where critical before ordering.
