Product Description

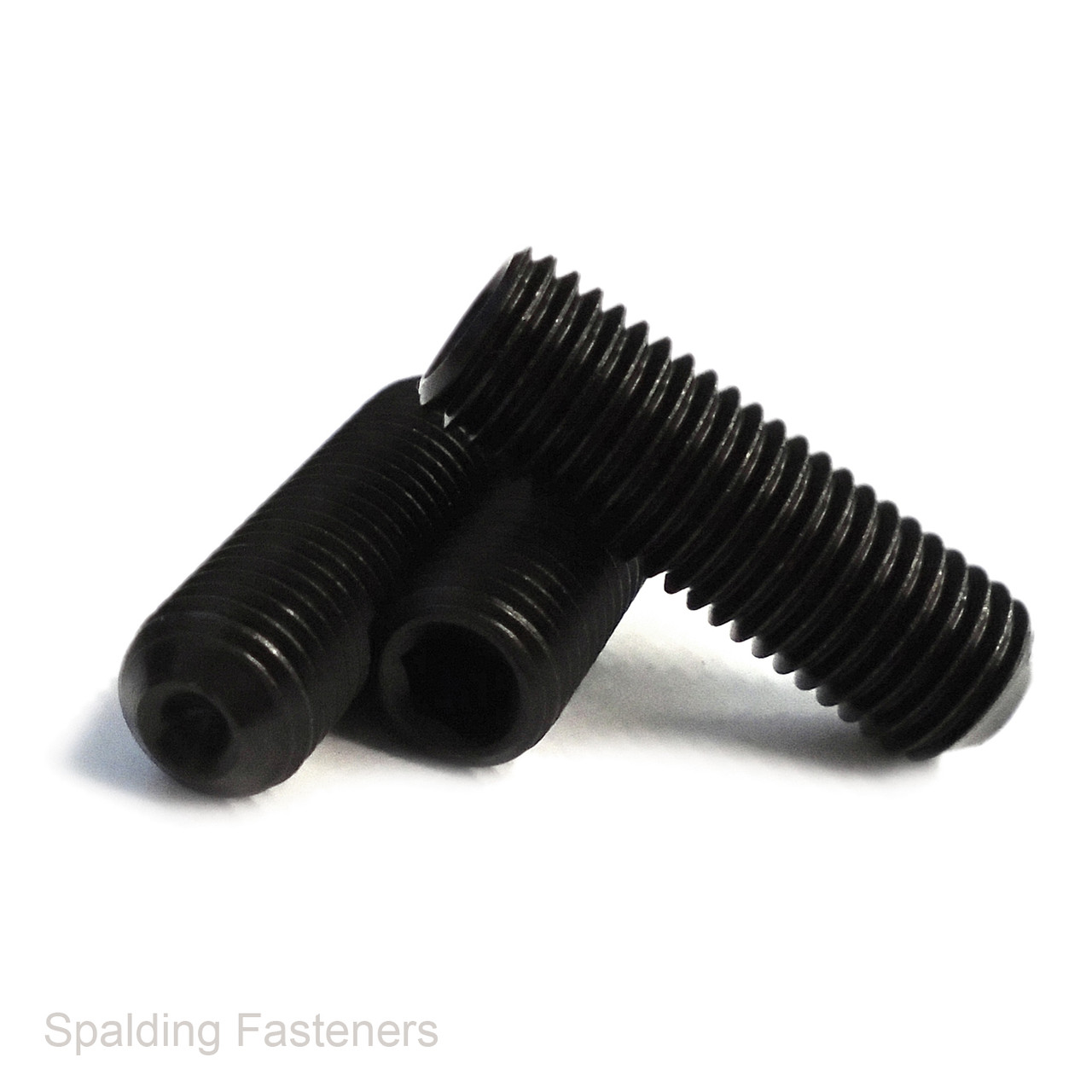

M10 x 1.25 Metric Fine Self Colour Steel Socket Cup Point Grub Screws
Self colour steel grub screws with an M10 x 1.25 metric fine thread, cup point and internal hexagon drive. The headless design allows installation flush with or below the surface of a suitable tapped hole, while the cup point grips the mating component.
Available Sizes
| Thread Size | Screw Length | Hex Key Size |
|---|---|---|
| M10 x 1.25 | 10mm | 5mm |
| M10 x 1.25 | 16mm | 5mm |
| M10 x 1.25 | 20mm | 5mm |
| M10 x 1.25 | 25mm | 5mm |
| M10 x 1.25 | 30mm | 5mm |
Grub screw length is measured end to end.
Key Features
- Self colour steel construction
- M10 metric fine thread with a 1.25mm pitch
- Cup point for gripping the mating surface
- Headless, fully threaded design
- 5mm internal hexagon drive
- Five lengths from 10mm to 30mm
DIN 916 provides a design reference for hexagon socket cup point grub screws. Please contact us before ordering to confirm compliance certification availability.
Install with a 5mm hex key into a matching M10 x 1.25 tapped hole. The cup point may mark the contact surface. Protect the self colour steel from moisture where required.
Related Products
Specifications are intended as a guide. Confirm the required length, thread pitch and point style before ordering.
| A | B | C | D |
| 10mm | 10mm | 5mm | 1.25 |
| 10mm | 16mm | 5mm | 1.25 |
| 10mm | 20mm | 5mm | 1.25 |
| 10mm | 25mm | 5mm | 1.25 |
| 10mm | 30mm | 5mm | 1.25 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
