Product Description
M5 Zinc Plated Grade 10.9 Countersunk Socket Screws – DIN 7991

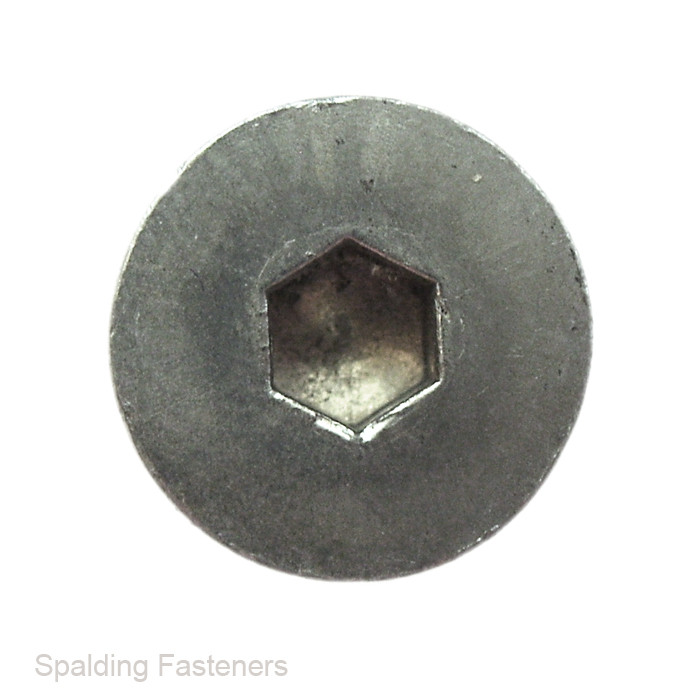

M5 countersunk socket screws in grade 10.9 high tensile steel with a zinc plated finish. The countersunk head sits flush in a correctly prepared countersink, while the internal hex socket allows tightening with a 3mm Allen key.
Suitable for machinery, equipment assembly and general engineering applications requiring a flush fitting. Select your required length and pack size from the available options.
Technical Specifications
| Thread Size | M5 |
|---|---|
| Thread Pitch | 0.8mm – metric coarse |
| Material | High tensile steel |
| Grade | 10.9 |
| Finish | Zinc plated |
| Standard | DIN 7991 |
| Head Style | 90° countersunk |
| Drive | 3mm hex socket / Allen key |
| Head Diameter | 10mm maximum |
| Head Height | 2.8mm maximum |
Measuring Your Screw
Countersunk screw length is measured overall, including the head. Check the required thread size, pitch and overall length before ordering.
Please note: Countersunk head geometry reduces load capacity compared with full-loadability screws of the same material grade. Dimensions are provided as a guide; please contact us if they are critical to your application.
Browse Related Categories
| A | B | C | D | E | F |
| 5mm | 16mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 25mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 35mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 40mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 50mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 10mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 20mm | 10mm | 2.8mm | 3mm | 0.8 |
| 5mm | 30mm | 10mm | 2.8mm | 3mm | 0.8 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
