Product Description
HelaCon Plus Mini Electrical Push-In Wire Connector Terminals
HelaCon Plus Mini wire connectors provide a compact, screwless connection for electrical installation work. The push-in double-spring design accepts suitable solid and stranded conductors without the need to tighten terminal screws.
A transparent housing allows conductor insertion to be checked visually. Colour-coded connector sizes and an accessible voltage test entry help simplify identification and inspection.
Technical Specifications
| Product Range | HelaCon Plus Mini |
|---|---|
| Connection Type | Push-in double-spring connection |
| Housing Material | Polycarbonate |
| Catalogue Current Rating | 24A |
| Catalogue Voltage Rating | 450V |
| Solid Conductor Size | 0.5–2.5mm² |
| Stranded Conductor Size | 1.0–2.5mm² |
| Flexible Fine-Stranded Conductors | Not suitable |
| Insulation Strip Length | 11mm |
| Operating Temperature | -30°C to +85°C |
| Housing Flammability Rating | UL94 V-0 |
Connector Range and Dimensions
| Connector Type | Wire Entries | Identification Colour | Width | Height | Depth |
|---|---|---|---|---|---|

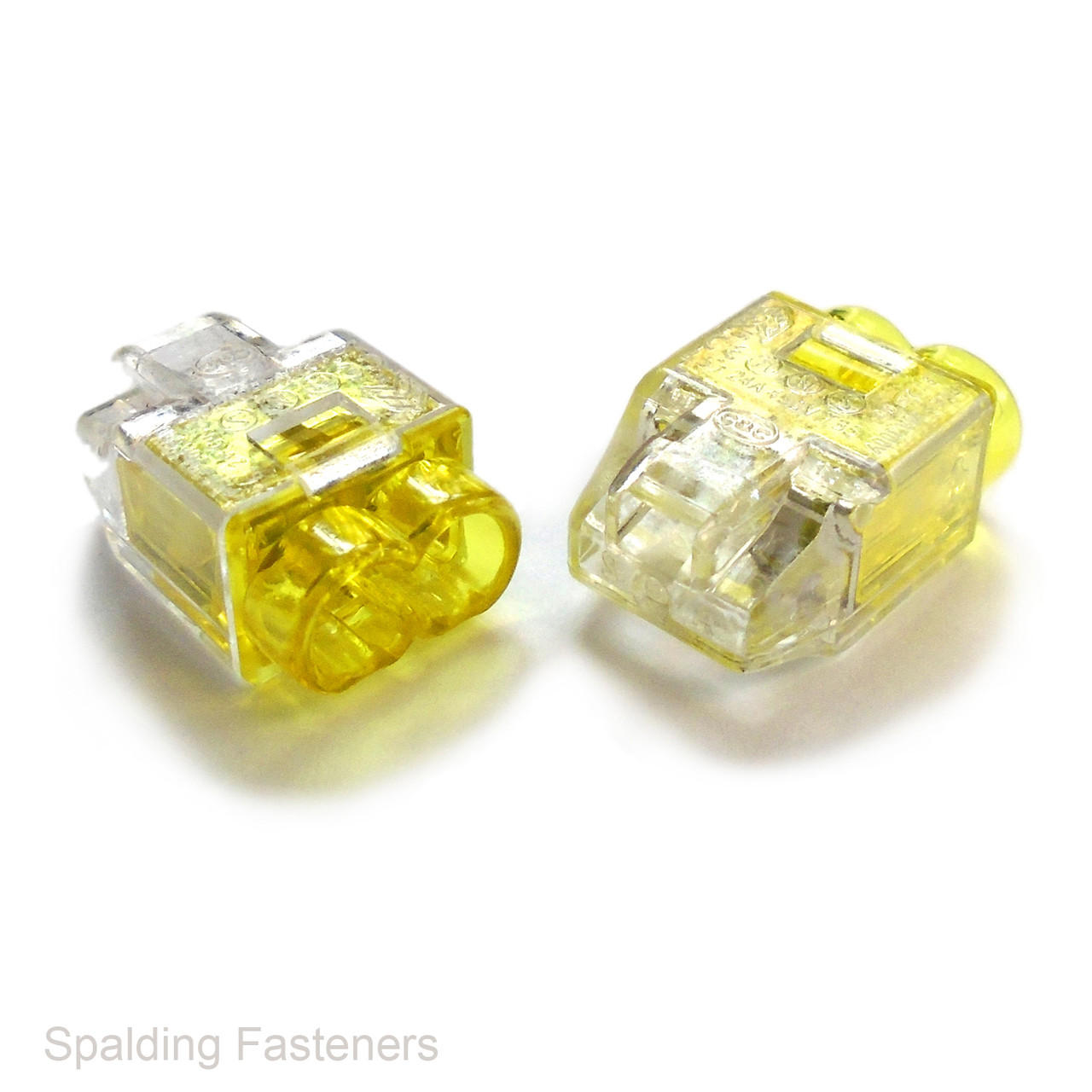

| HCPM-2 | 2 | Yellow | 10.8mm | 7.7mm | 16.5mm |

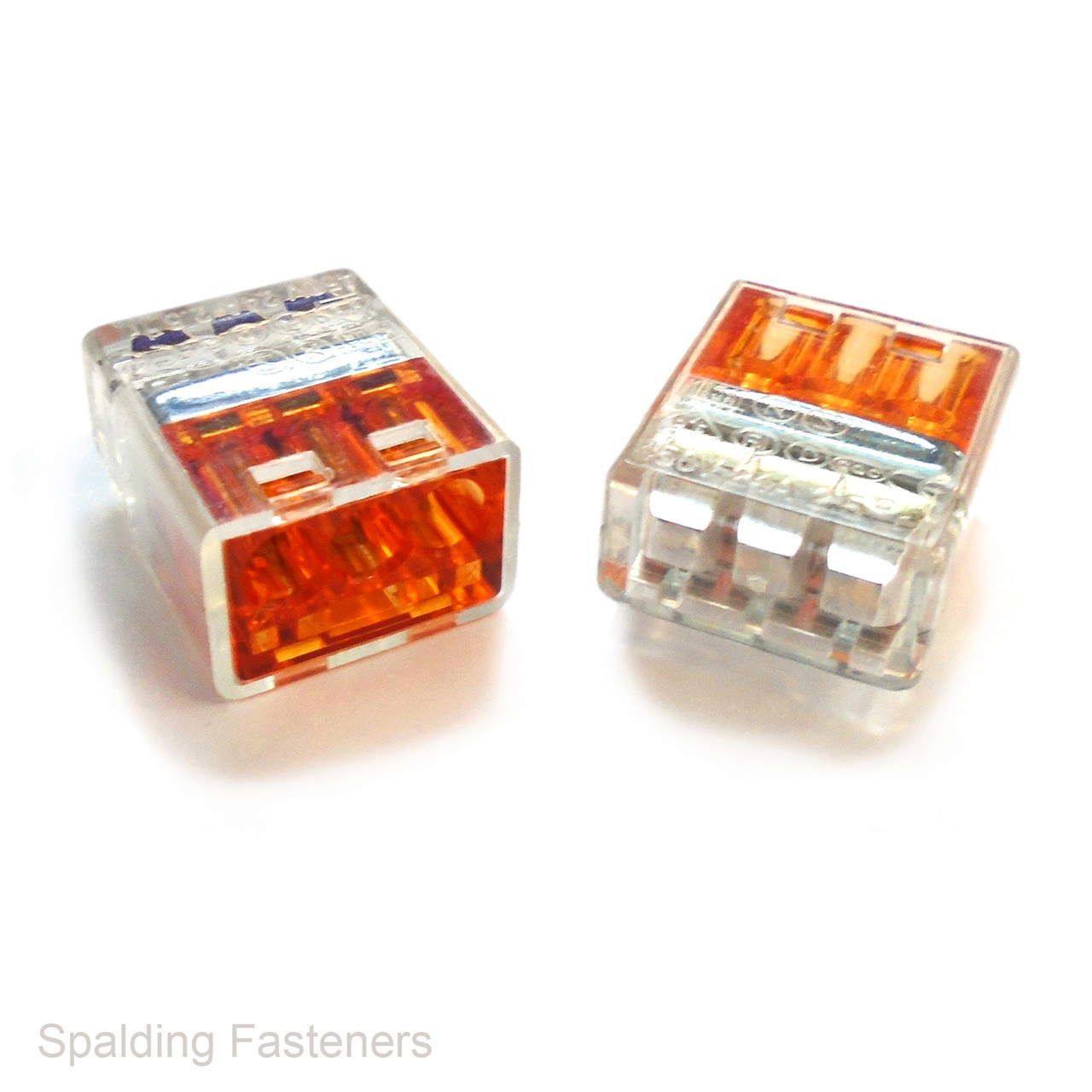

| HCPM-3 | 3 | Orange | 15.1mm | 7.7mm | 16.5mm |

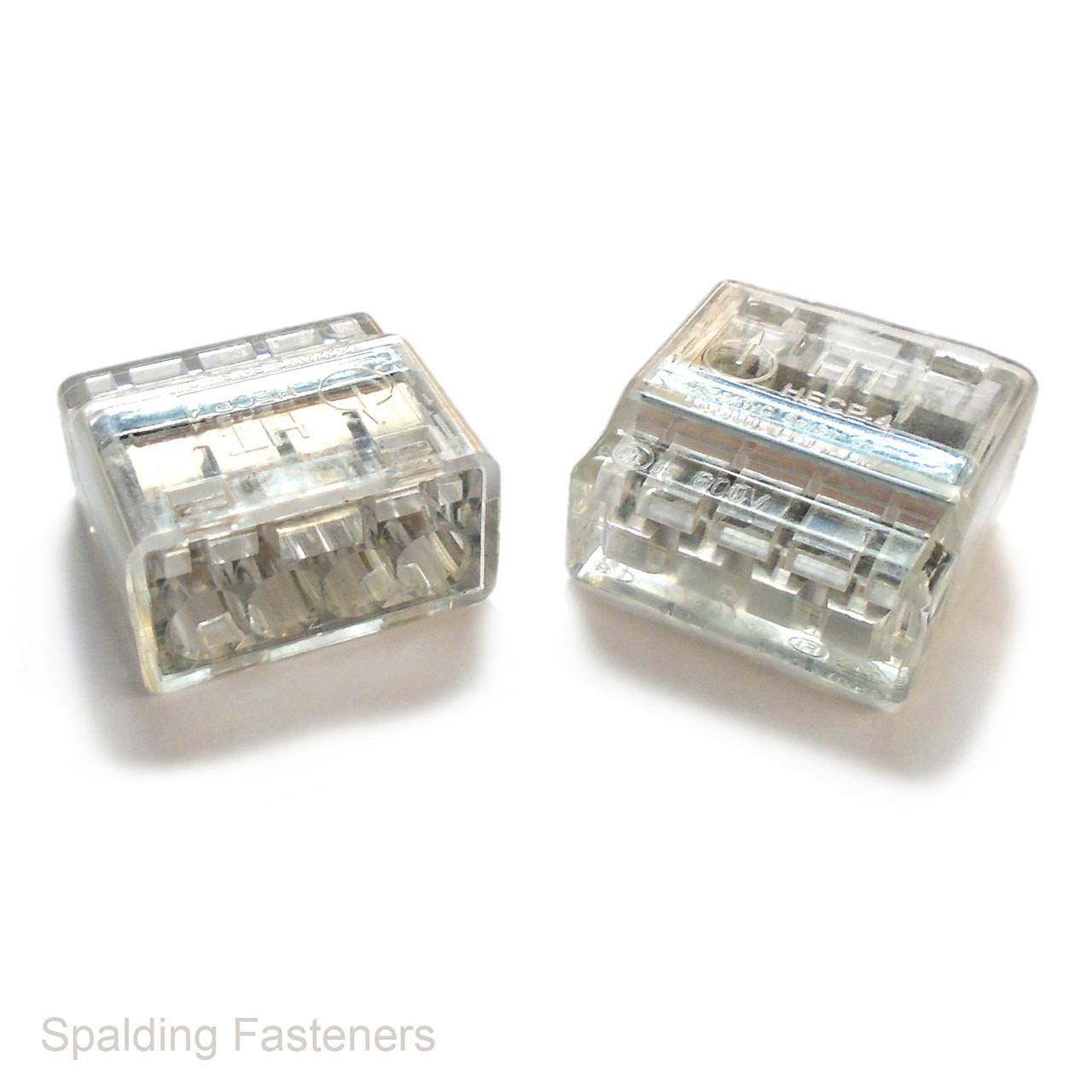

| HCPM-4 | 4 | Transparent | 19.4mm | 7.7mm | 16.5mm |

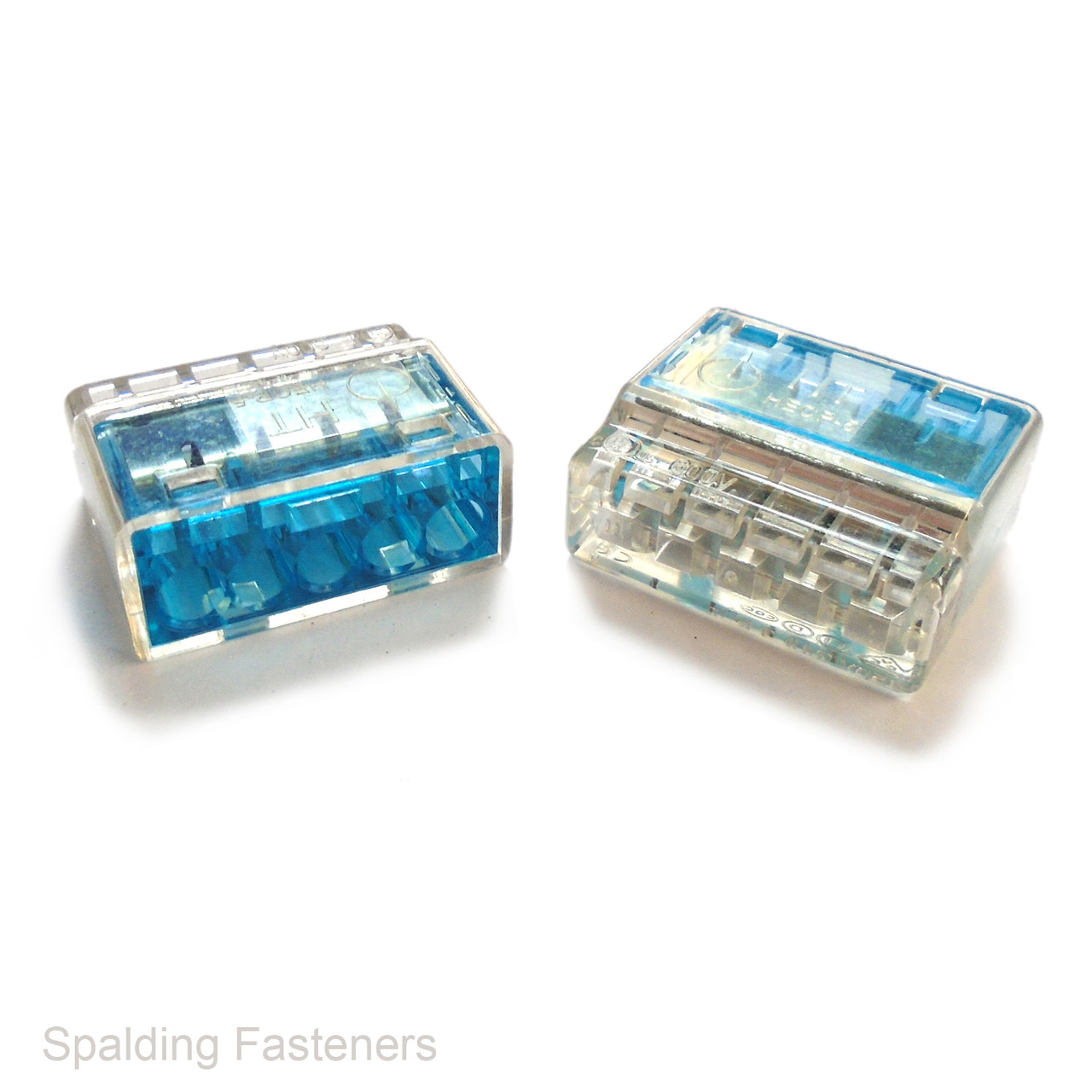

| HCPM-5 | 5 | Blue | 23.7mm | 7.7mm | 16.5mm |

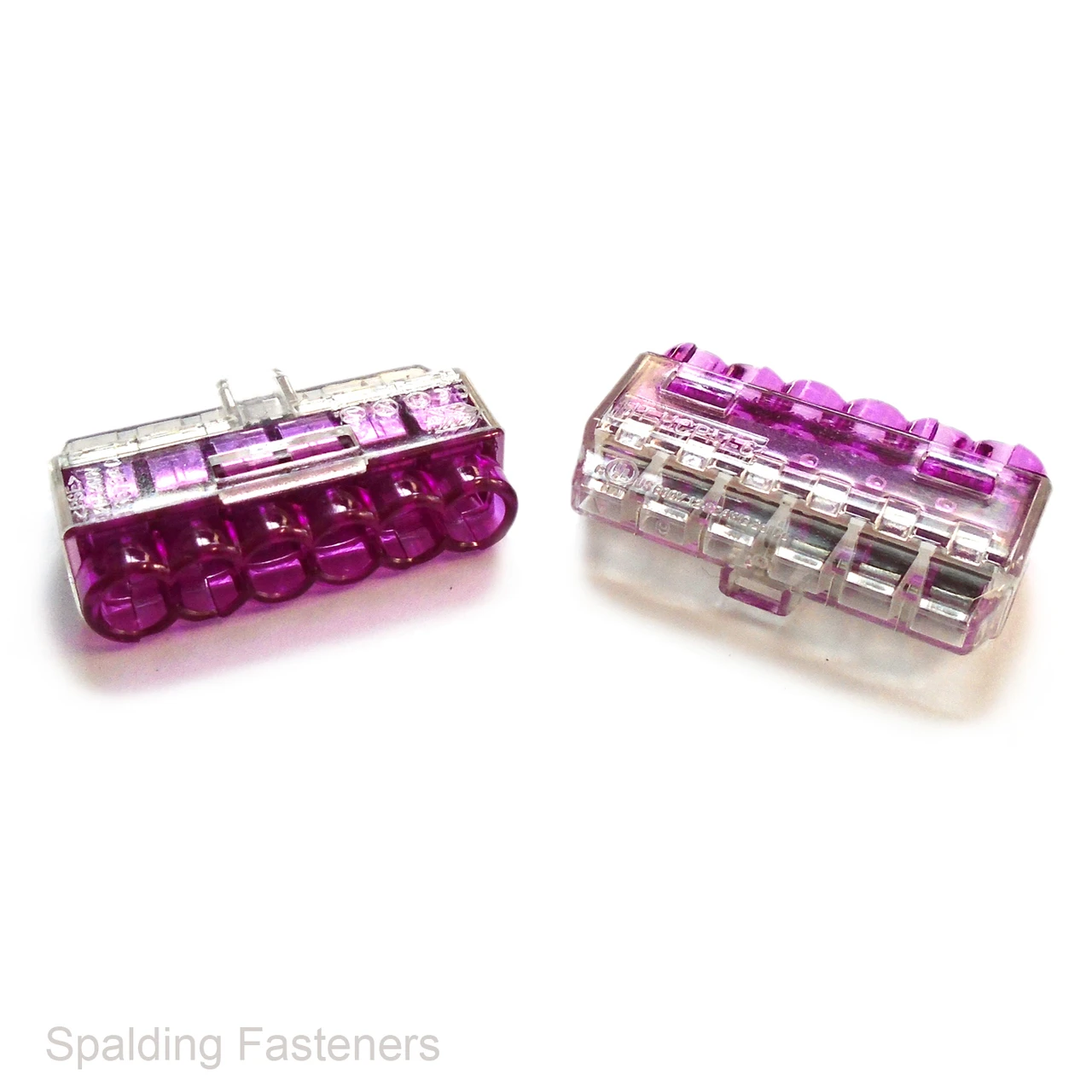

| HCPM-6 | 6 | Violet | 28mm | 7.7mm | 16.5mm |

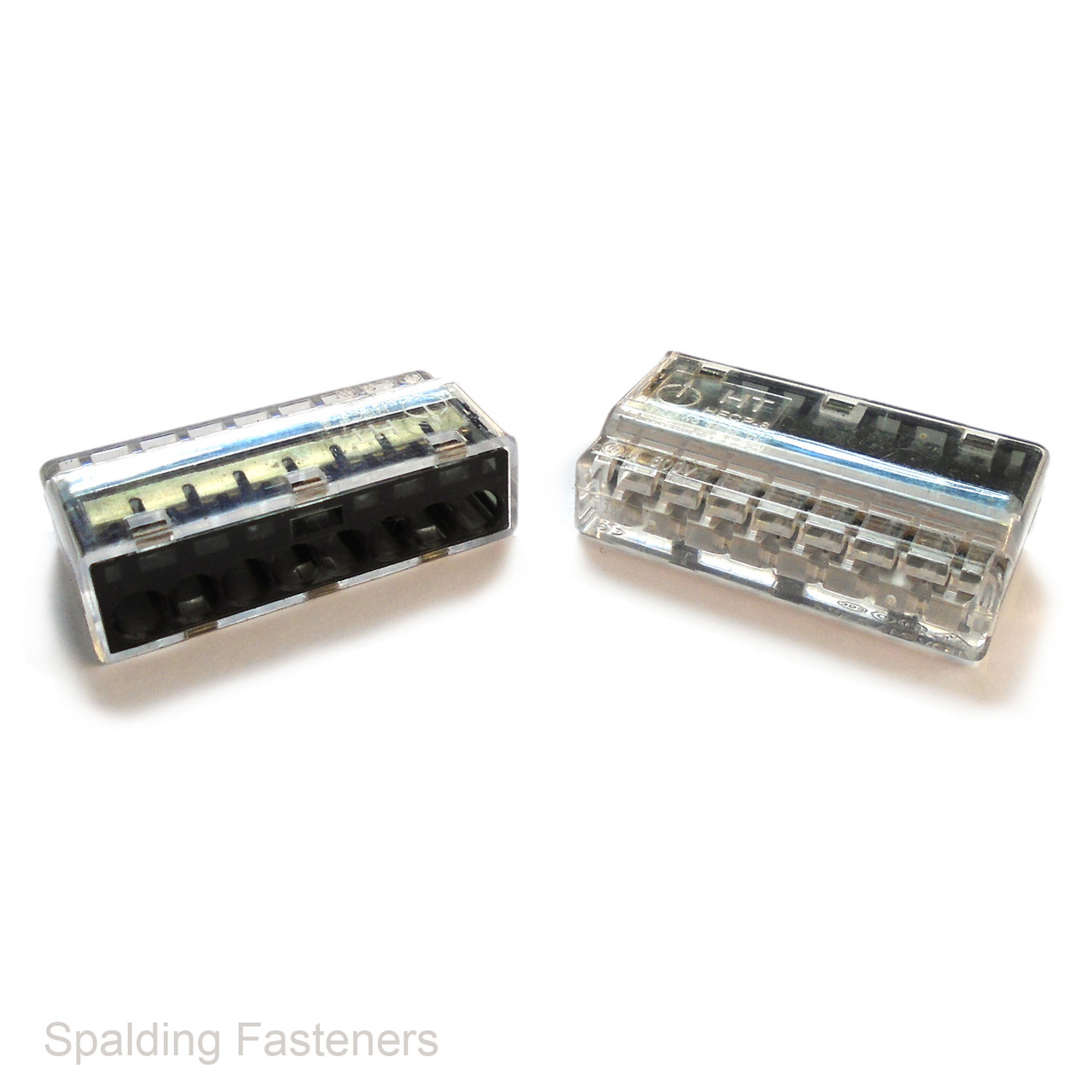

| HCPM-8 | 8 | Black | 36.6mm | 7.7mm | 16.5mm |
The table describes the connector range. Select the required connector and pack size from the available options.
Installation
Isolate the supply before installation. Strip 11mm of insulation and fully insert each suitable conductor into its own entry. Check insertion through the transparent housing and ensure the connection is secure.
All entries within one connector are electrically connected. Use separate connectors for conductors that must remain electrically separate.
Please note: Follow the supplied connector markings and installation instructions. The circuit load must remain within the ratings of both the connector and the connected conductors.
