Product Description

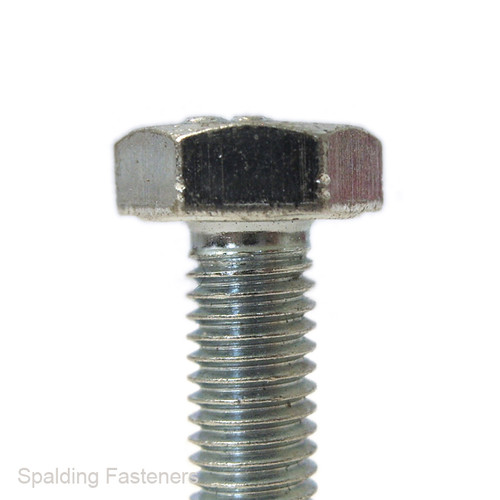

1" UNC Grade 5 High Tensile Zinc Plated Steel Hex Head Bolts
These 1" UNC hexagon head bolts are manufactured from Grade 5 high tensile steel with a zinc plated finish. They feature an 8 TPI coarse thread for use with matching 1"-8 UNC nuts or tapped holes.
Available in 4" and 5" lengths, these bolts suit machinery, maintenance and general engineering assemblies requiring imperial fasteners. The hexagon head allows tightening with a suitable spanner or socket, while the zinc plating helps resist corrosion.
Technical Specifications
| Thread Size | 1"-8 UNC |
|---|---|
| Nominal Thread Diameter | 1" — 25.40 mm |
| Threads Per Inch | 8 TPI |
| Thread Form | Unified National Coarse |
| Material | High tensile steel |
| Grade | Grade 5 |
| Finish | Zinc plated |
| Head Style | Hexagon |
Available Lengths
Bolt length is measured from beneath the head to the end of the bolt. Metric equivalents are provided for reference.
| Imperial Length | Metric Equivalent |
|---|---|
| 4" | 101.60 mm |
| 5" | 127.00 mm |
Selecting Your Bolts
Select the required length and pack quantity from the available options. Allow for the combined thickness of the components and washers, together with sufficient engagement in the matching nut or tapped hole.
Check the thread before ordering. These bolts use a 1"-8 UNC thread and are not interchangeable with 1" UNF or metric fasteners.
If a particular threaded length or head dimension is essential, please contact us to confirm before ordering. Use a correctly fitting spanner or socket and tighten to the equipment or joint specification.
