Product Description

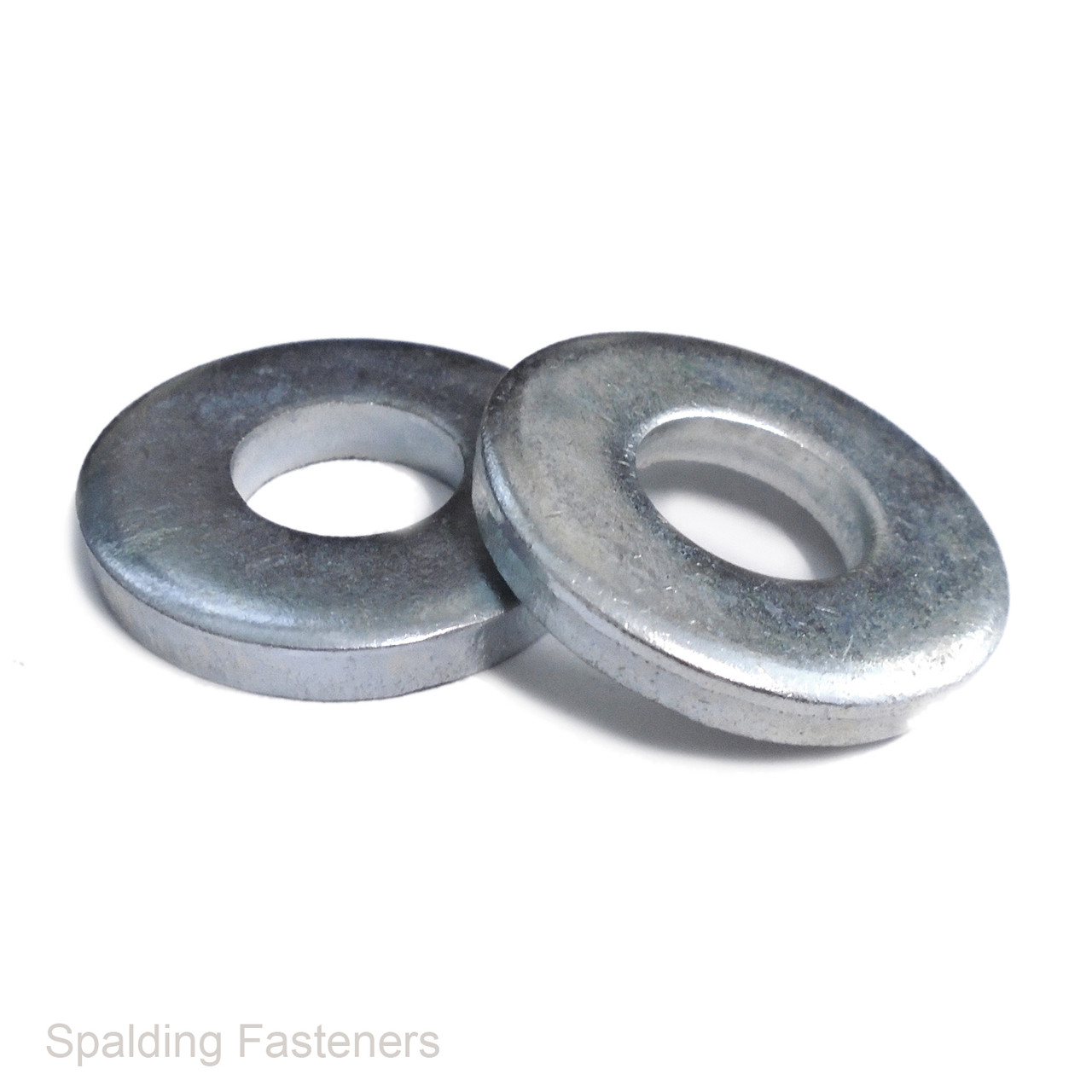

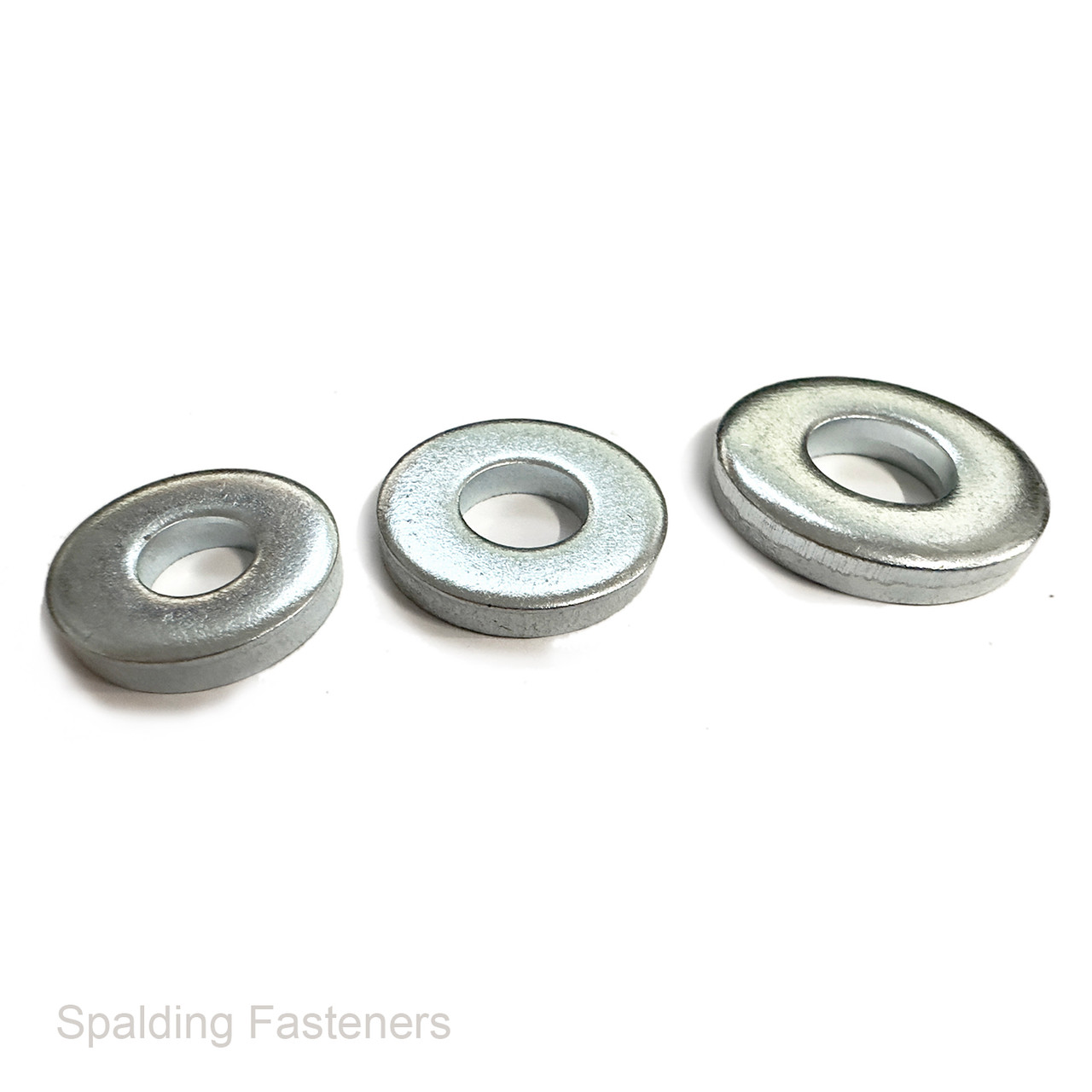

Metric A2 stainless steel extra thick flat washers to DIN 7349, also known as heavy duty flat washers or spacer washers.
These washers are thicker than standard flat washers and are commonly used to spread clamping load, provide spacing and improve support under bolt heads and nuts. Manufactured from A2 stainless steel, also known as 304 stainless steel, they offer good corrosion resistance for general engineering, machinery, maintenance, outdoor and repair applications.
- Metric extra thick flat washers
- A2 stainless steel, also known as 304 stainless steel
- DIN 7349 washer pattern
- Also known as heavy duty flat washers or spacer washers
- Useful for spacing, packing and spreading clamping load
- Suitable for metric bolts, screws, studs and threaded bar
- Available in sizes from M3 to M24
| A | B | C |
| 3mm | 8.6mm | 1mm |
| 4mm | 11.7mm | 1.4mm |
| 5mm | 14.6mm | 2mm |
| 6mm | 16.8mm | 3mm |
| 8mm | 20.7mm | 3.7mm |
| 10mm | 24.7mm | 4mm |
| 12mm | 29.7mm | 5.4mm |
| 14mm | 35.6mm | 5.7mm |
| 16mm | 39.5mm | 5.7mm |
| 18mm | 43.5mm | 7.3mm |
| 20mm | 43.7mm | 7.3mm |
| 24mm | 49.5mm | 9.5mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
