Product Description

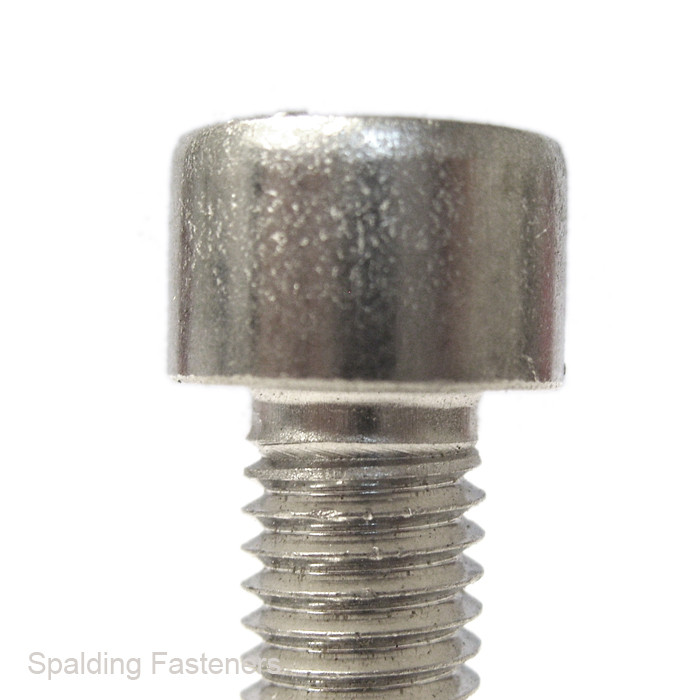

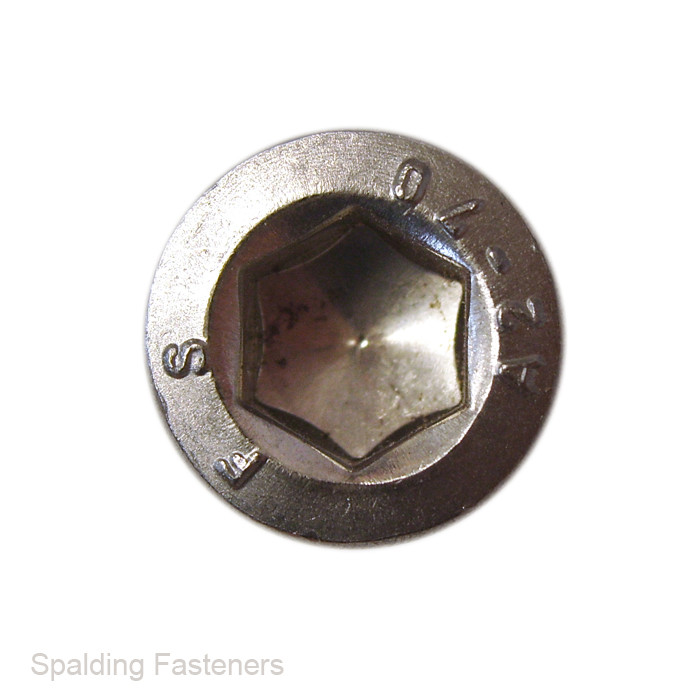

M3.5 Metric A2 Stainless Steel Socket Cap Fully Threaded Set Screws
These M3.5 socket cap set screws are manufactured from A2 stainless steel and feature a fully threaded shank. Their cylindrical cap head has an internal hexagon socket for tightening with a 2.5 mm Allen key.
The M3.5 metric coarse thread has a 0.6 mm pitch. A2 stainless steel provides corrosion resistance for many general engineering, maintenance and assembly applications.
Technical Specifications
| Thread Size | M3.5 |
|---|---|
| Nominal Thread Diameter | 3.5 mm |
| Thread Pitch | 0.6 mm |
| Thread Type | Metric coarse |
| Material | A2 stainless steel |
| Thread Coverage | Fully threaded |
| Head Style | Cylindrical socket cap |
| Head Diameter | 5.82–6.00 mm |
| Head Height | 3.36–3.50 mm |
| Allen Key Size | 2.5 mm |
| Dimensional References | DIN 912 / ISO 4762 |
Available Lengths
| Thread Size | Length |
|---|---|
| M3.5 x 0.6 | 16 mm |
| M3.5 x 0.6 | 20 mm |
| M3.5 x 0.6 | 30 mm |
Screw length is measured from beneath the head to the end of the screw, excluding the head.
Selecting Your Screws
Select the required length and pack quantity from the available options. Use with a matching M3.5 x 0.6 nut or tapped hole and a correctly fitting 2.5 mm Allen key.
Check that the selected length provides sufficient thread engagement and clearance for the cap head. Keep the Allen key fully engaged during tightening to avoid damaging the socket.
Browse Related Categories

| A | B | C | D | E | F |
| 3.5mm | 16mm | 6mm | 3.36mm | 2.5mm | 0.6 |
| 3.5mm | 20mm | 6mm | 3.36mm | 2.5mm | 0.6 |
| 3.5mm | 30mm | 6mm | 3.36mm | 2.5mm | 0.6 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
