Product Description

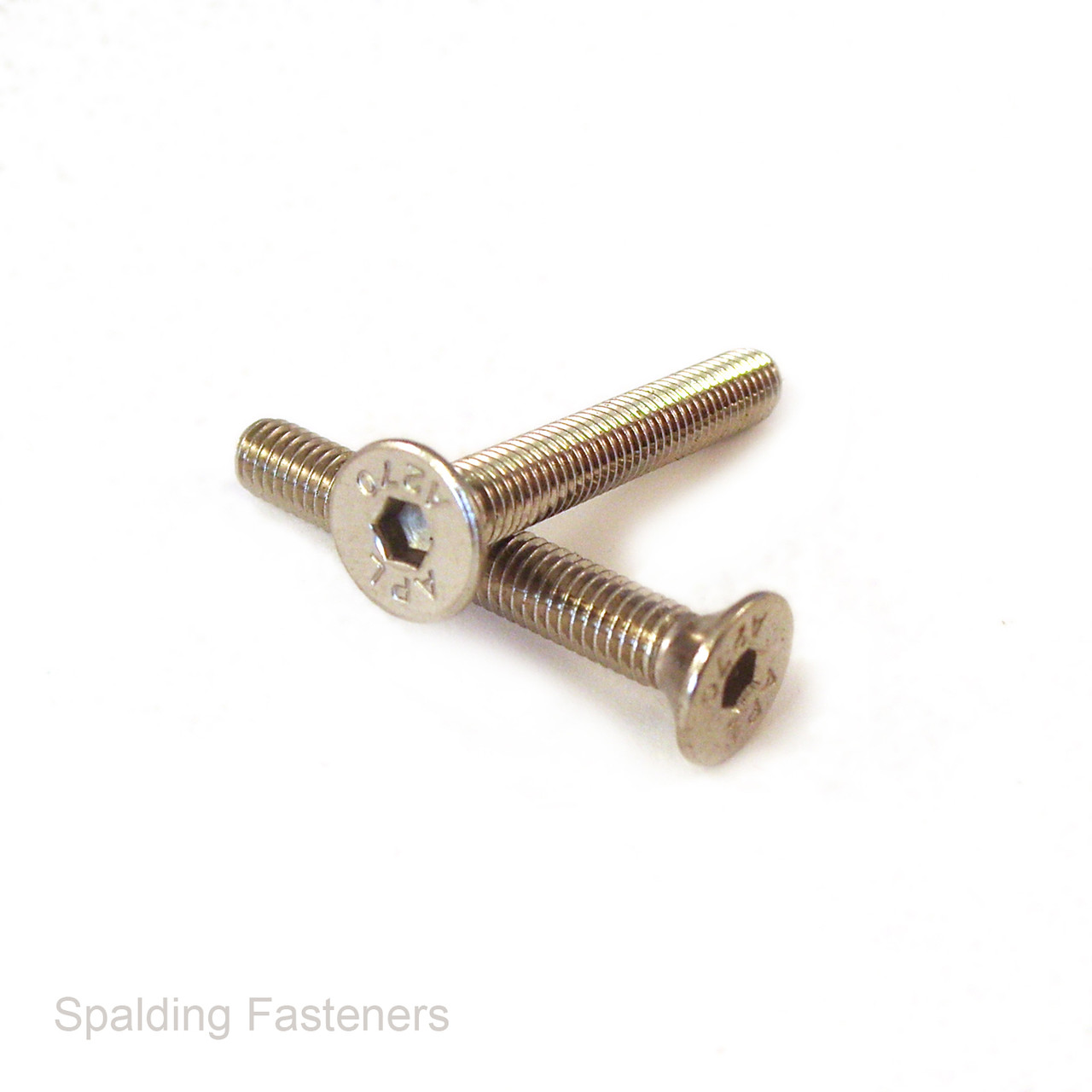

M2.5 Metric A2 Stainless Steel Countersunk Socket Head Set Screws

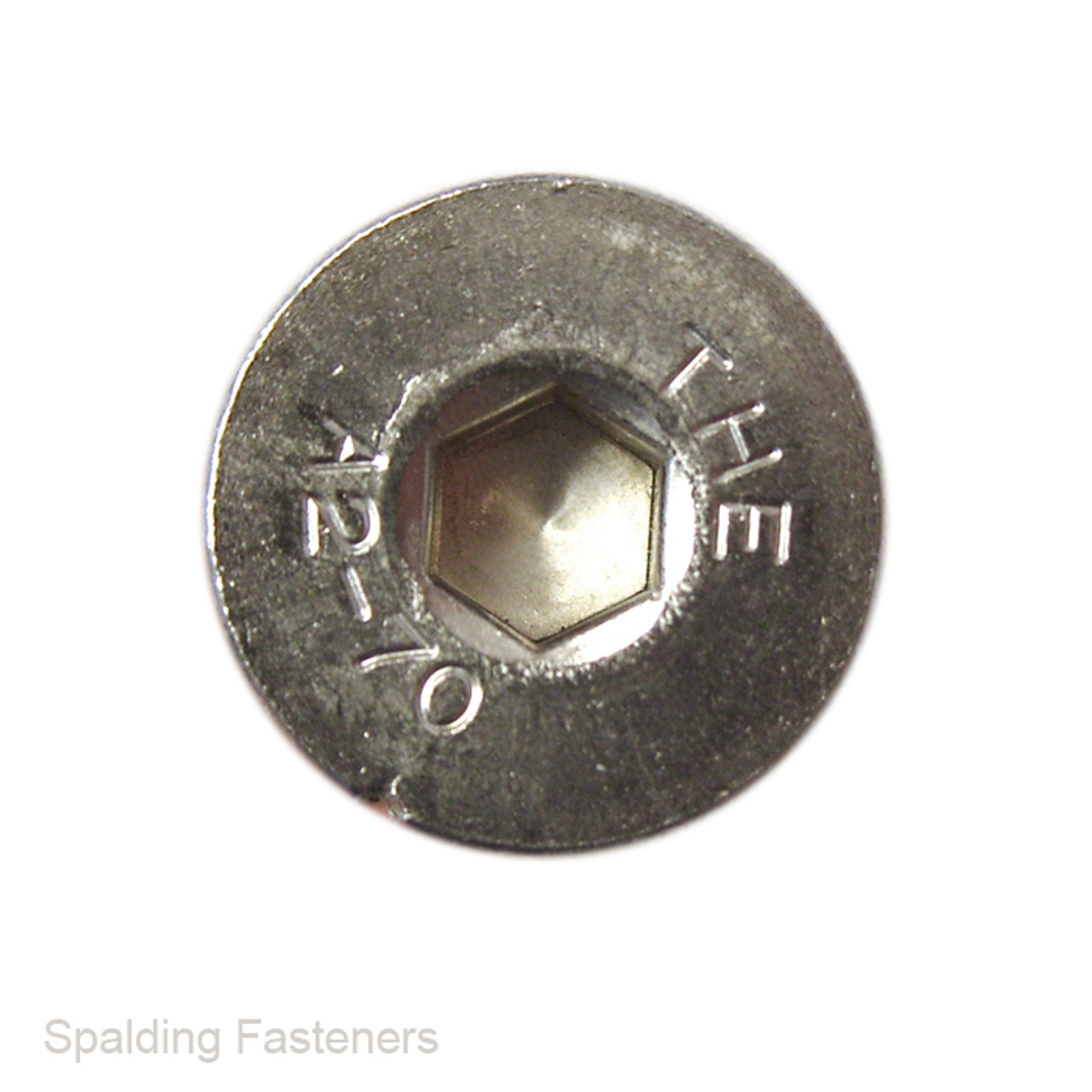

M2.5 countersunk socket head set screws manufactured from A2 stainless steel, listed to DIN 7991. These screws have a metric coarse 0.45mm thread pitch and an internal hexagon socket for a 1.5mm Allen key.

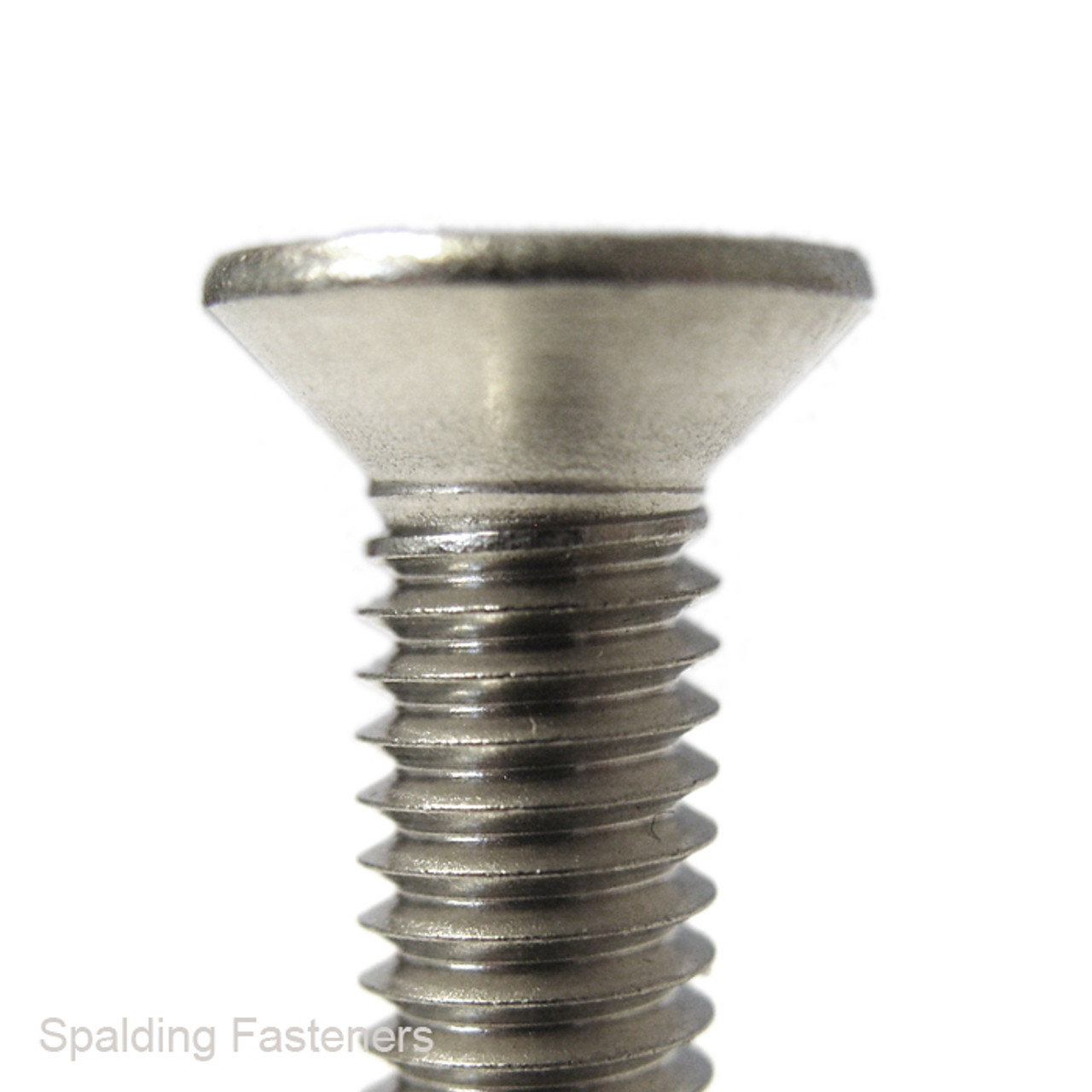

The 90° countersunk head sits flush in a correctly prepared countersink. Available in 6mm and 8mm lengths, with a choice of pack quantities.
Technical Specifications
| Thread Size | M2.5 |
|---|---|
| Thread Type | Metric coarse |
| Thread Pitch | 0.45mm |
| Material | A2 stainless steel |
| Standard | DIN 7991 |
| Head Style | Flat countersunk |
| Countersunk Angle | 90° |
| Drive Type | Hexagon socket |
| Allen Key Size | 1.5mm |
| Head Diameter | 4.66–4.80mm |
| Maximum Head Height | 1.55mm |
Available Lengths
6mm and 8mm.
Measuring and Fitting
Countersunk screw length is measured overall, including the head. Use a 1.5mm Allen key and match the screw to an M2.5 x 0.45mm nut or tapped hole.
