Product Description

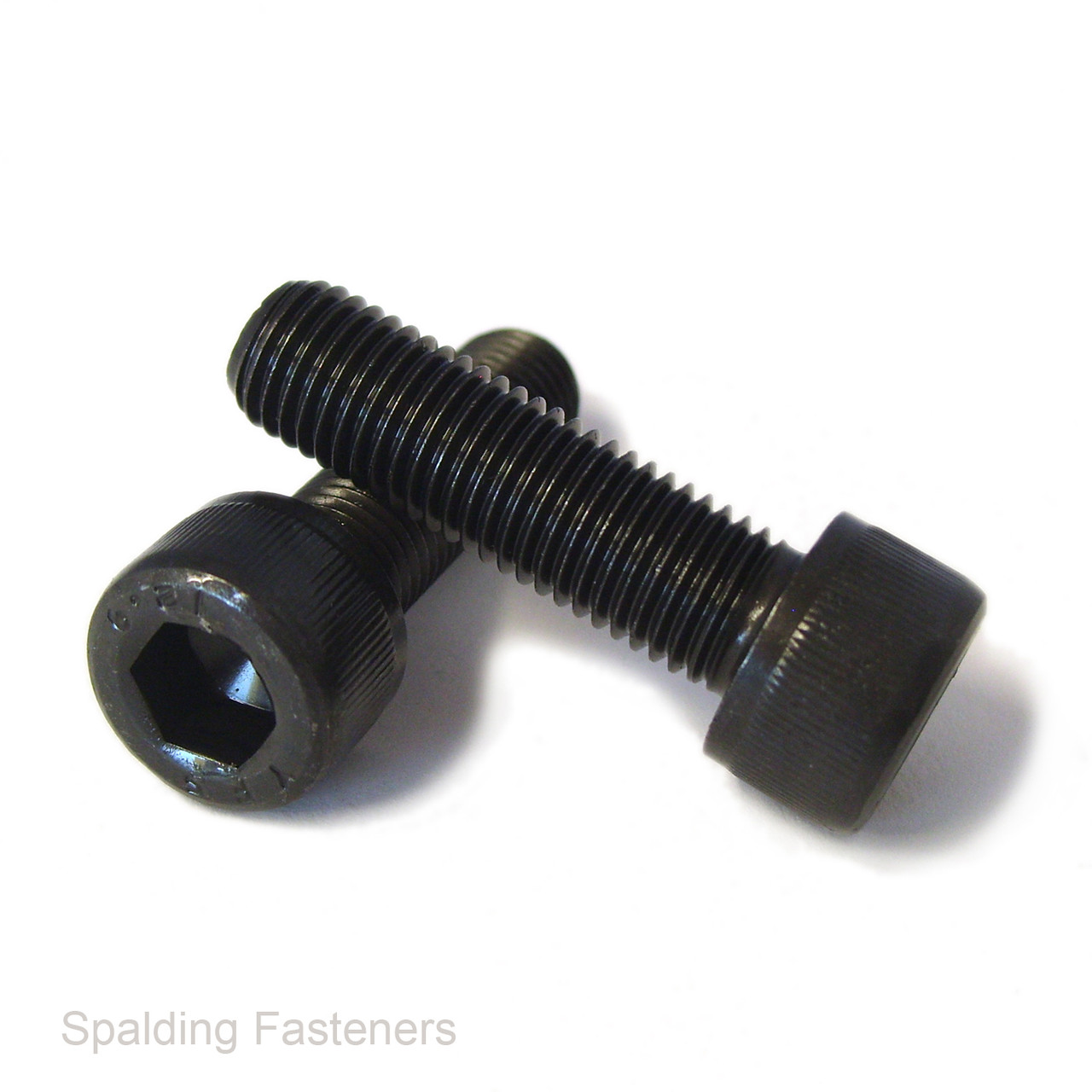

7/16" UNF 12.9 Self Colour Steel Socket Cap Set Screws
7/16" UNF fully threaded socket cap set screws manufactured from 12.9 grade high tensile steel with a self colour, unplated finish. The fine thread has 20 threads per inch.
The cylindrical socket cap head accepts a 3/8" Allen key. Choose from lengths between 1/2" and 2", with a selection of pack quantities available.
Technical Specifications
| Thread Size | 7/16" UNF |
|---|---|
| Thread Type | Unified National Fine |
| Threads Per Inch | 20 TPI |
| Thread Coverage | Fully threaded |
| Material | High tensile steel |
| Grade | 12.9 |
| Finish | Self colour, unplated |
| Head Style | Cylindrical socket cap |
| Drive Type | Hexagon socket |
| Allen Key Size | 3/8" |
| Maximum Head Diameter | 0.656" |
| Maximum Head Height | 0.438" |
| Dimensional Reference | ASME B18.3 |
Available Lengths
1/2", 5/8", 3/4", 7/8", 1", 1 1/4", 1 1/2", 1 3/4" and 2".
Measuring and Fitting
Screw length is measured from beneath the head to the tip, excluding the head. Match these screws to a 7/16" UNF nut or tapped hole with 20 TPI and use a 3/8" Allen key for fitting.
The self colour finish has no protective plating. Consider suitable corrosion protection where the screws will be exposed to moisture.
