Product Description

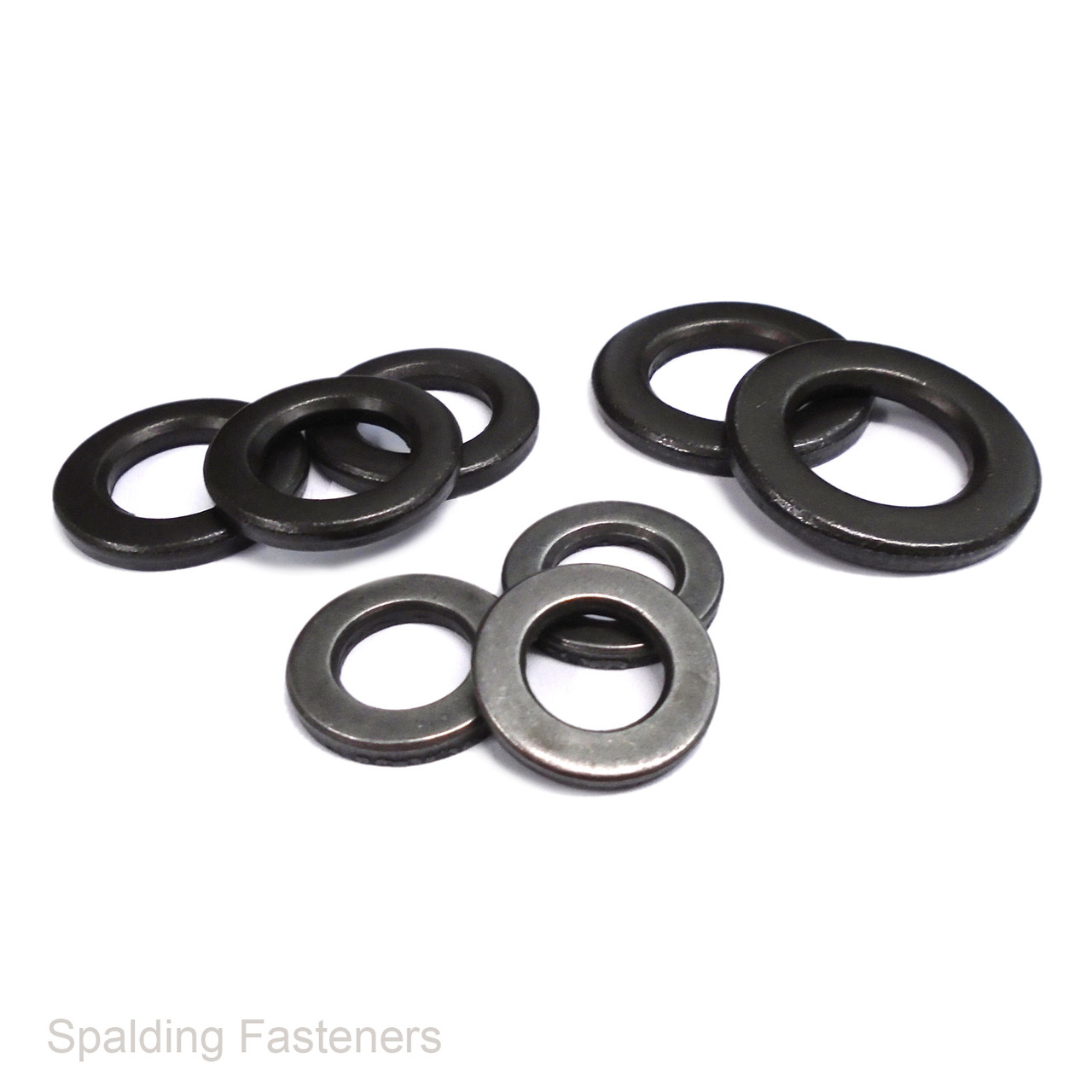

Through Hardened Steel Flat Washers DIN 6916
Through hardened steel flat washers to DIN 6916, available in M12, M14, M16, M18 and M20 nominal sizes. These washers provide a bearing surface beneath a bolt head or nut to distribute the clamping load.
Select the nominal size to suit the mating bolt, then choose your required pack quantity. The washer bore is larger than the nominal bolt diameter to provide clearance.
Technical Specifications
| Product Type | Through hardened flat washer |
|---|---|
| Material | Hardened steel 10.9 grade |
| Standard | DIN 6916 |
| Size System | Metric |
| Available Nominal Sizes | M12, M14, M16, M18 and M20 |
DIN 6916 Reference Dimensions
| Nominal Bolt Size | Internal Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| M12 | 13mm | 24mm | 3mm |
| M14 | 15mm | 28mm | 3mm |
| M16 | 17mm | 30mm | 4mm |
| M18 | 19mm | 34mm | 4mm |
| M20 | 21mm | 37mm | 4mm |
Dimensions are nominal reference values and are subject to manufacturing tolerances. Please confirm stock dimensions where clearance is critical.
Selecting Your Washers
Check the washer bore, outside diameter and thickness against your assembly. Where a specified hardness or structural bolting specification is required, confirm the washer requirements before ordering.
