Product Description

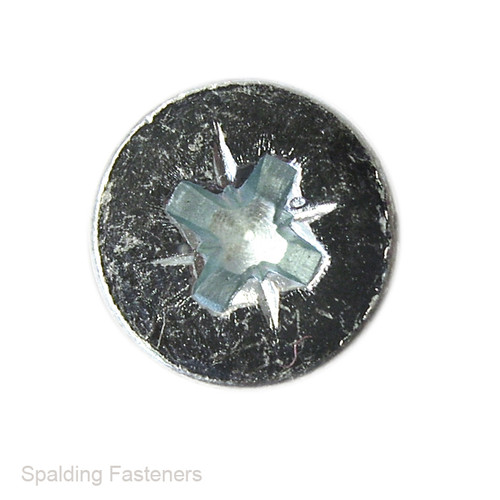

5mm Yellow Zinc Plated Double Countersunk Pozi Chipboard Screws
These 5mm chipboard screws feature a double countersunk head, Pozi drive and fully threaded body. Manufactured from steel with a yellow zinc plated finish, they are suitable for chipboard, MDF and general timber fastening applications.
The double countersunk head provides a flush finish when correctly installed, while the PZ2 recess accepts a matching Pozi screwdriver or driver bit. Available in lengths from 25mm to 60mm for furniture assembly, joinery and general woodworking.
Technical Specifications
| Nominal thread diameter | 5mm |
|---|---|
| Material | Steel |
| Finish | Yellow zinc plated |
| Standard | EN 14592 |
| Head style | Double countersunk |
| Drive type | Pozi |
| Driver bit size | PZ2 |
| Thread coverage | Fully threaded |
| Length measurement | Overall length, including the countersunk head |
Available Sizes
| Screw Diameter | Overall Length | Driver Bit |
|---|---|---|
| 5mm | 25mm | PZ2 |
| 5mm | 30mm | PZ2 |
| 5mm | 35mm | PZ2 |
| 5mm | 40mm | PZ2 |
| 5mm | 45mm | PZ2 |
| 5mm | 50mm | PZ2 |
| 5mm | 60mm | PZ2 |
Available Pack Quantities
Select the required length and pack quantity from the product options. Pack quantities: 5, 20, 50, 100, 250, 500 and 1000.
Fitting Information
Use a correctly fitting PZ2 Pozi screwdriver or driver bit. Select a screw length that provides sufficient engagement in the receiving material without protruding through the opposite face.
A pilot hole may be needed in hardwood or when fixing close to an edge. When joining two pieces with fully threaded screws, a clearance hole through the upper piece can help the joint pull together. Avoid overtightening or driving the head too deeply into the surface.
