Product Description

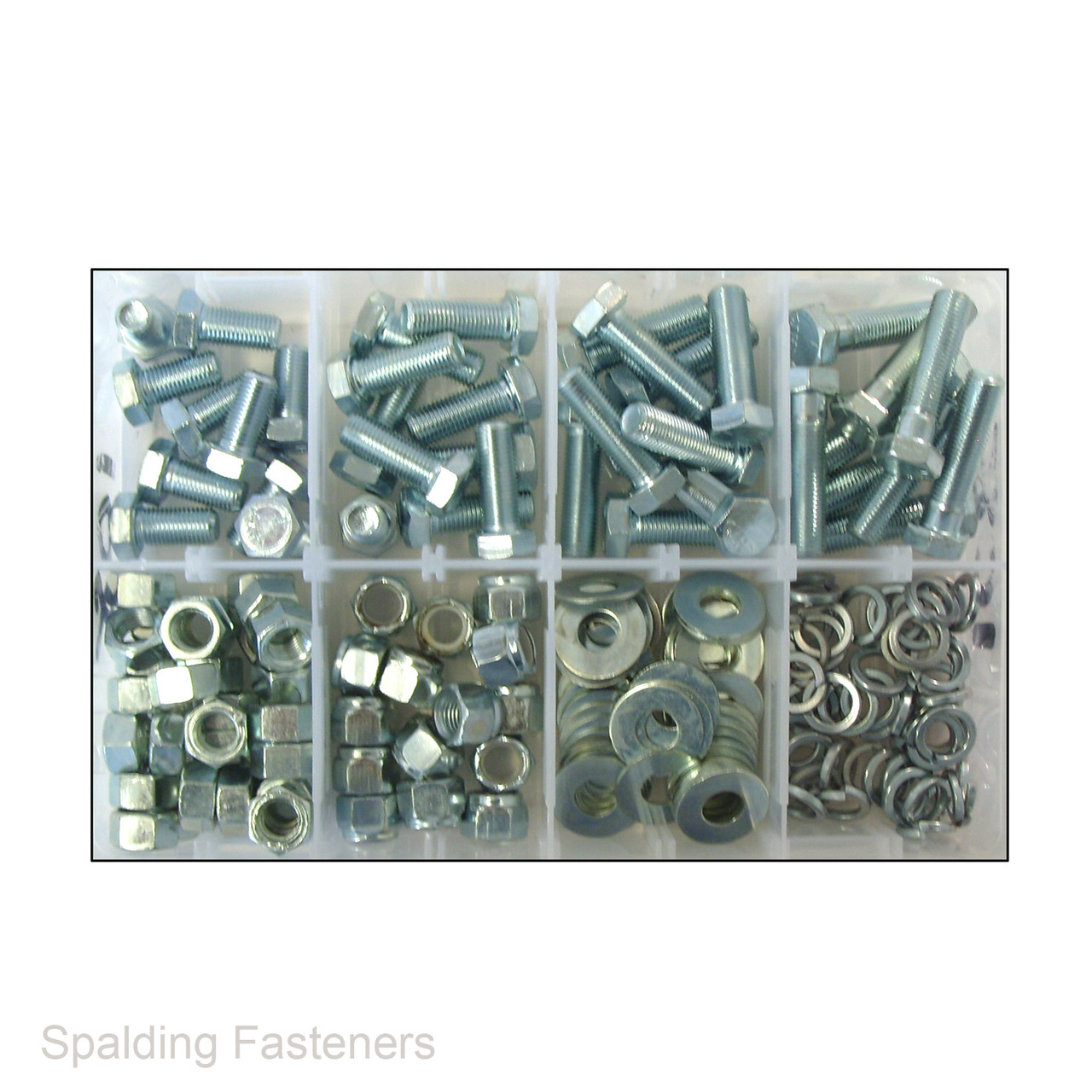

196-Piece 3/8" UNF Zinc Plated Bolt, Nut & Washer Assortment
A 196-piece assortment of 3/8" UNF zinc plated fasteners, containing Grade 5 high tensile fully threaded hexagon head bolts in four lengths, together with full nuts, Nyloc nuts, flat washers and spring washers.
Keep matching imperial fasteners organised for workshop repairs, maintenance and restoration work. Choose the complete boxed set for convenient storage or the refill pack to replenish your existing assortment.
Specifications
- Total Contents: 196 pieces
- Bolt Material: Grade 5 high tensile steel
- Finish: Zinc plated
- Thread Size: 3/8"-24 UNF
- Thread Type: Unified National Fine, right hand
- Threads Per Inch: 24 TPI
- Bolt Head: Hexagon
- Thread Coverage: Fully threaded
- Bolt Lengths: 3/4", 1", 1 1/4" and 1 1/2"
- Nut Types: Hexagon full nuts and nylon insert Nyloc nuts
- Washer Types: Flat washers and spring washers
Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Grade 5 Fully Threaded Hex Head Bolts | 3/8" UNF × 3/4" | 10 |
| Grade 5 Fully Threaded Hex Head Bolts | 3/8" UNF × 1" | 10 |
| Grade 5 Fully Threaded Hex Head Bolts | 3/8" UNF × 1 1/4" | 10 |
| Grade 5 Fully Threaded Hex Head Bolts | 3/8" UNF × 1 1/2" | 10 |
| Hexagon Full Nuts | 3/8" UNF | 36 |
| Nyloc Nuts | 3/8" UNF | 16 |
| Flat Washers | 3/8" | 52 |
| Spring Washers | 3/8" | 52 |
| Total Pieces | 196 | |
Complete Set or Refill Pack
- Complete Set: Supplied in a plastic storage box with dividers and a clip-down lid.
- Refill Pack: Supplied in individual plastic bags, without the storage box.
Measuring and Fitting
Bolt lengths are measured from beneath the hexagon head to the end of the bolt. Choose a length that provides sufficient engagement with the matching nut or tapped hole.
Match the 3/8"-24 UNF thread, start threaded components by hand and tighten with a correctly fitting imperial spanner or socket. When fitting a Nyloc nut, ensure the bolt passes through the nylon locking insert.
