Product Description
Metric Zinc Plated Pozi Machine Screw & Nut Assortment
A selection of M3 to M6 machine screws with matching full nuts, combining pan and countersunk Pozi heads for assembly, maintenance and repair work.

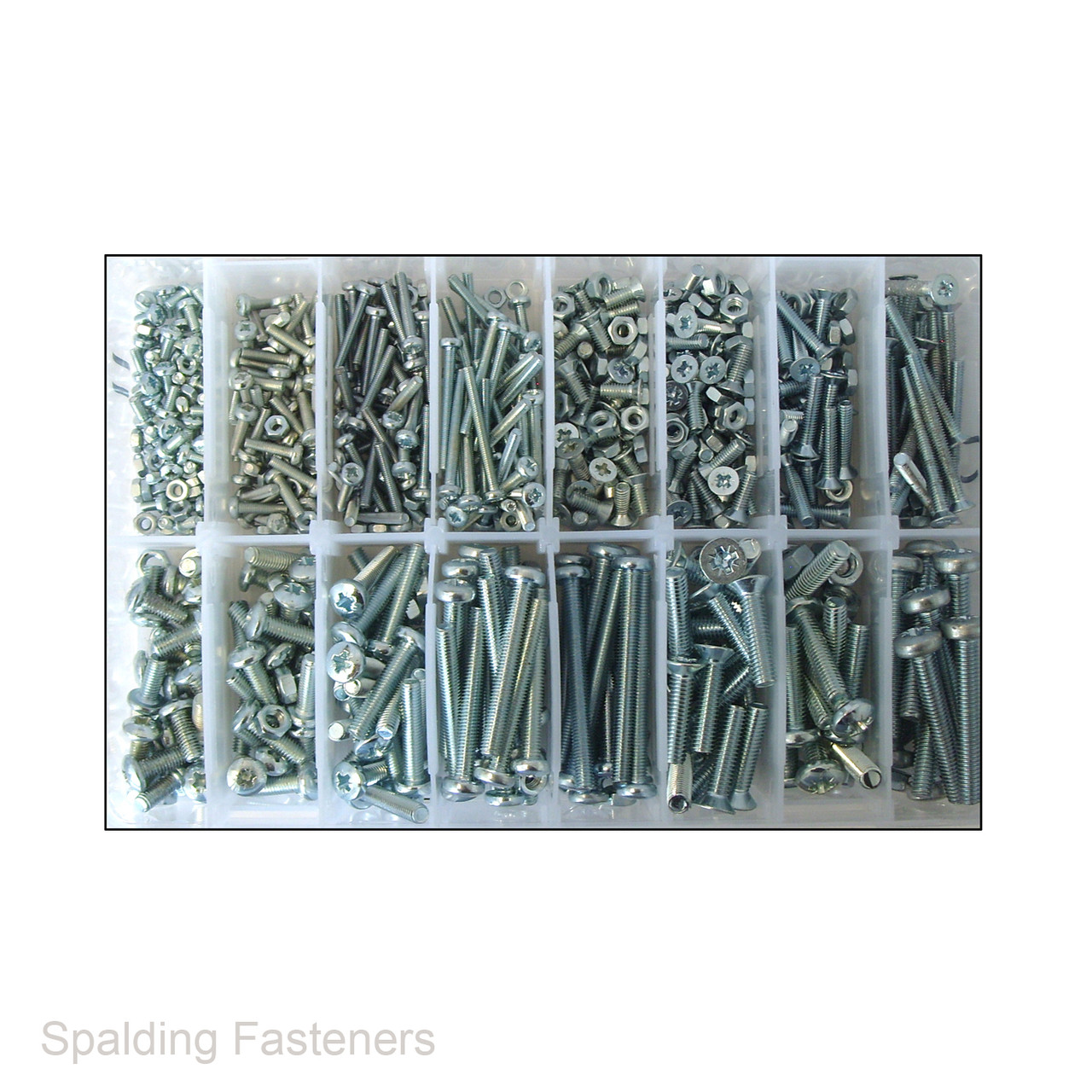

Contents
Quantities below are screw-and-nut pairs. All lengths are in millimetres.
| Thread Size | Length | Head Style | Pairs |
|---|---|---|---|
| M3 | 6 | Pan Pozi | 50 |
| M3 | 10 | Pan Pozi | 45 |
| M3 | 20 | Pan Pozi | 40 |
| M3 | 30 | Pan Pozi | 40 |
| M4 | 10 | Countersunk Pozi | 40 |
| M4 | 12 | Countersunk Pozi | 40 |
| M4 | 20 | Countersunk Pozi | 20 |
| M4 | 40 | Countersunk Pozi | 20 |
| M5 | 16 | Pan Pozi | 20 |
| M5 | 20 | Pan Pozi | 20 |
| M5 | 25 | Pan Pozi | 20 |
| M5 | 40 | Pan Pozi | 20 |
| M5 | 50 | Pan Pozi | 10 |
| M6 | 25 | Pan Pozi | 10 |
| M6 | 25 | Countersunk Pozi | 20 |
| M6 | 40 | Countersunk Pozi | 10 |
Packaging Options

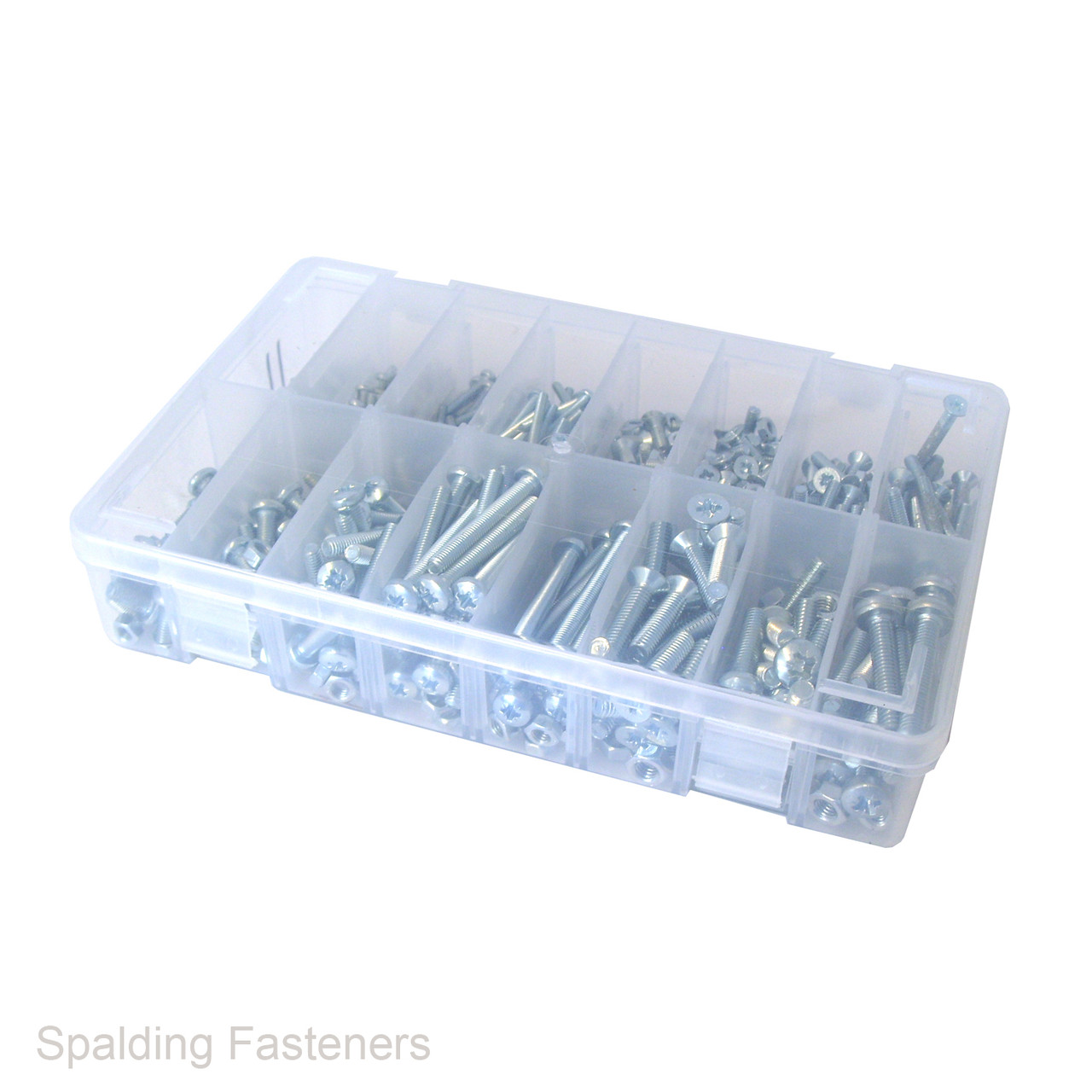

- Complete set: Supplied in a divided plastic storage box with a clip-down lid.

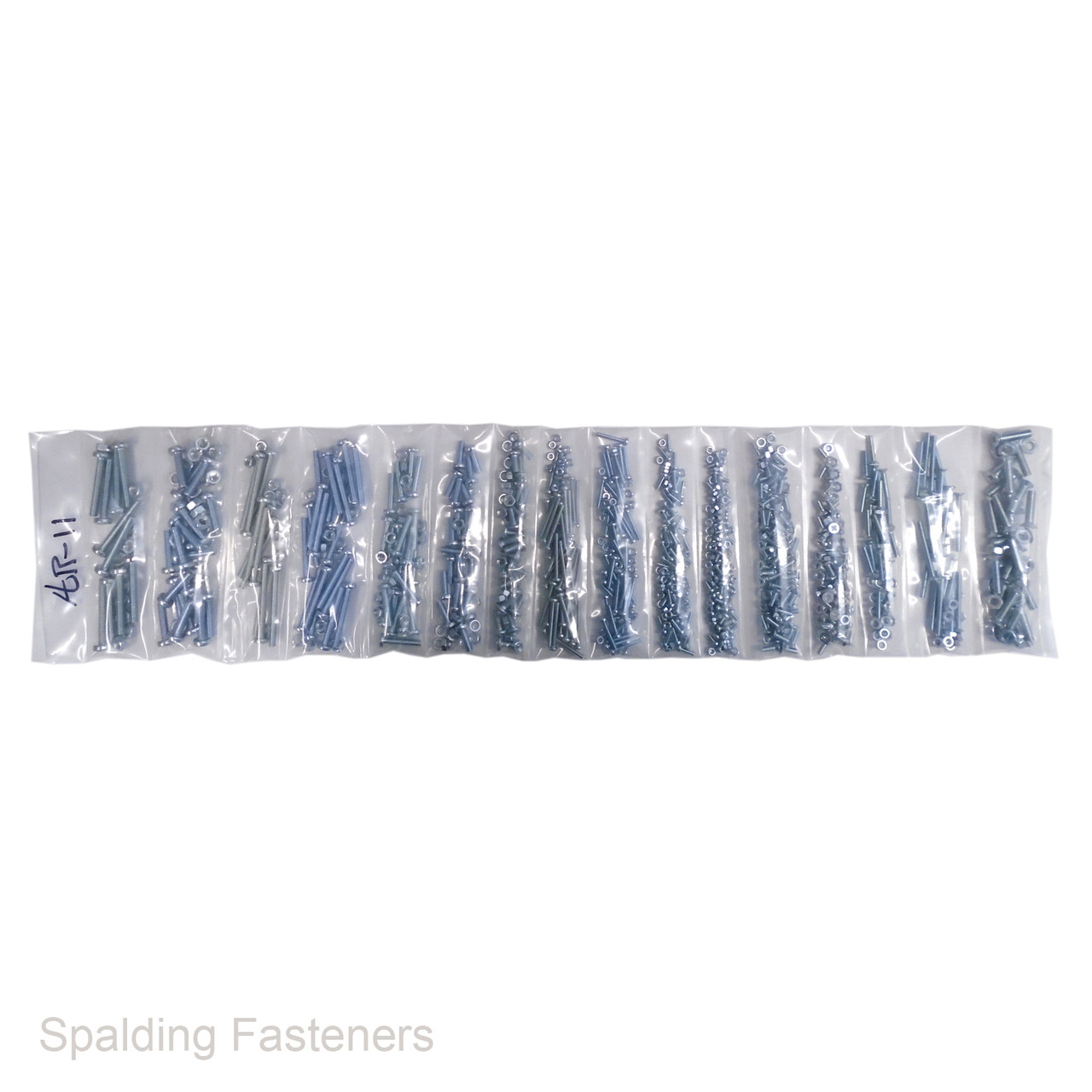

- Refill pack: Components supplied in individual plastic bags.
Choosing and Measuring
Pan heads sit above the fixing surface. Countersunk heads fit into a matching countersink to provide a flush finish. Measure pan head screws from underneath the head to the tip; countersunk screw lengths include the head.
Use a correctly fitting Pozi screwdriver or bit. Machine screws fit matching nuts or tapped holes and do not cut their own thread.
