Product Description

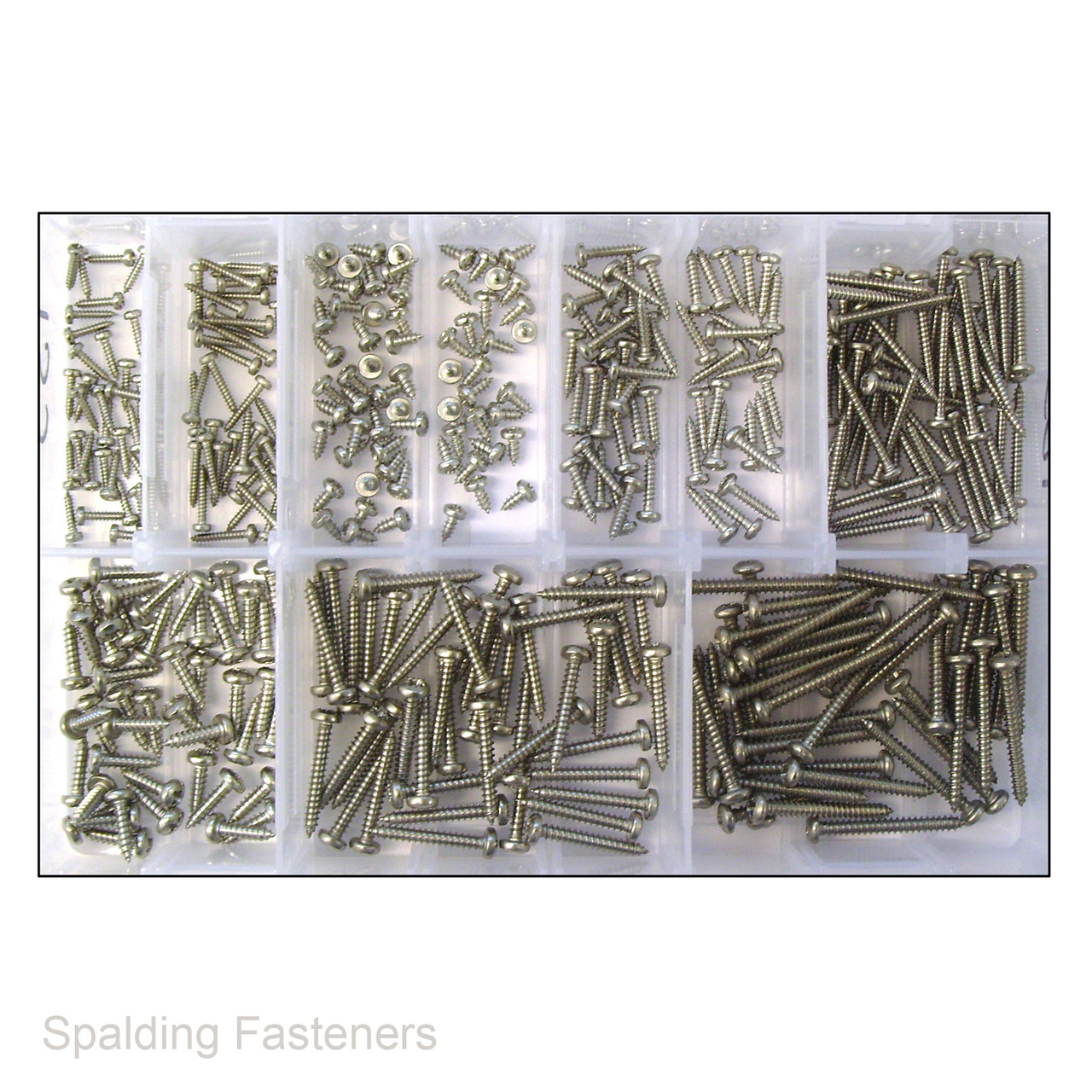

370 Assorted A2 Stainless Steel Pan Pozi Self Tapping Screws – No.2 to No.8
A selection of A2 stainless steel pan head self tapping screws with Pozi drives, covering eight sizes for maintenance, assembly and repairs.
Contents
| Imperial Size | Metric Size | Quantity |
|---|---|---|
| No.2 × 3/8" | 2.2 × 9.5mm | 35 |
| No.2 × 1/2" | 2.2 × 13mm | 35 |
| No.4 × 1/4" | 2.9 × 6.5mm | 70 |
| No.4 × 1/2" | 2.9 × 13mm | 50 |
| No.4 × 1" | 2.9 × 25mm | 50 |
| No.6 × 1/2" | 3.5 × 13mm | 45 |
| No.6 × 1" | 3.5 × 25mm | 45 |
| No.8 × 1/4" | 4.2 × 6.5mm | 40 |
| Total | 370 | |
Head and Drive Dimensions
Reference dimensions for the DIN 7981 pan Pozi pattern. All dimensions are in millimetres.
| Screw Size | Head Diameter | Head Height | Pozi Bit Size |
|---|---|---|---|
| No.2 – 2.2mm | 3.90–4.20 | 1.55–1.80 | PZ1 |
| No.4 – 2.9mm | 5.30–5.60 | 1.95–2.20 | PZ1 |
| No.6 – 3.5mm | 6.54–6.90 | 2.35–2.60 | PZ2 |
| No.8 – 4.2mm | 7.84–8.20 | 2.75–3.05 | PZ2 |
Packaging Options
- Boxed set: Plastic storage case with a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting and Measuring
Measure screw length from underneath the pan head to the tip. The head sits above the fixing surface.
Self tapping screws form their mating thread in a suitable pilot hole. Select the pilot hole for the screw diameter, material and thickness, and use the correct Pozi bit to avoid damaging the recess.
