Product Description

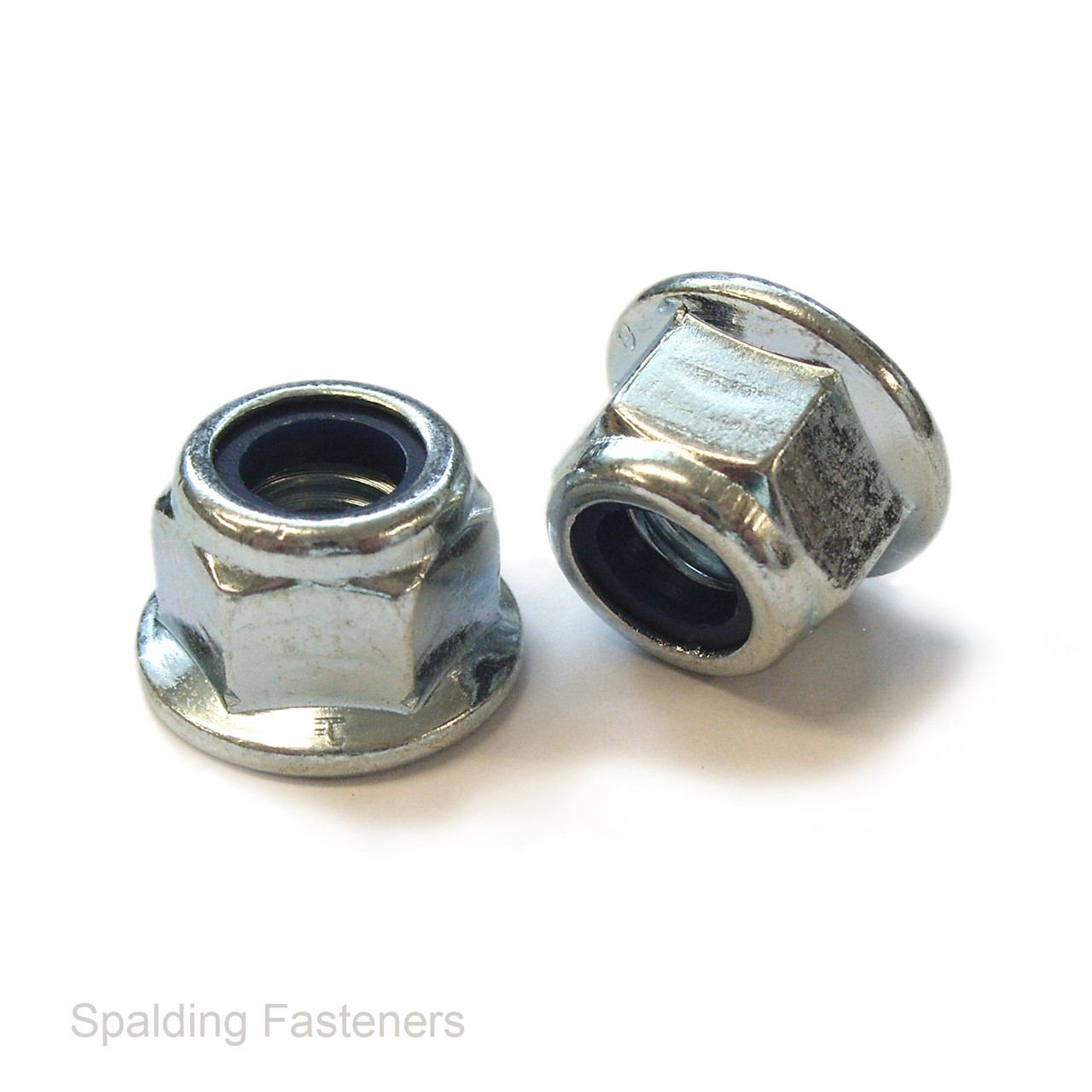

150-Piece Class 8 Metric Zinc Plated Flange Nyloc Nut Assortment
An assortment of M5, M6, M8 and M10 Class 8 steel flange nuts with a bright zinc plated finish and nylon locking inserts. The integral flange spreads the clamping load, while the nylon insert grips the mating thread to help resist loosening.
Specifications
- Material: steel with nylon locking insert.
- Property class: 8.
- Finish: bright zinc plated.
- Type: hexagon flange Nyloc nut.
- Thread: metric coarse.
- Sizes: M5, M6, M8 and M10.
- Total quantity: 150 nuts.
Pack Contents
| Thread Size | Thread Pitch | Quantity |
|---|---|---|
| M5 | 0.8mm | 70 |
| M6 | 1.0mm | 50 |
| M8 | 1.25mm | 20 |
| M10 | 1.5mm | 10 |
Dimensional Reference
Reference dimensions for DIN 6926 nylon insert flange nuts. All measurements are in millimetres.
| Thread Size | Spanner Size Across Flats | Maximum Flange Diameter | Overall Height |
|---|---|---|---|
| M5 | 8 | 11.8 | 6.74–7.10 |
| M6 | 10 | 14.2 | 8.74–9.10 |
| M8 | 13 | 17.9 | 10.67–11.10 |
| M10 | 15 | 21.8 | 13.07–13.50 |
Packaging Options
Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
Fitting Advice
Match the nut to the correct metric thread and start it by hand. Use a suitable spanner or socket and ensure the bolt passes fully through the nylon insert when tightened.
