Product Description
180-Piece M8 A2 Stainless Steel Socket Cap Screw, Nut & Washer Assortment
An assortment of M8 socket cap screws in four lengths, supplied with full nuts, flat washers, spring washers and two sizes of penny repair washer.
Specifications
- Material: A2 stainless steel.
- Thread: M8 metric coarse, 1.25mm pitch.
- Head style: cylindrical socket cap.
- Drive: 6mm hexagon socket.
- Screw lengths: 16mm, 20mm, 25mm and 30mm.
- Total quantity: 180 pieces.
Pack Contents
| Component | Size | Quantity |
|---|---|---|
| Socket cap screw | M8 x 16mm | 10 |
| Socket cap screw | M8 x 20mm | 10 |
| Socket cap screw | M8 x 25mm | 10 |
| Socket cap screw | M8 x 30mm | 10 |

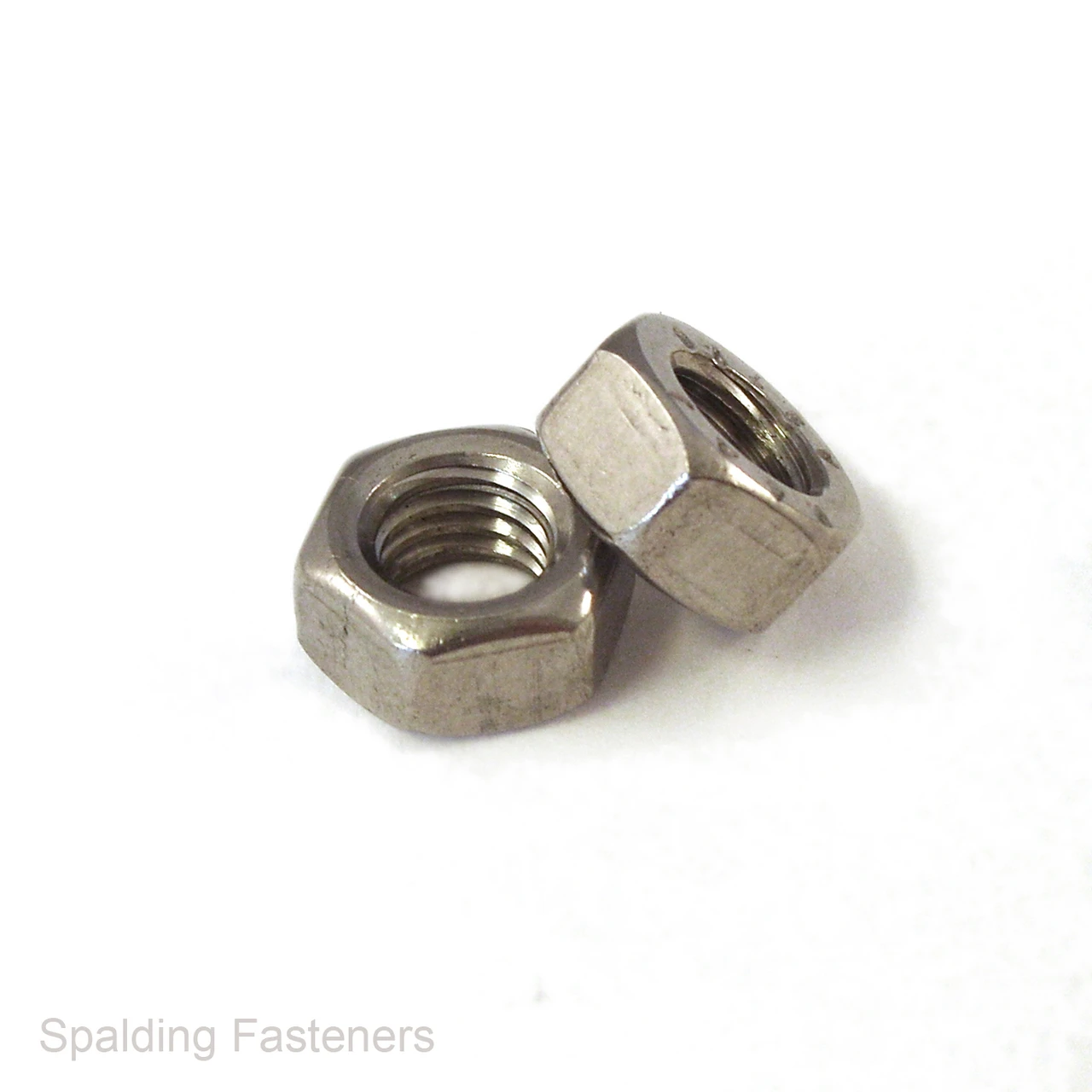

| Hexagon full nut | M8 | 40 |
| Flat washer | M8 | 40 |
| Spring washer | M8 | 40 |
| Penny repair washer | M8 x 25mm outside diameter | 10 |
| Penny repair washer | M8 x 30mm outside diameter | 10 |
Socket Cap Screw Dimensions
Reference dimensions for M8 socket cap screws to DIN 912 / ISO 4762. All measurements are in millimetres.
| Measurement | Size |
|---|---|
| Nominal thread diameter | 8 |
| Thread pitch | 1.25 |
| Head diameter | 12.73–13.00 |
| Head height | 7.64–8.00 |
| Allen key size | 6 |
| Minimum socket depth | 4 |
Packaging Options

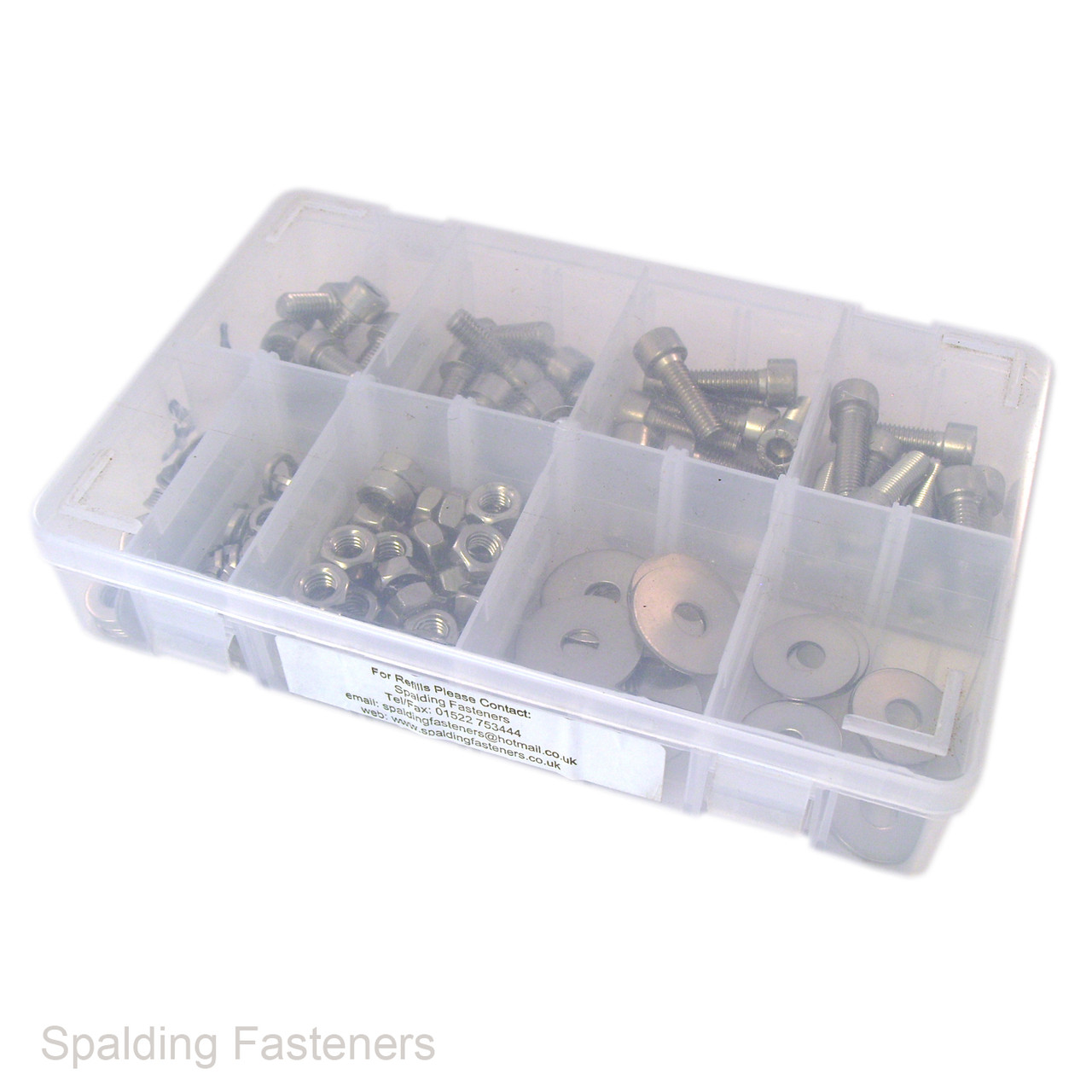

Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
Measuring & Fitting
Measure screw length from beneath the head to the end. Start threads by hand and tighten steadily with a fully seated 6mm Allen key to help avoid cross-threading and stainless steel galling.
