Product Description

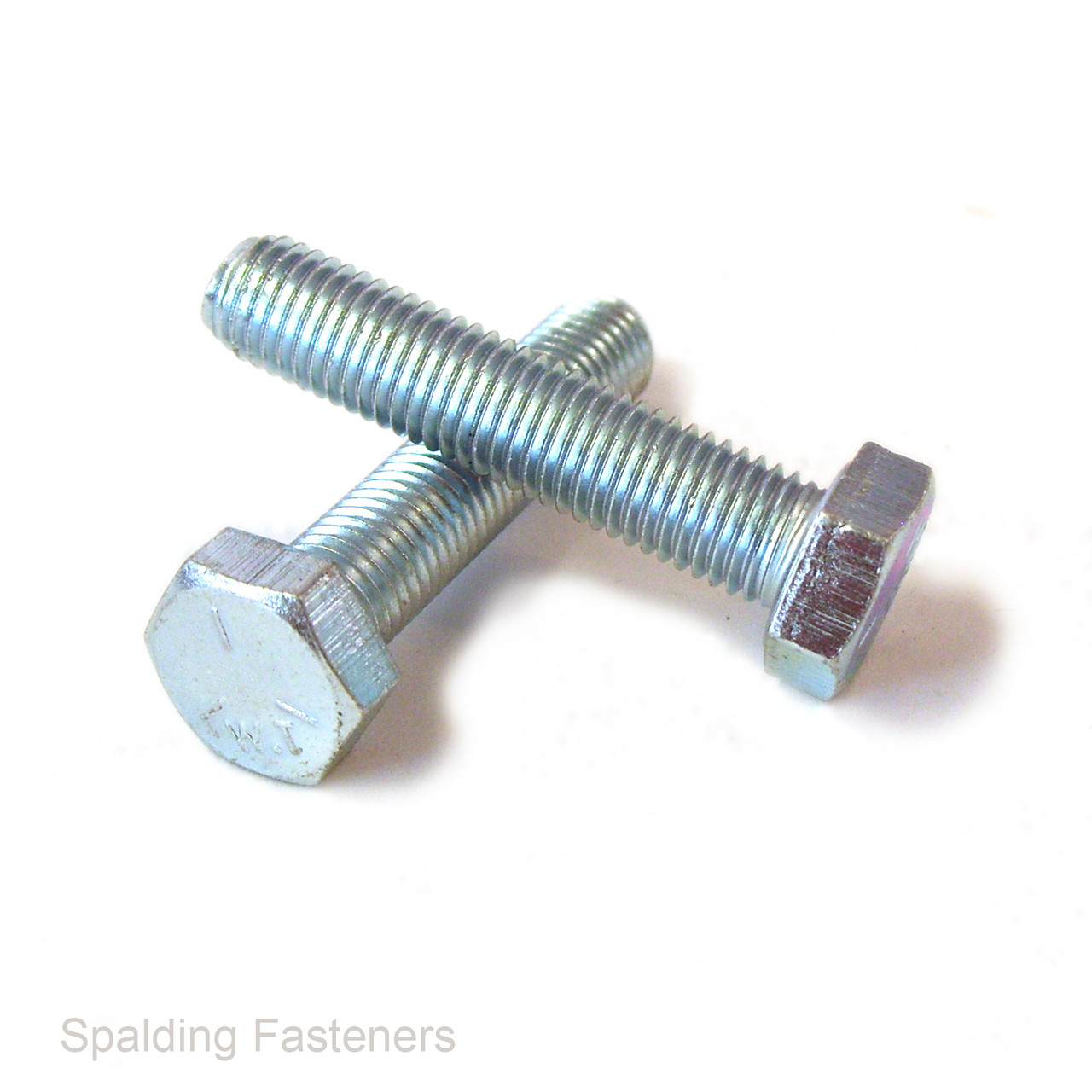

M10 metric coarse 8.8 high tensile zinc plated steel hexagon head set screws to DIN 933, fully threaded and suitable for use with metric nuts, tapped holes and threaded inserts.
These fully threaded hexagon set screws are manufactured from Grade 8.8 high tensile steel for good strength in general engineering, automotive, machinery, fabrication, construction and maintenance applications. The zinc plated finish provides general corrosion resistance for indoor and protected environments.
- M10 metric coarse thread hexagon set screws
- Grade 8.8 high tensile steel
- Zinc plated finish for general corrosion resistance
- DIN 933 fully threaded hexagon screw pattern
- M10 x 1.5mm standard metric coarse thread
- 17mm A/F hexagon head size
- 6.4mm head height
- Available in lengths from 16mm to 150mm
| A | B | C | D | E |
| 10mm | 100mm | 17mm | 6.4mm | 1.5 |
| 10mm | 16mm | 17mm | 6.4mm | 1.5 |
| 10mm | 20mm | 17mm | 6.4mm | 1.5 |
| 10mm | 25mm | 17mm | 6.4mm | 1.5 |
| 10mm | 30mm | 17mm | 6.4mm | 1.5 |
| 10mm | 35mm | 17mm | 6.4mm | 1.5 |
| 10mm | 40mm | 17mm | 6.4mm | 1.5 |
| 10mm | 45mm | 17mm | 6.4mm | 1.5 |
| 10mm | 50mm | 17mm | 6.4mm | 1.5 |
| 10mm | 60mm | 17mm | 6.4mm | 1.5 |
| 10mm | 70mm | 17mm | 6.4mm | 1.5 |
| 10mm | 130mm | 17mm | 6.4mm | 1.5 |
| 10mm | 150mm | 17mm | 6.4mm | 1.5 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
