Product Description
340 Piece M1.6 A2 Stainless Steel Socket Cap Screw & Nut Assortment
A miniature fastener assortment containing 170 socket cap machine screws in nine lengths and 170 matching full nuts. Useful for model engineering, small assemblies and workshop repairs.
Product Specifications
- Material: A2 stainless steel.
- Thread: M1.6 metric coarse, 0.35mm pitch.
- Head style: cylindrical socket cap.
- Drive: 1.5mm hexagon socket.
- Screw lengths: 3mm to 20mm, measured from underneath the head.
- Total quantity: 340 pieces.
Assortment Contents
| Component | Size | Quantity |
|---|---|---|
| Socket cap machine screws | M1.6 x 3mm | 20 |
| Socket cap machine screws | M1.6 x 4mm | 20 |
| Socket cap machine screws | M1.6 x 5mm | 20 |
| Socket cap machine screws | M1.6 x 6mm | 20 |
| Socket cap machine screws | M1.6 x 8mm | 20 |
| Socket cap machine screws | M1.6 x 10mm | 20 |
| Socket cap machine screws | M1.6 x 12mm | 20 |
| Socket cap machine screws | M1.6 x 16mm | 15 |
| Socket cap machine screws | M1.6 x 20mm | 15 |
| Full nuts | M1.6 | 170 |
| Total | 340 | |
Socket Cap Screw Reference Dimensions
| Measurement | Dimension |
|---|---|
| Dimensional reference | DIN 912 / ISO 4762 |
| Nominal thread diameter | 1.6mm |
| Thread pitch | 0.35mm |
| Head diameter | 2.86–3.00mm |
| Head height | 1.46–1.60mm |
| Allen key size | 1.5mm |
| Minimum socket depth | 0.7mm |
Dimensions are reference values for the stated screw pattern. Please check with us if a measurement is critical to your application.
Packaging Options

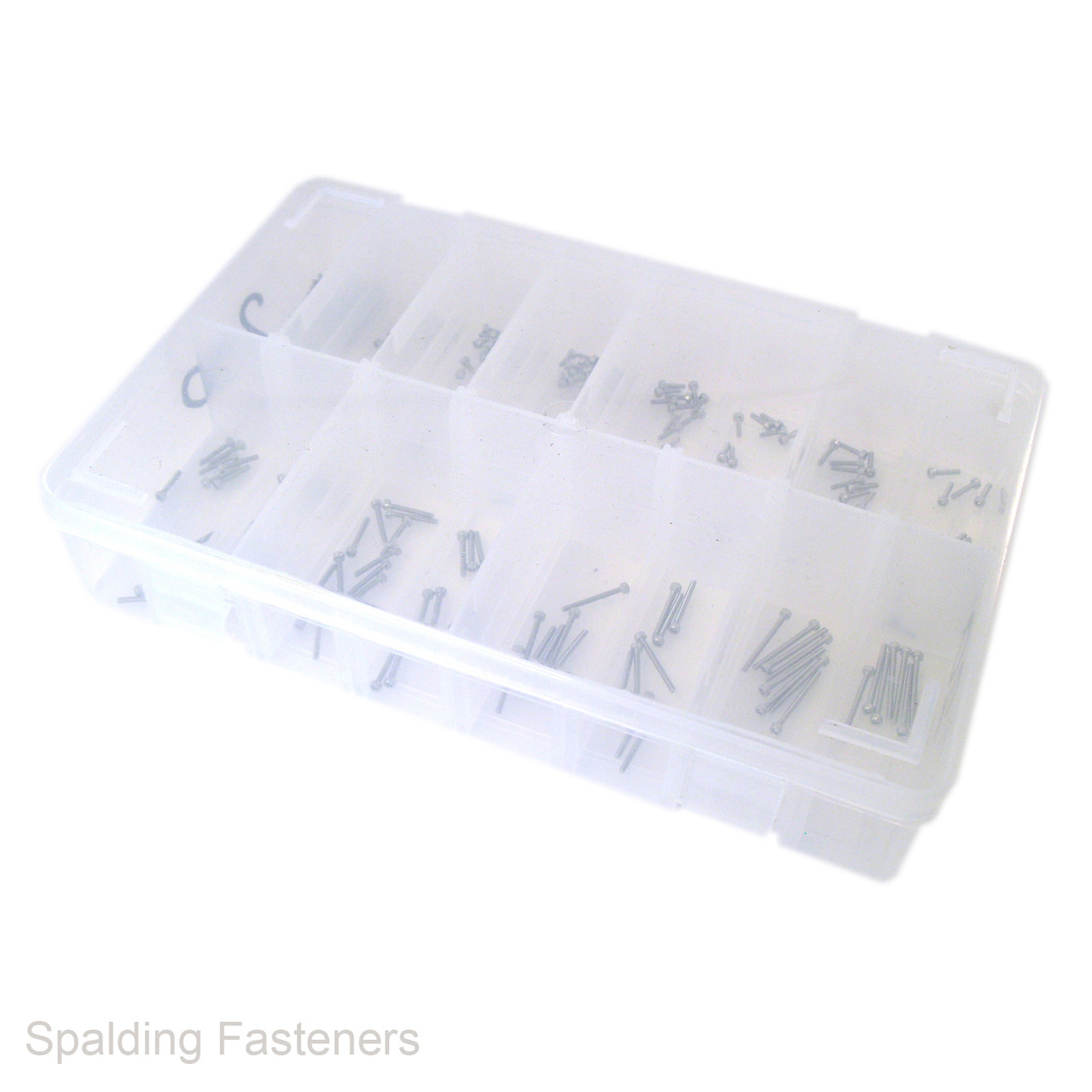

- Boxed set: plastic storage box with dividers and a clip-down lid.
- Refill pack: supplied without a box.
Fitting Advice
Use a correctly fitting 1.5mm Allen key with matching M1.6 x 0.35mm nuts or tapped holes. Start threads by hand and tighten carefully to avoid damaging these small fasteners. Check the available depth when fitting screws into blind holes.
