Product Description
300 Assorted UNF Grade 5 Zinc Plated Hexagon Full Nuts
A 300-piece assortment of Grade 5 high tensile steel hexagon full nuts with a zinc plated finish. Includes six UNF imperial fine thread sizes for use with matching bolts, set screws and threaded studs.
Product Specifications
- Material: High tensile steel.
- Grade: Grade 5.
- Finish: Zinc plated.

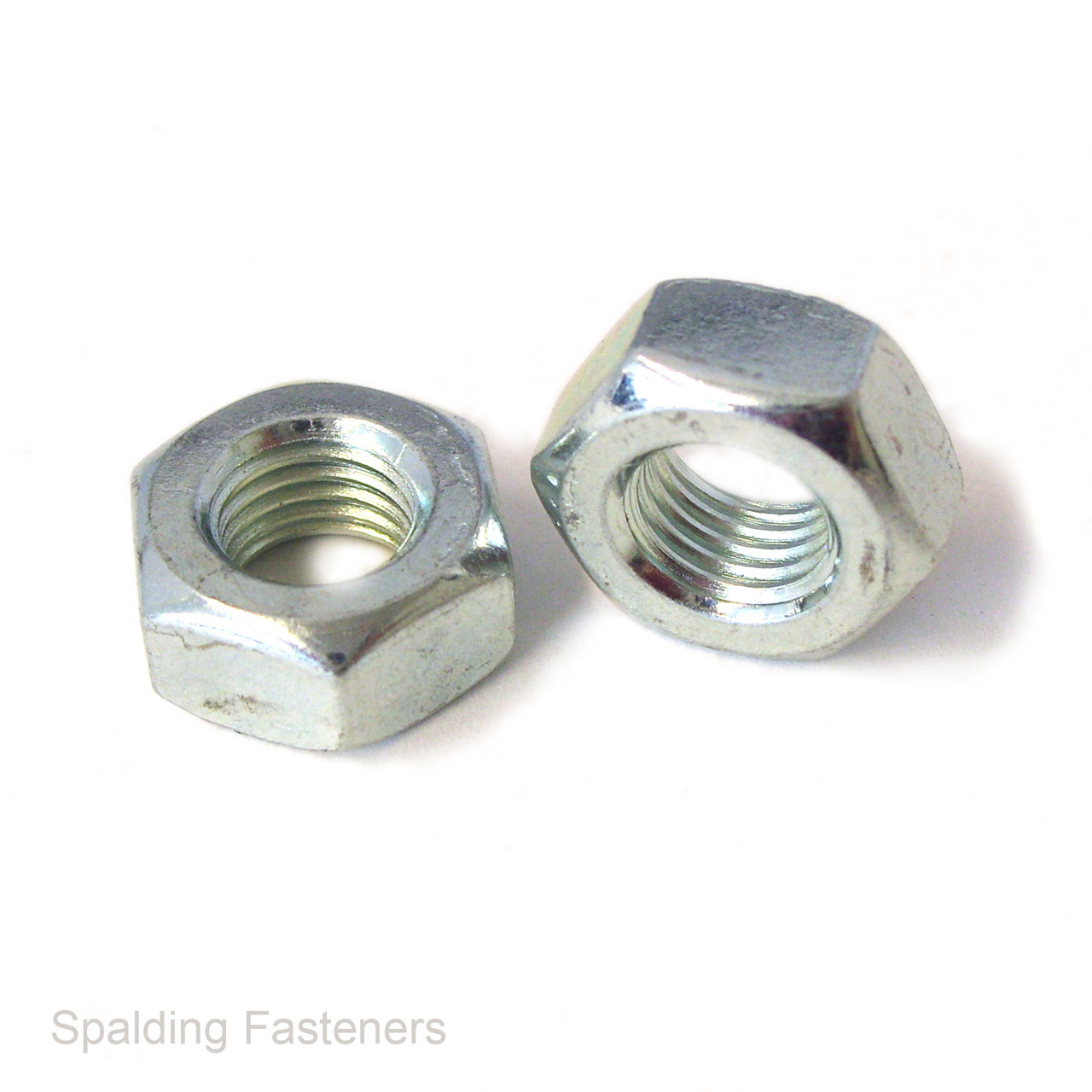

- Nut type: Plain hexagon full nut.
- Thread: UNF imperial fine thread.
- Size range: No.10-32 to 1/2 inch UNF.
- Total quantity: 300 nuts in six sizes.

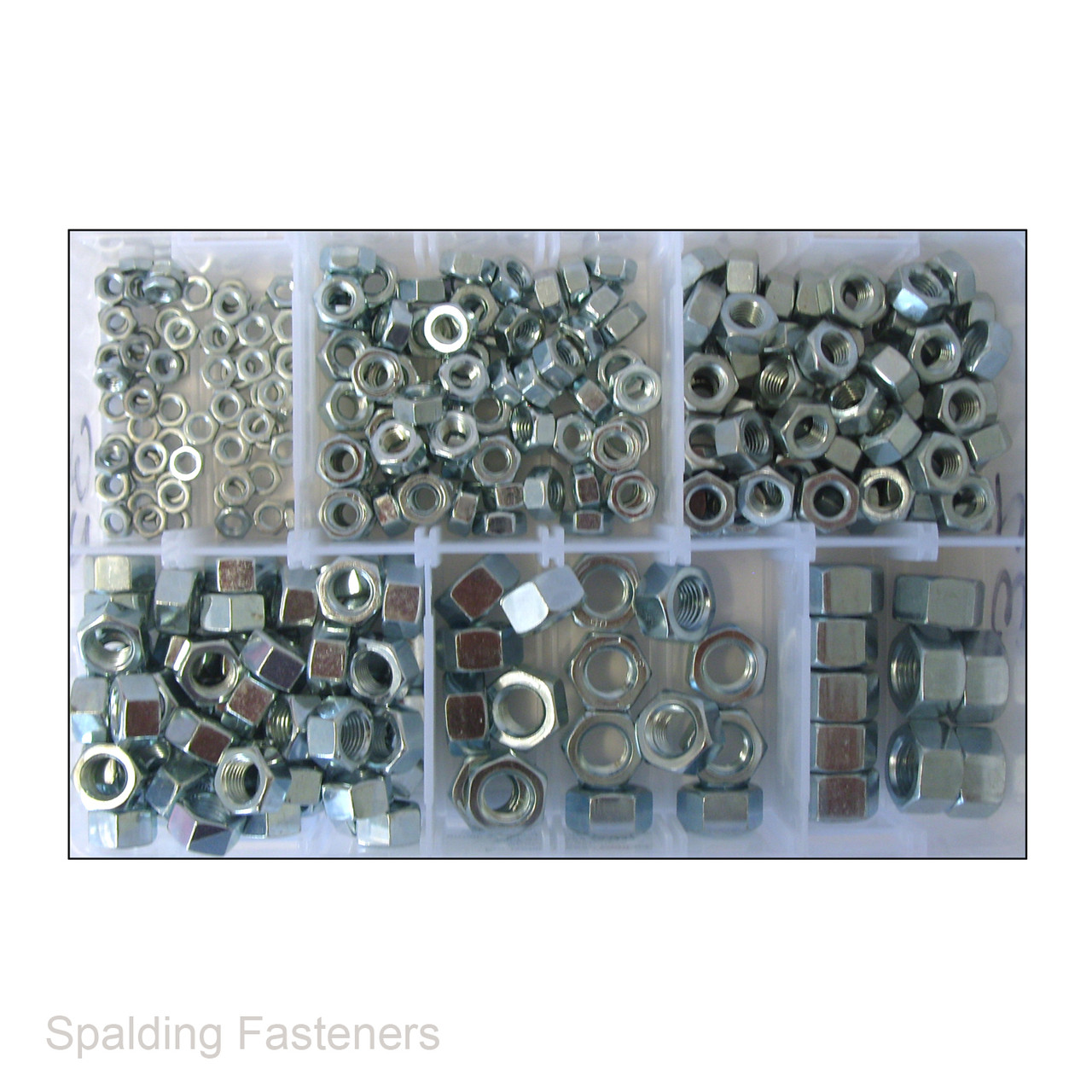

Assortment Contents
| Thread Size | Threads Per Inch | Quantity |
|---|---|---|
| No.10-32 UNF | 32 | 74 |
| 1/4 inch UNF | 28 | 70 |
| 5/16 inch UNF | 24 | 70 |
| 3/8 inch UNF | 24 | 60 |
| 7/16 inch UNF | 20 | 16 |
| 1/2 inch UNF | 20 | 10 |
| Total | 300 | |
Sizes identify the mating thread, not the spanner size. No.10-32 UNF is sometimes described as 3/16 inch UNF.
Packaging Options

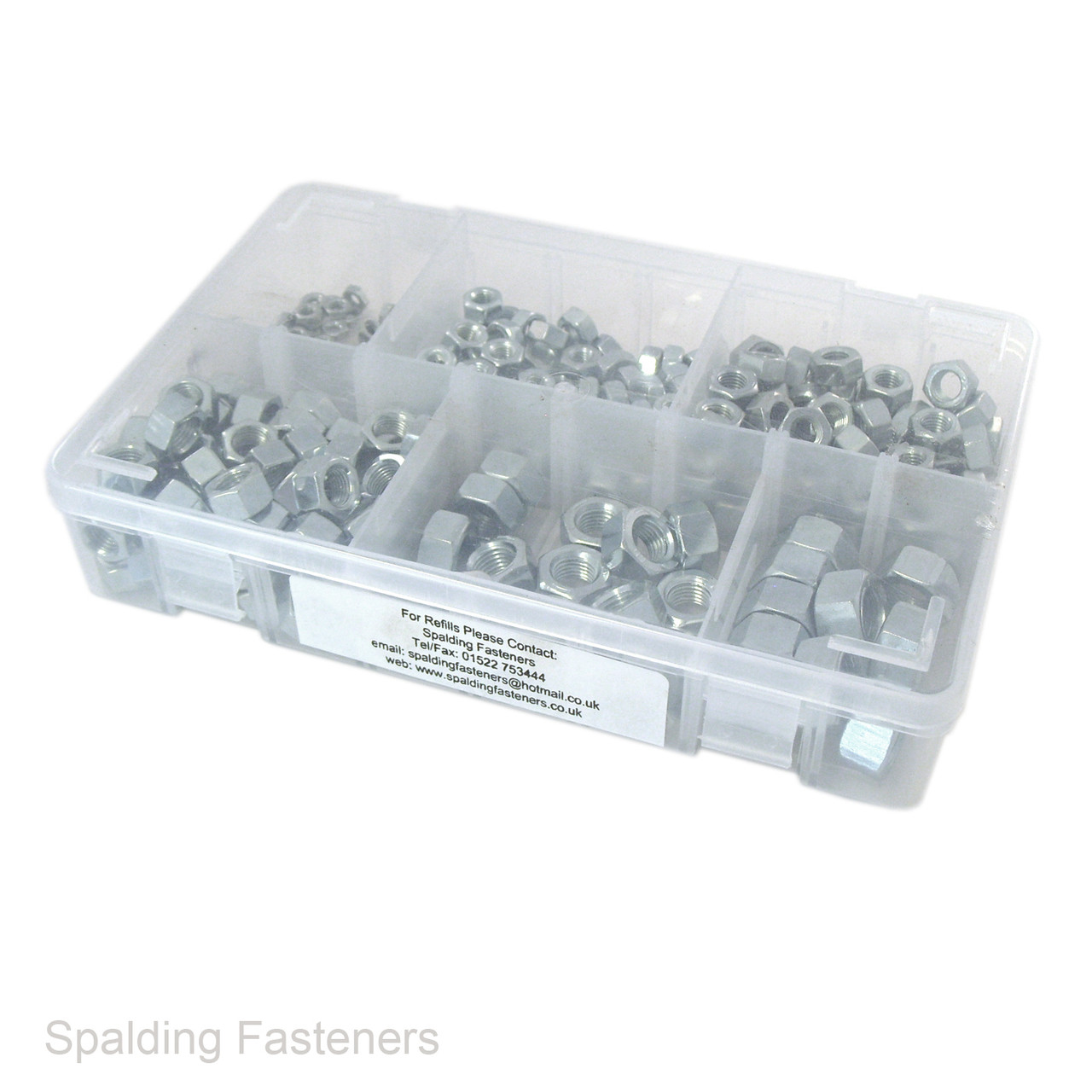

- Boxed assortment: Supplied in a plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting Information
Match the nut to the correct UNF thread size and threads per inch. Start by hand to avoid cross-threading, then tighten using a correctly fitting spanner or socket. These are plain full nuts without a self-locking insert.
