Product Description

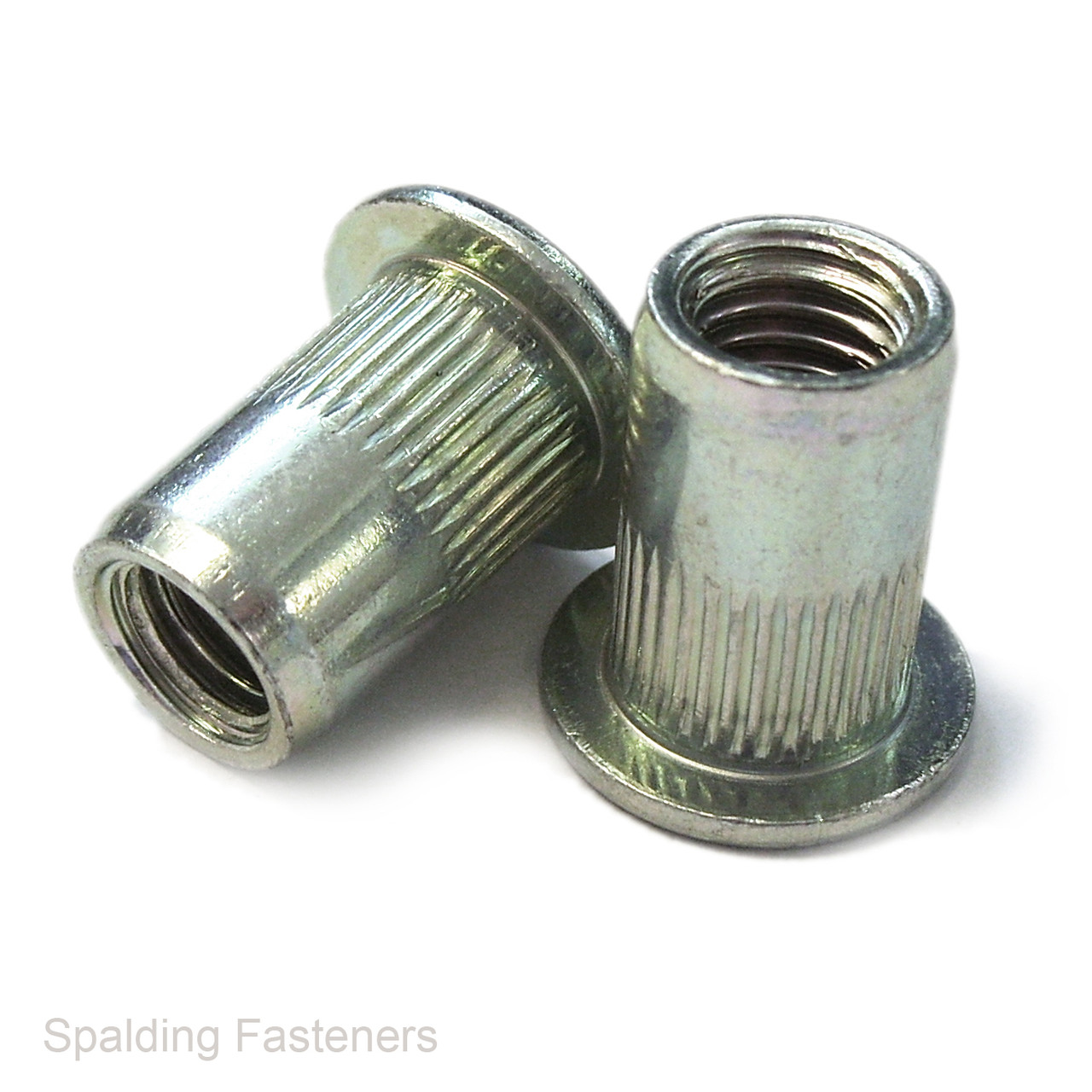

200 Assorted Zinc Plated Steel Large Flange Rivet Nuts M3–M10
A 200-piece assortment of zinc plated steel rivet nuts, also known as rivnuts or nutserts. Includes six metric coarse thread sizes from M3 to M10 for creating threaded fixing points in sheet material and hollow sections.
Product Specifications
- Material: Steel.
- Finish: Zinc plated.
- Type: Large flange threaded rivet nut.
- Thread: Metric coarse.
- Sizes included: M3, M4, M5, M6, M8 and M10.
- Total quantity: 200 rivet nuts.
Assortment Contents
| Thread Size | Thread Pitch | Quantity |
|---|---|---|
| M3 | 0.5mm | 50 |
| M4 | 0.7mm | 50 |
| M5 | 0.8mm | 40 |
| M6 | 1.0mm | 25 |
| M8 | 1.25mm | 20 |
| M10 | 1.5mm | 15 |
| Total | 200 | |
Sizes refer to the internal thread for the mating screw or bolt. They do not indicate the required installation hole diameter.
Packaging Options
- Boxed assortment: Supplied in a plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a storage box.
Fitting Information
Select a rivet nut with a grip range suitable for the material thickness. Prepare the correct installation hole, remove burrs and seat the flange against the surface. Set the insert using a compatible rivet nut tool with the matching threaded mandrel and nosepiece.
