Product Description
335 Assorted Imperial Zinc Plated Steel Cotter Split Pins
A 335-piece assortment of zinc plated steel cotter split pins in seven imperial size combinations. Useful for retaining compatible clevis pins and securing castellated nut assemblies during maintenance and repair work.
Product Specifications
- Material: Steel.
- Finish: Zinc plated.
- Type: Cotter split pin.
- Sizing: Imperial nominal diameter and length.
- Nominal diameter range: 1/16 to 9/64 inch.
- Lengths included: 1 inch and 1 1/2 inches.
- Number of size combinations: Seven.
- Total quantity: 335 pins.

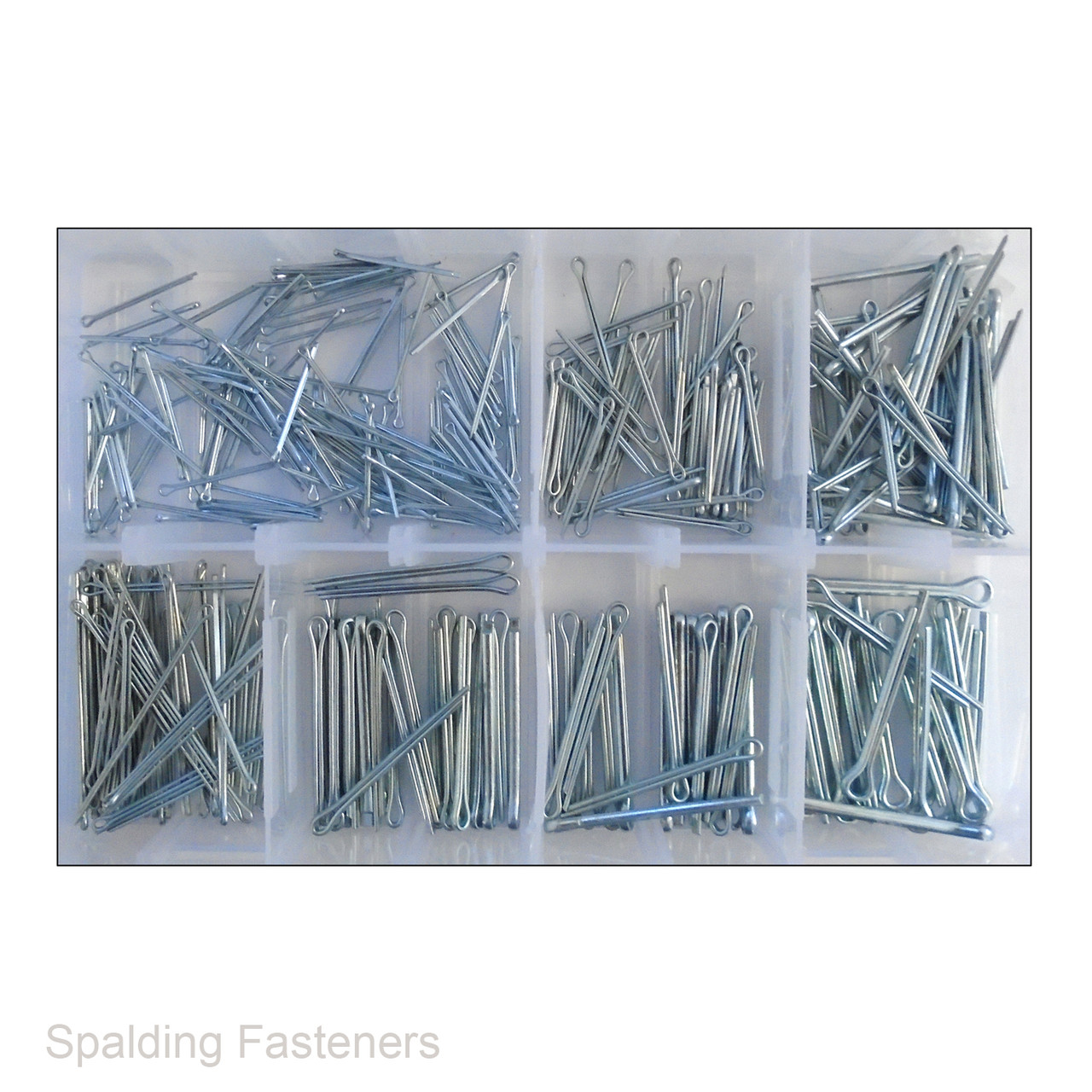

Assortment Contents
| Nominal Diameter | Length | Quantity |
|---|---|---|
| 1/16 inch | 1 inch | 120 |
| 5/64 inch | 1 inch | 50 |
| 5/64 inch | 1 1/2 inches | 50 |
| 3/32 inch | 1 1/2 inches | 50 |
| 7/64 inch | 1 1/2 inches | 25 |
| 1/8 inch | 1 1/2 inches | 20 |
| 9/64 inch | 1 1/2 inches | 20 |
| Total | 335 | |
Packaging Options

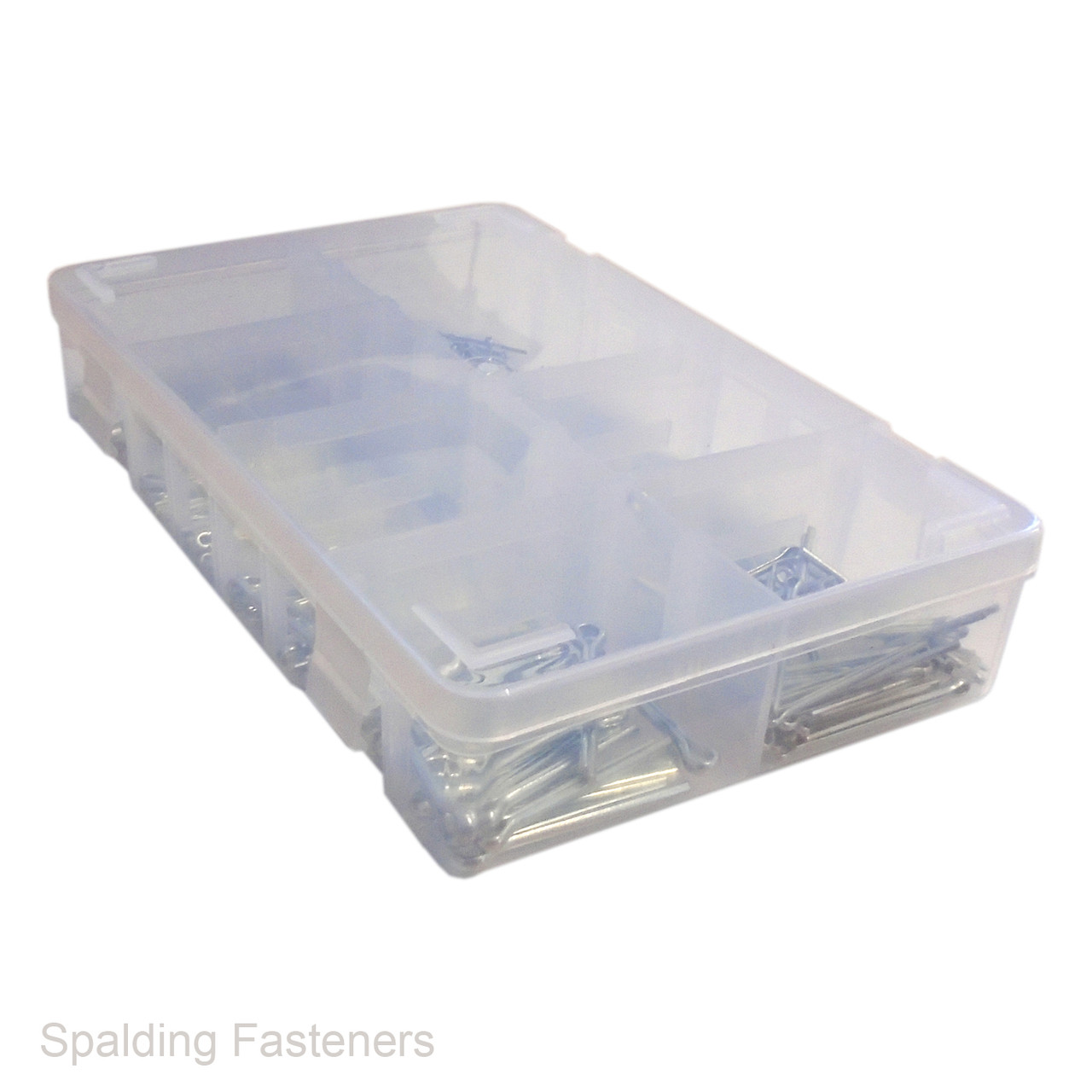

- Boxed assortment: Supplied in a plastic storage box with dividers and a clip-down lid.

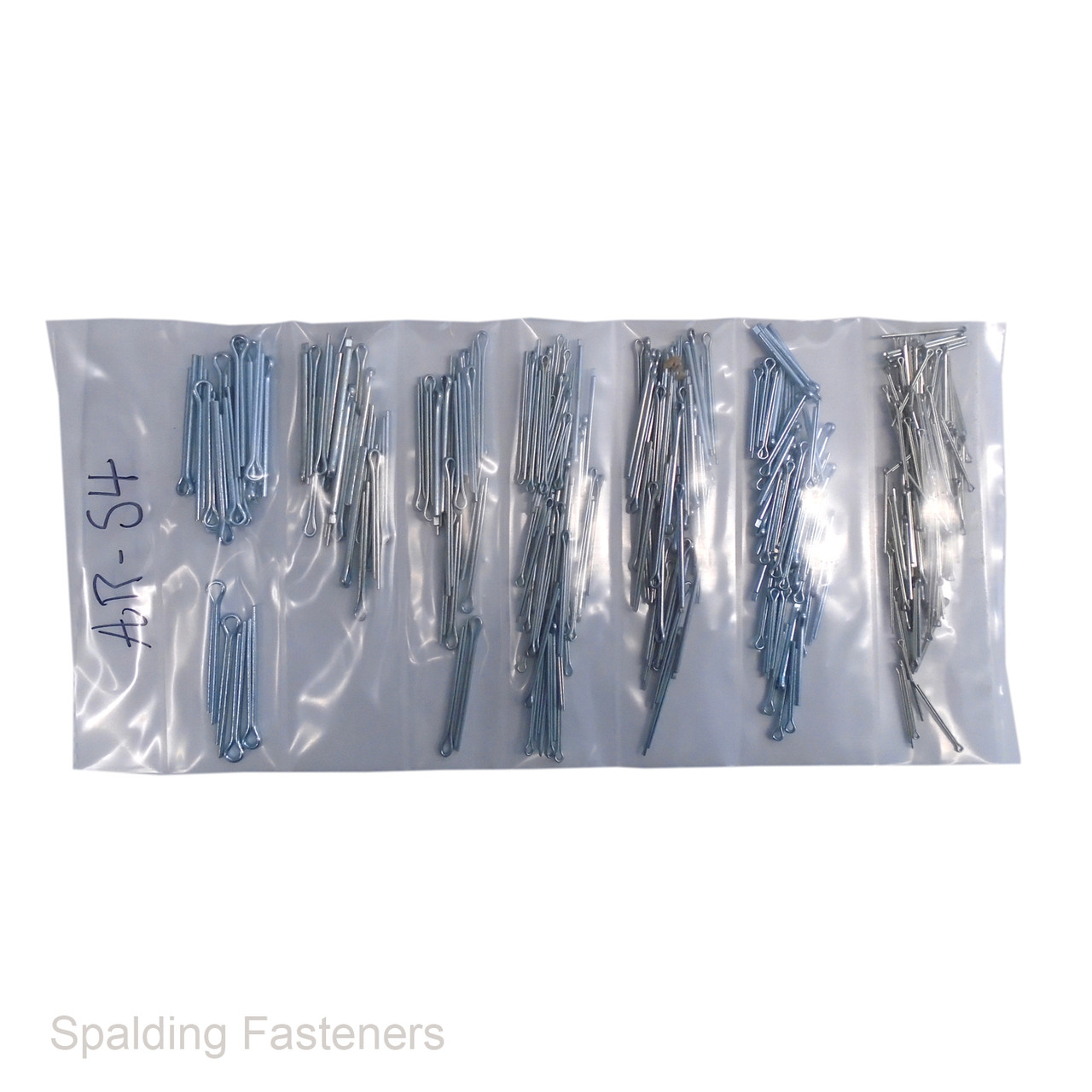

- Refill pack: Supplied without a storage box.
Fitting Information
Select the correct pin diameter and length for the assembly. Insert the pin through the retaining hole and bend the legs as required by the equipment's fitting instructions. Fit a new split pin after removal rather than straightening and reusing the old pin.
