Product Description

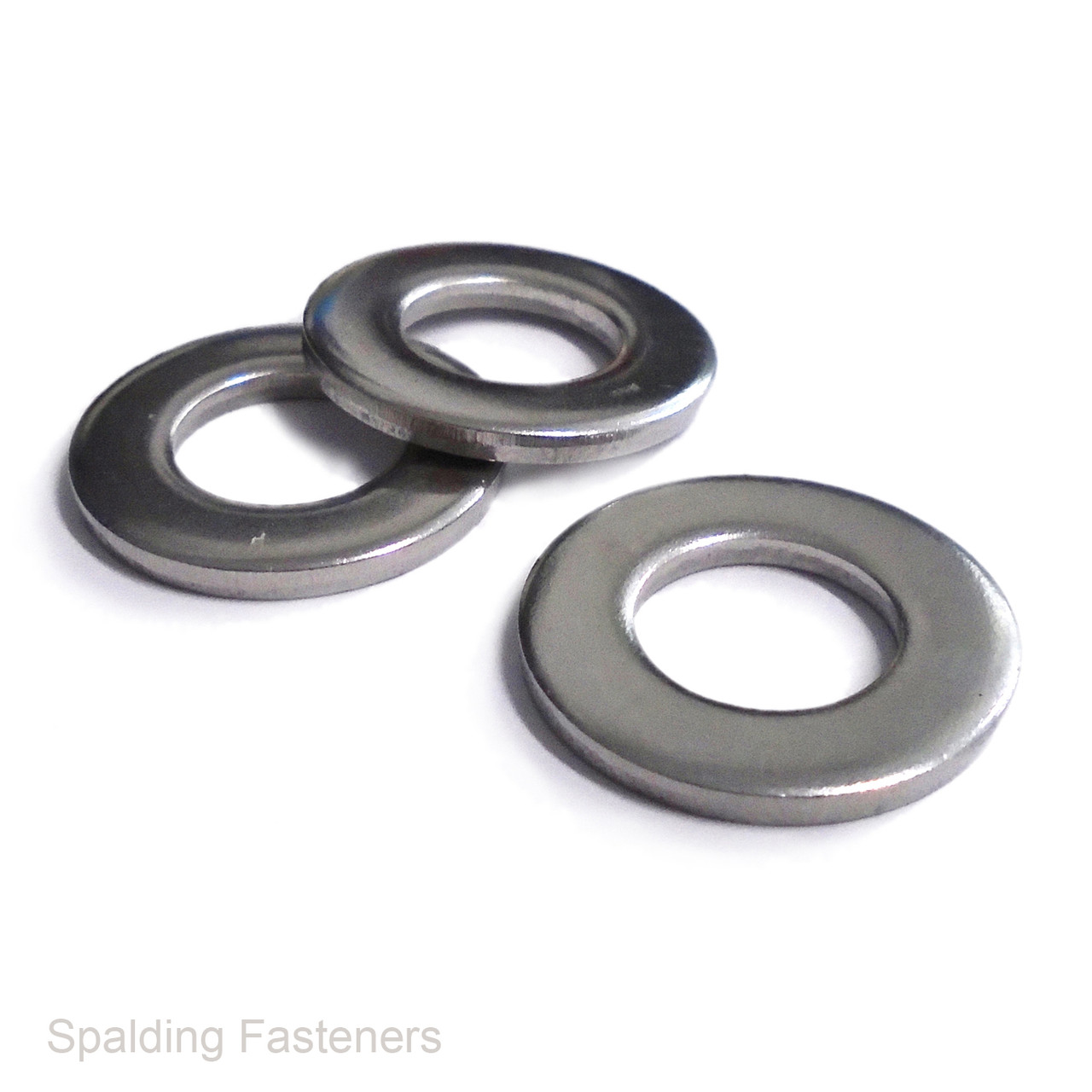

800 Assorted A2 Stainless Steel Flat & Spring Washers M3–M10
A useful workshop selection combining flat and square-section spring washers in six metric sizes.
Specifications
- Material: A2 stainless steel.
- Flat washers: DIN 125A, Form A.
- Spring washers: DIN 7980, square section.
- Sizes: M3, M4, M5, M6, M8 and M10.
- Total: 800 washers.
Pack Contents
| Size | Flat Washers | Spring Washers |
|---|---|---|
| M3 | 100 | 100 |
| M4 | 100 | 100 |
| M5 | 75 | 75 |
| M6 | 75 | 75 |
| M8 | 25 | 25 |
| M10 | 25 | 25 |
| Totals | 400 | 400 |
Flat Washer Dimensions
Nominal dimensions in millimetres.
| Size | Internal Diameter | Outside Diameter | Thickness |
|---|---|---|---|
| M3 | 3.2 | 7 | 0.5 |
| M4 | 4.3 | 9 | 0.8 |
| M5 | 5.3 | 10 | 1.0 |
| M6 | 6.4 | 12 | 1.6 |
| M8 | 8.4 | 16 | 1.6 |
| M10 | 10.5 | 20 | 2.0 |
Sizing
The M-size identifies the matching nominal bolt diameter. Check the available bearing surface and assembly requirements when selecting washers.
Packaging
Choose a divided plastic box with a clip-down lid or a refill pack without the box.
