Product Description

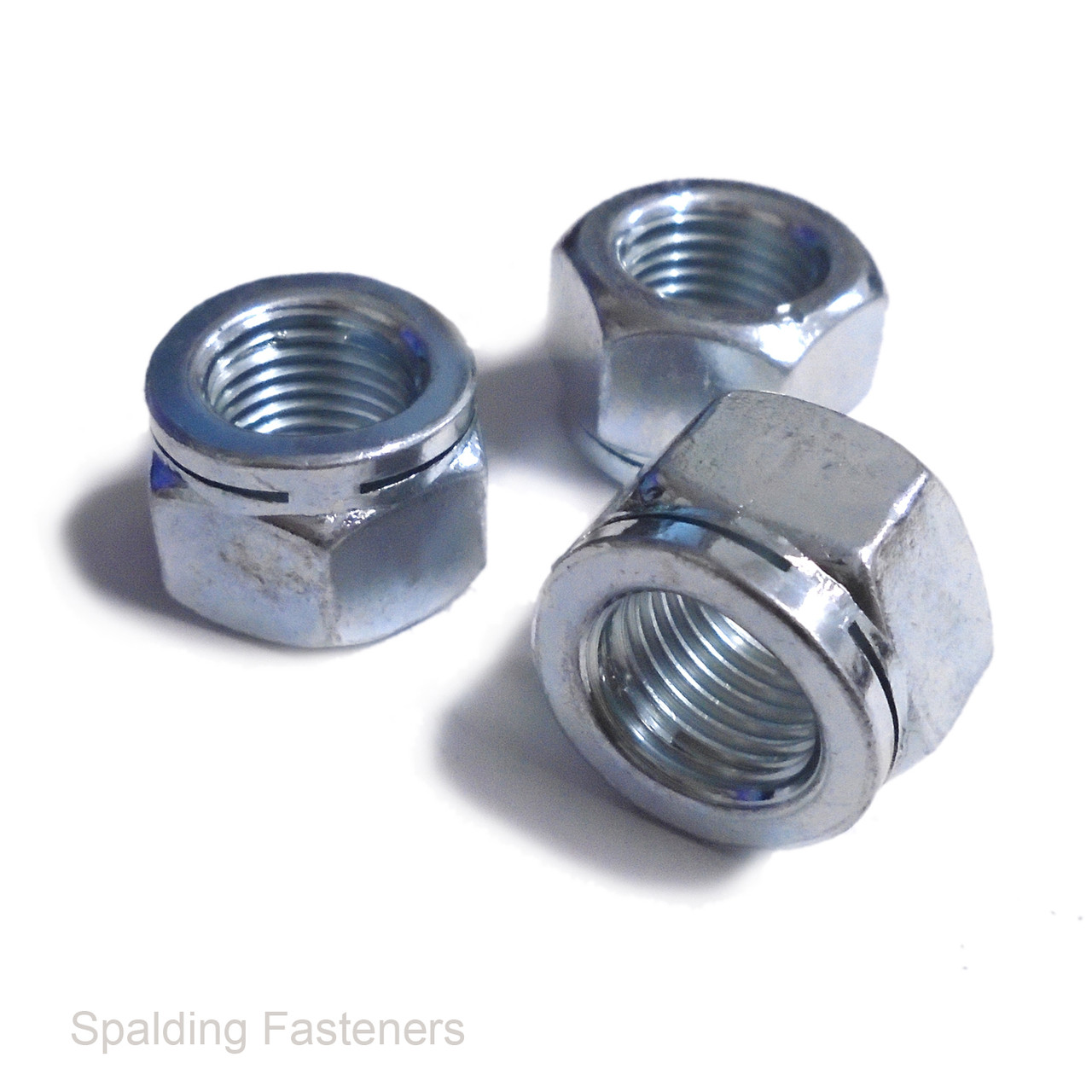

UNF Philidas All Metal Locking Nuts – Grade 5 Zinc Plated Steel
UNF Philidas industrial self-locking nuts manufactured from Grade 5 high tensile steel with a zinc plated finish. The all-metal locking feature provides resistance to loosening without a nylon insert.
Specifications
- Type: Philidas industrial all-metal self-locking nut
- Material: High tensile steel
- Grade: 5
- Finish: Zinc plated
- Thread: UNF imperial fine
- Drive: External hexagon
Thread Sizes and Spanner Sizes
| Thread Size | Threads Per Inch | Spanner Size Across Flats |
|---|---|---|
| 1/4" UNF | 28 TPI | 7/16" |
| 5/16" UNF | 24 TPI | 1/2" |
| 3/8" UNF | 24 TPI | 9/16" |
| 7/16" UNF | 20 TPI | 11/16" |
| 1/2" UNF | 20 TPI | 3/4" |
Fitting
Use with matching UNF bolts or studs. Ensure the male thread fully engages the locking section and use the correct imperial spanner or socket.
Ordering
Select your required thread size and pack quantity from the available options.
