Product Description

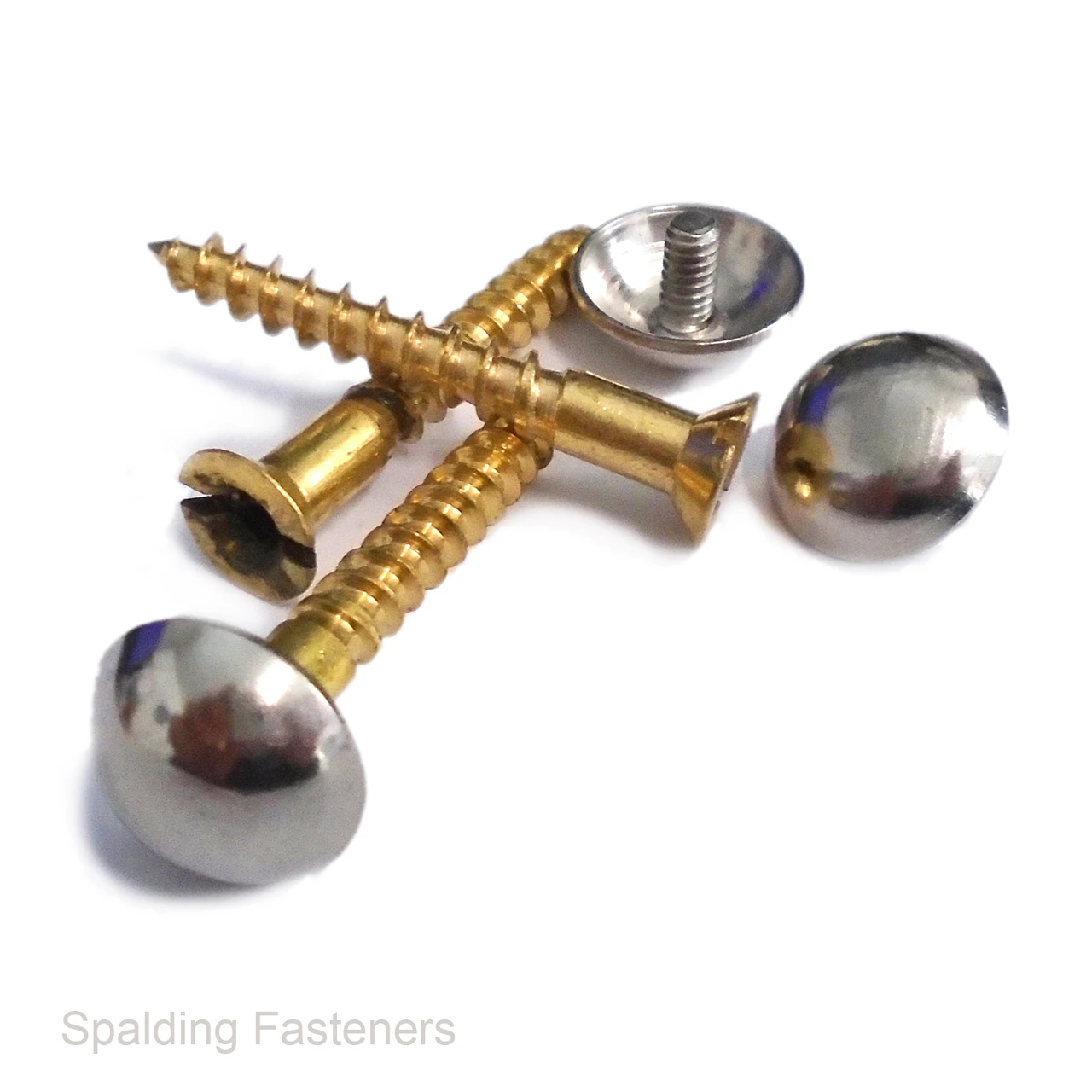

No.8 Brass Mirror Wood Screws with Chrome Plated Caps – 4.2mm
These No.8 brass mirror screws combine a slotted countersunk wood screw with a separate chrome plated dome cap. The cap screws into the threaded recess in the screw head, concealing the slot and providing a neat decorative finish.
Suitable for fixing pre-drilled mirrors and decorative panels to timber, these screws have a listed diameter of 4.2mm and are available in five imperial lengths from 3/4 inch to 2 inches.
Key Features
- Brass wood screw: Traditional brass construction with a pointed wood screw thread.
- Chrome plated dome cap: Covers the screw head for a tidy finished appearance.
- Slotted countersunk head: Installed using a suitable flat-bladed screwdriver.
- Threaded cap fitting: The decorative cap screws into the recess in the screw head.
- No.8 size: Listed screw diameter of 4.2mm.
- Choice of lengths and pack sizes: Select the required options for your project.
Technical Specifications
| Product Type | Mirror wood screw with decorative cap |
|---|---|
| Screw Size | No.8 |
| Listed Screw Diameter | 4.2mm |
| Screw Material | Brass |
| Screw Head | Countersunk |
| Drive Type | Slotted |
| Cap Style | Dome |
| Cap Finish | Chrome plated |
| Cap Attachment | Screws into the threaded recess in the screw head |
| Length Measurement | Total screw length including the countersunk head, excluding the decorative cap |
Available Screw Lengths
| Screw Size | Imperial Length | Metric Equivalent |
|---|---|---|
| No.8 | 3/4 inch | 19.05mm |
| No.8 | 1 inch | 25.4mm |
| No.8 | 1 1/4 inches | 31.75mm |
| No.8 | 1 1/2 inches | 38.1mm |
| No.8 | 2 inches | 50.8mm |
Metric equivalents are conversions of the stated imperial lengths.
Typical Applications
- Fixing pre-drilled mirrors to timber backing.
- Decorative panels and display fittings.
- Interior fittings where a chrome cap is required to conceal the screw head.
- Replacing matching brass mirror screws and chrome caps.
Selecting and Installing Your Mirror Screws
Choose a screw length that allows sufficient engagement in the timber after passing through the mirror, panel and any backing or spacers. Prepare a suitable pilot hole and use a screwdriver blade that fits the slot correctly.
When fitting glass mirrors, use suitable protective sleeves or washers to keep the metal fixing from bearing directly against the glass. Tighten carefully, then screw the decorative cap into the head by hand.
Select your required screw length and pack quantity from the available options. Browse our mirror screws or explore our wider wood screw range for other sizes and styles.
