Product Description

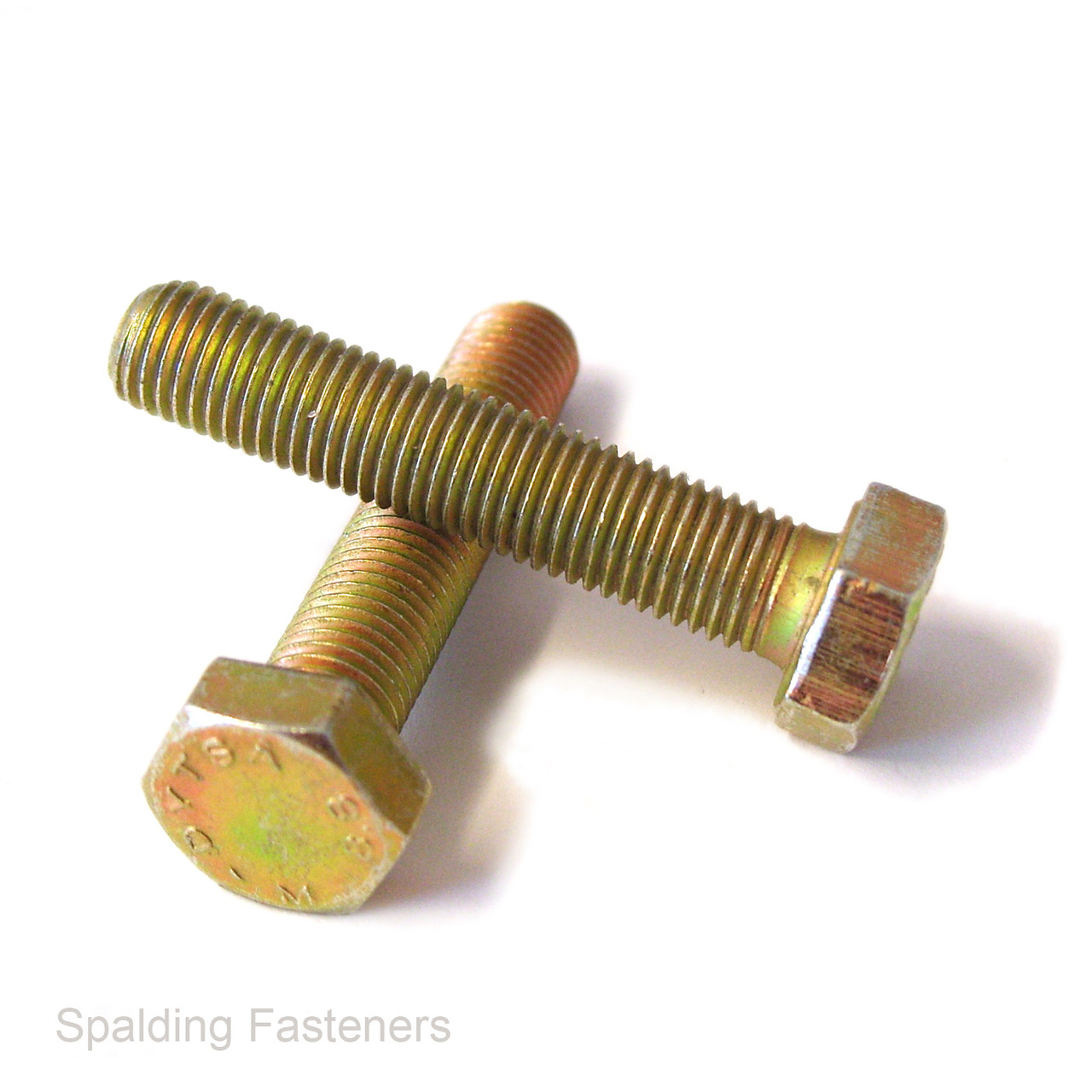

5/8 Inch UNF Grade 8 Yellow Zinc Hex Set Screws
These 5/8 inch UNF Grade 8 hexagon head set screws are manufactured from high tensile alloy steel with a yellow zinc plated finish. They feature an imperial fine thread with 18 threads per inch and a hexagon head suitable for a 15/16 inch spanner or socket.
Suitable for machinery, engineering and maintenance work requiring Grade 8 imperial UNF fasteners. Select the required length and pack quantity from the available options.
Technical Specifications
| Thread Diameter | 5/8 inch |
|---|---|
| Thread Type | UNF – Unified National Fine |
| Thread Size | 5/8-18 UNF |
| Threads Per Inch | 18 TPI |
| Strength Grade | Grade 8 – SAE J429 |
| Material | High tensile alloy steel |
| Finish | Yellow zinc plated |
| Head Style | Hexagon |
| Spanner Size | 15/16 inch |
| Dimensional Standard | ANSI B18.2.1 |
Ordering: Choose the required length and pack size. Check that the mating nut or tapped hole has a matching 5/8-18 UNF thread.
