Product Description

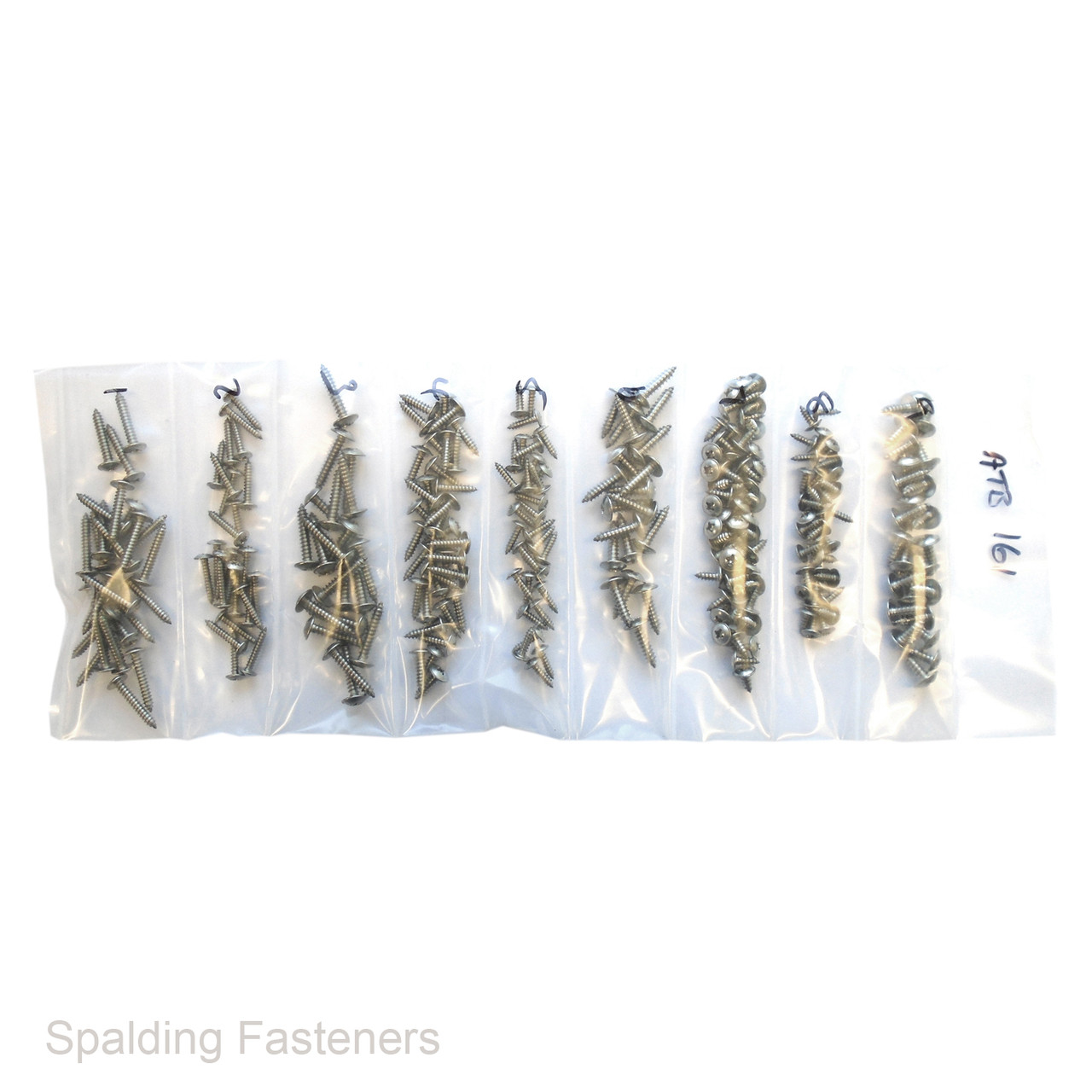

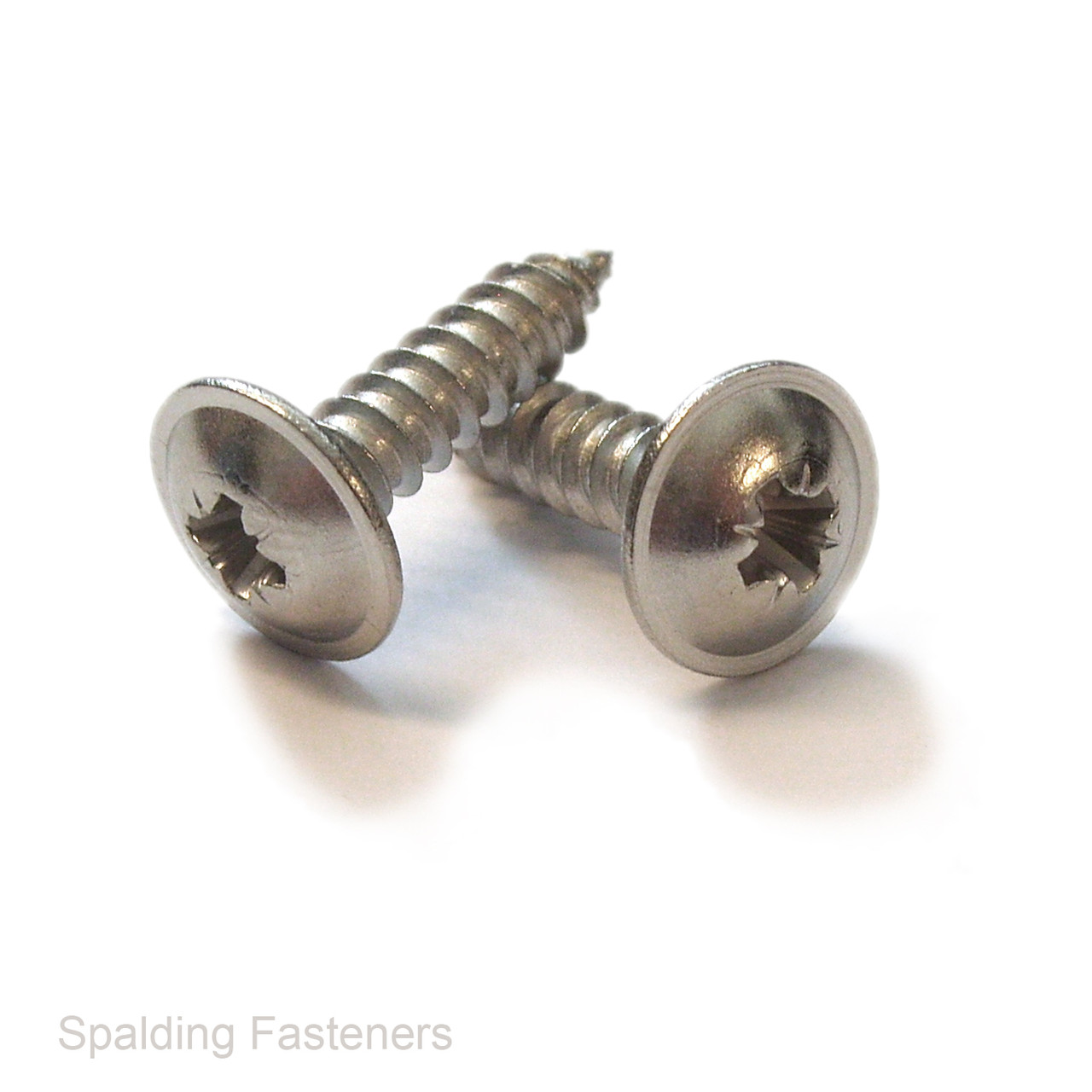

A2 Stainless Steel Pozi Flange Self Tapping Screw Assortment – 270 Pieces
A 270-piece assortment of A2 stainless steel Pozi flange self tapping screws in No.6, No.8 and No.10 sizes. The integral flange provides a broad bearing surface beneath the head.
Technical Specifications
- Material: A2 stainless steel
- Head style: Flanged
- Drive: Pozi PZ2
- Thread and point: Type AB self tapping
- Standard: BS 4174
- Total quantity: 270 screws
Assortment Contents
| Screw Size | Nominal Diameter x Length | Quantity |
|---|---|---|
| No.6 x 3/8 inch | 3.5 x 9.5mm | 35 |
| No.6 x 1/2 inch | 3.5 x 13mm | 30 |
| No.6 x 3/4 inch | 3.5 x 19mm | 25 |
| No.8 x 3/8 inch | 4.2 x 9.5mm | 50 |
| No.8 x 5/8 inch | 4.2 x 16mm | 35 |
| No.8 x 1 inch | 4.2 x 25mm | 25 |
| No.10 x 1/2 inch | 4.8 x 13mm | 25 |
| No.10 x 3/4 inch | 4.8 x 19mm | 25 |
| No.10 x 1 inch | 4.8 x 25mm | 20 |
Flange Dimensions and Drive Sizes
| Screw Size | Flange Diameter | Pozi Bit |
|---|---|---|
| No.6 – 3.5mm | 7.70–8.15mm | PZ2 |
| No.8 – 4.2mm | 9.24–9.75mm | PZ2 |
| No.10 – 4.8mm | 10.80–11.38mm | PZ2 |
Packaging Options
- Boxed kit: Plastic storage box with dividers and a clip-down lid.
- Refill pack: Supplied without a box.
Use a suitably sized pilot hole for the material and a PZ2 driver bit for installation.
