Product Description

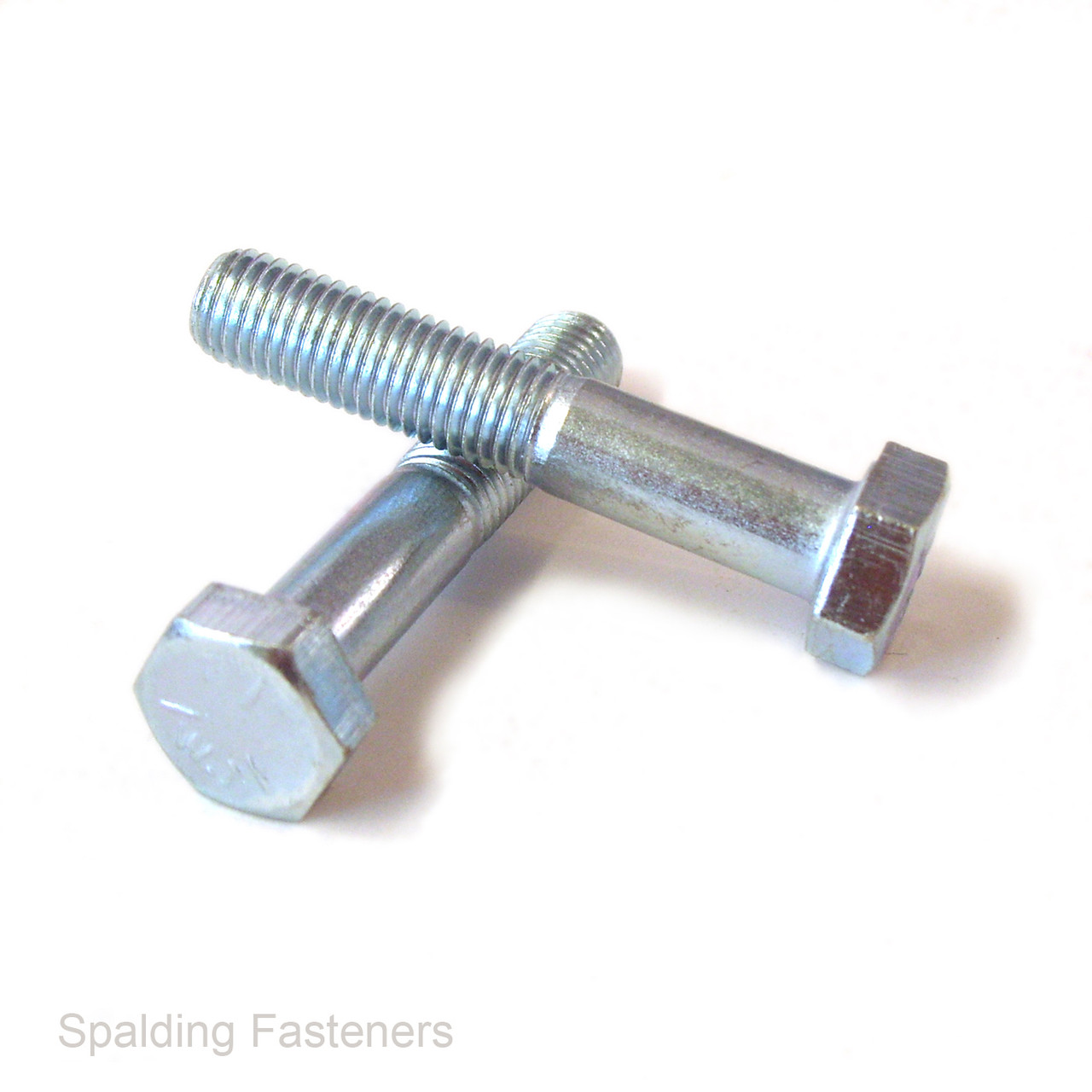

M16 metric coarse 8.8 high tensile zinc plated steel hexagon head bolts to DIN 931, with a part threaded shank.
These part threaded hexagon bolts are manufactured from Grade 8.8 high tensile steel for good strength in engineering, automotive, machinery, fabrication, construction and maintenance applications. The zinc plated finish provides general corrosion resistance for indoor and protected environments.
- M16 metric coarse thread hexagon bolts
- Grade 8.8 high tensile steel
- Zinc plated finish for general corrosion resistance
- DIN 931 part threaded hexagon bolt pattern
- M16 x 2mm standard metric coarse thread
- 24mm A/F hexagon head size
- 10mm head height
- Available in lengths from 50mm to 250mm
| A | B | C | D | E | F | G |
| 16mm | 100mm | 38mm | 24mm | 10mm | 2 | 62mm |
| 16mm | 110mm | 38mm | 24mm | 10mm | 2 | 72mm |
| 16mm | 120mm | 38mm | 24mm | 10mm | 2 | 78mm |
| 16mm | 130mm | 38mm | 24mm | 10mm | 2 | 92mm |
| 16mm | 140mm | 38mm | 24mm | 10mm | 2 | 102mm |
| 16mm | 160mm | 38mm | 24mm | 10mm | 2 | 122mm |
| 16mm | 180mm | 38mm | 24mm | 10mm | 2 | 142mm |
| 16mm | 200mm | 38mm | 24mm | 10mm | 2 | 162mm |
| 16mm | 50mm | 38mm | 24mm | 10mm | 2 | 22mm |
| 16mm | 60mm | 38mm | 24mm | 10mm | 2 | 22mm |
| 16mm | 70mm | 38mm | 24mm | 10mm | 2 | 32mm |
| 16mm | 75mm | 38mm | 24mm | 10mm | 2 | 37mm |
| 16mm | 80mm | 38mm | 24mm | 10mm | 2 | 42mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
