Product Description
Metric Copper Crush Washer Assortment – 6–22mm

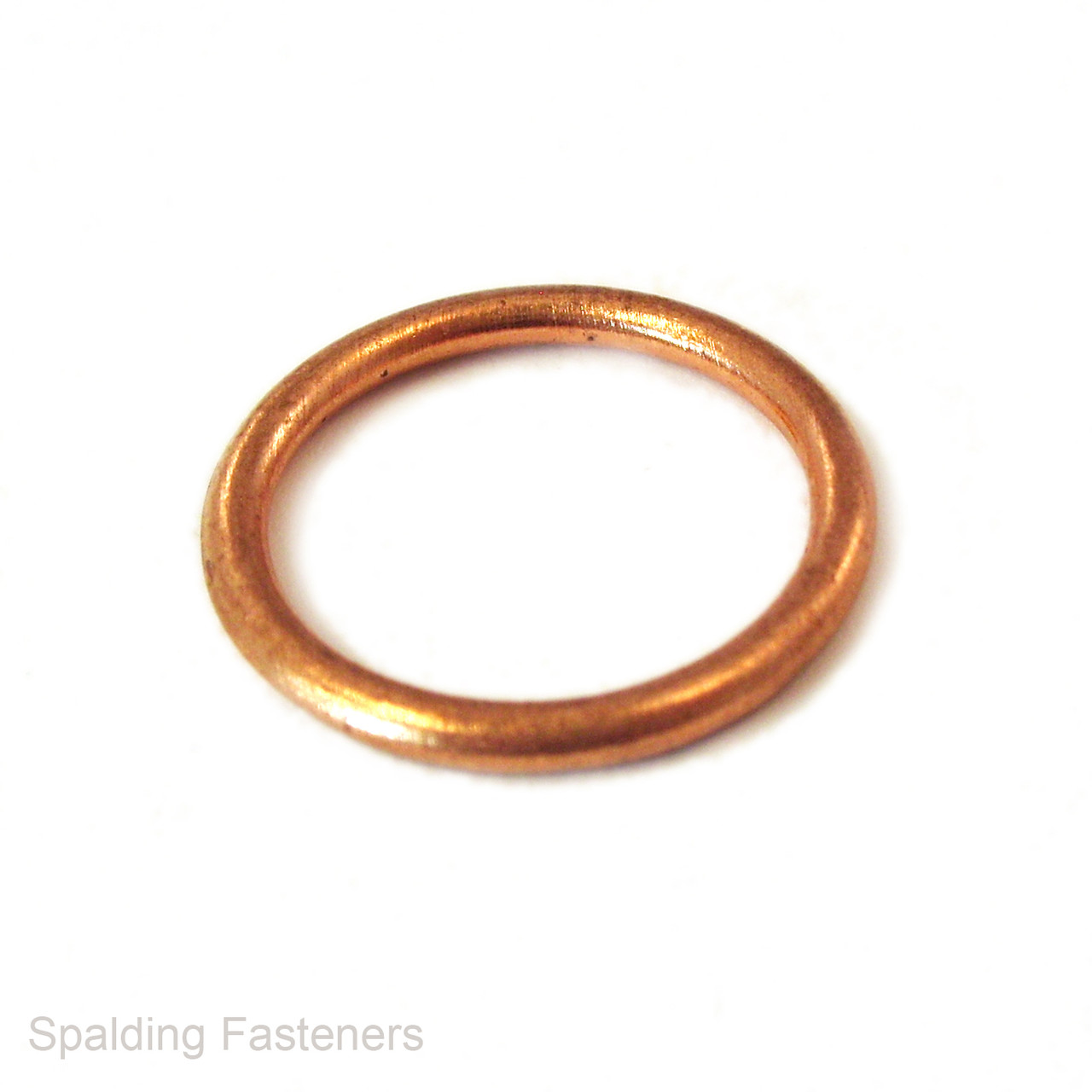

An assortment of copper crushable washers in nine metric sizes, with internal diameters from 6mm to 22mm. A practical selection for maintenance and repairs where a matching copper sealing washer is required.
The contents table lists the internal diameter, outside diameter and thickness of each size, helping you select a replacement that matches the original washer.
Specifications
- Material: Copper.
- Type: Crushable washers.
- Size system: Metric.
- Internal diameters: 6mm to 22mm.
- Thicknesses: 1.5mm and 2mm.
- Selection: Nine sizes.
Contents and Dimensions
All dimensions are in millimetres. Thickness is stated before compression.
| Internal Diameter | Outside Diameter | Thickness | Quantity |
|---|---|---|---|
| 6mm | 10mm | 1.5mm | 10 |
| 8mm | 12mm | 1.5mm | 15 |
| 10mm | 14mm | 1.5mm | 12 |
| 12mm | 17mm | 2mm | 12 |
| 14mm | 20mm | 2mm | 8 |
| 16mm | 22mm | 2mm | 10 |
| 18mm | 24mm | 2mm | 15 |
| 20mm | 26mm | 2mm | 8 |
| 22mm | 27mm | 2mm | 10 |
Packaging Options

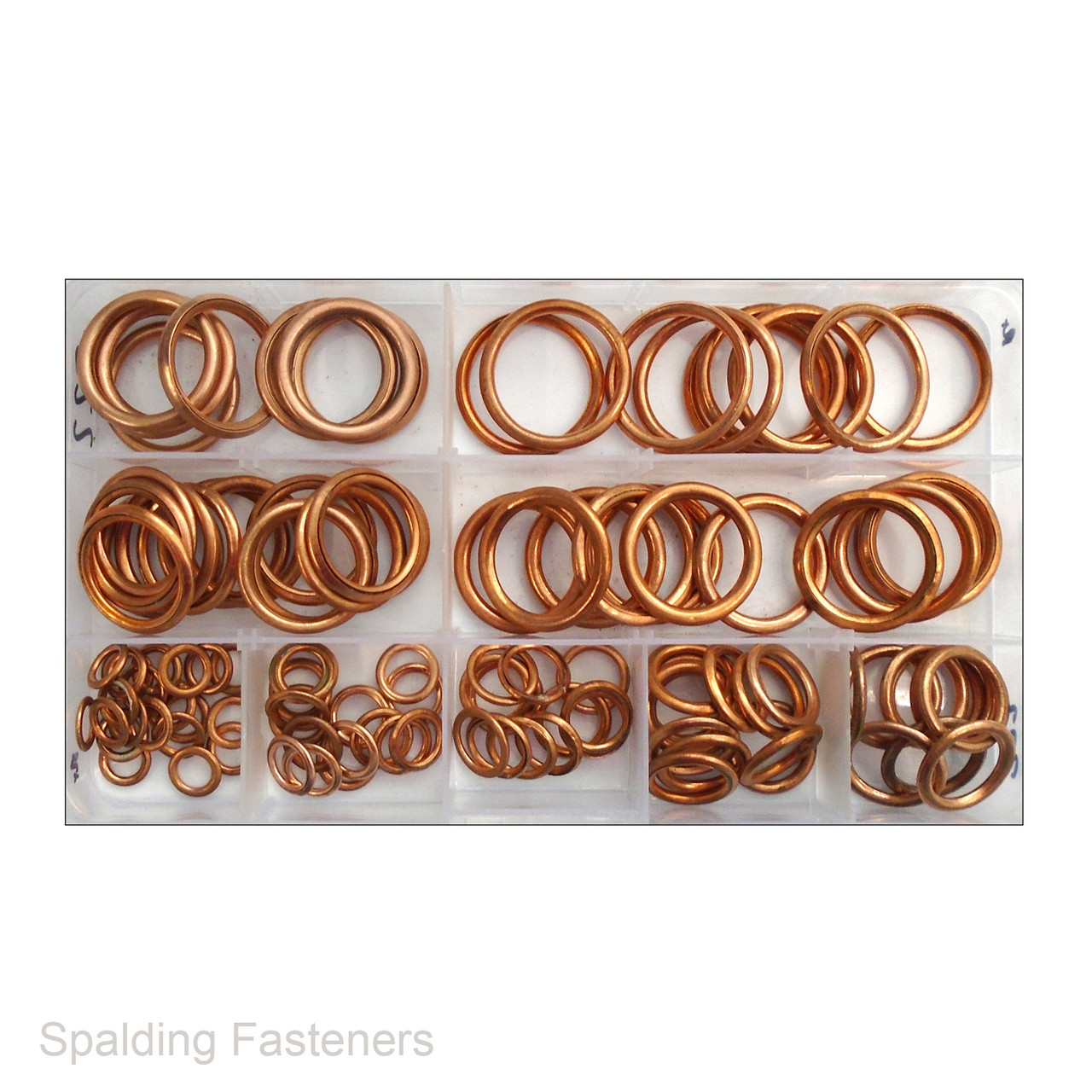

- Boxed kit: Supplied in a divided plastic storage box with a clip-down lid.

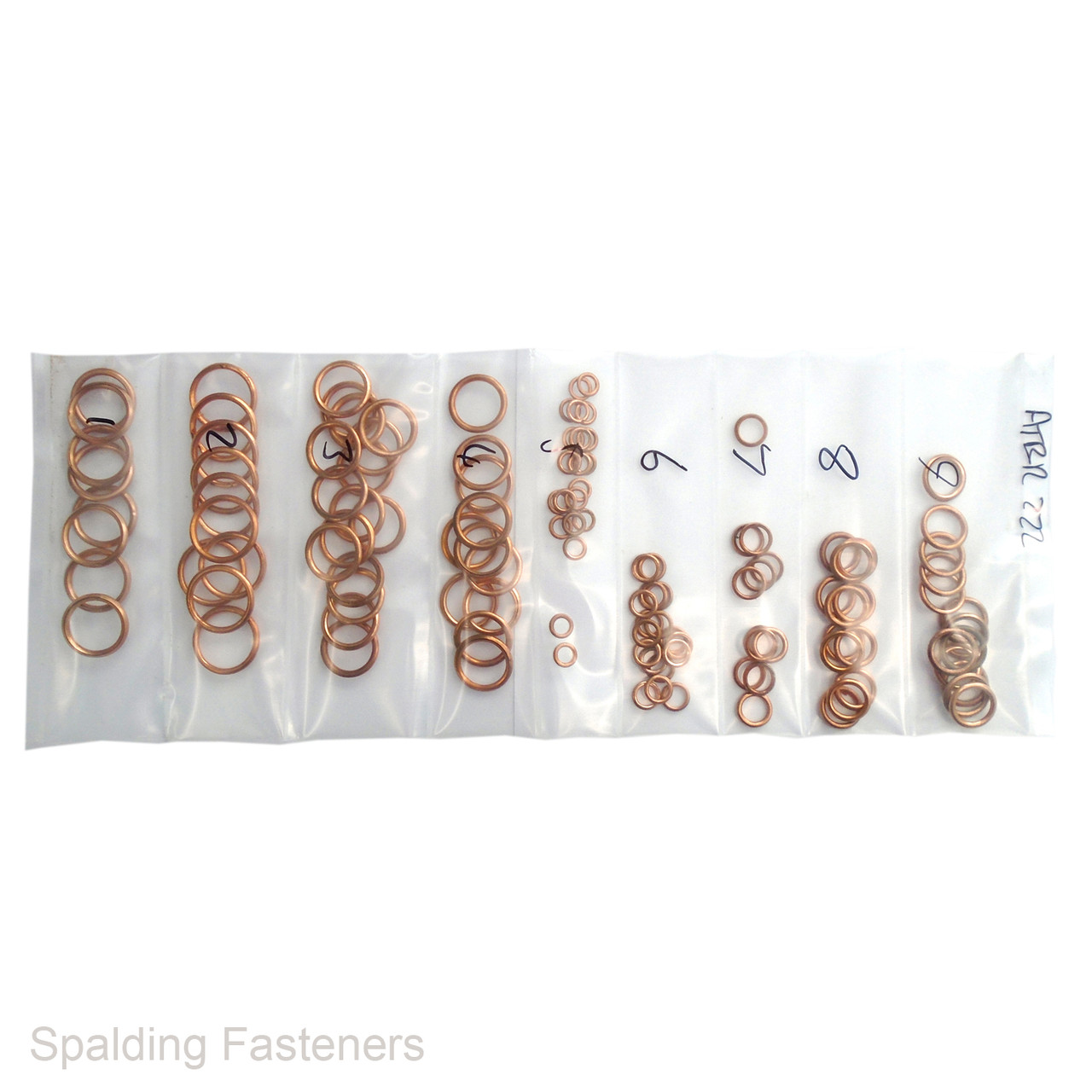

- Refill pack: Supplied without a storage box.
Match all three washer dimensions to the requirements of your fitting. Select the boxed kit or refill pack when ordering.
