Product Description
120 Piece Zinc Plated Steel Rivet Nut Kit – M4 to M8
A practical assortment of metric rivet nuts for creating threaded fixing points in thin sheet materials. Includes M4, M5, M6 and M8 sizes with grooved bodies and large flange heads.
Rivet nuts install from one side of the workpiece using a suitable setting tool. The body deforms behind the material to secure the insert, allowing a matching bolt or machine screw to be fitted.
Specifications
- Material: Steel
- Finish: Zinc plated
- Body type: Grooved
- Head style: Large flange
- Thread: Metric coarse
- Total contents: 120 rivet nuts

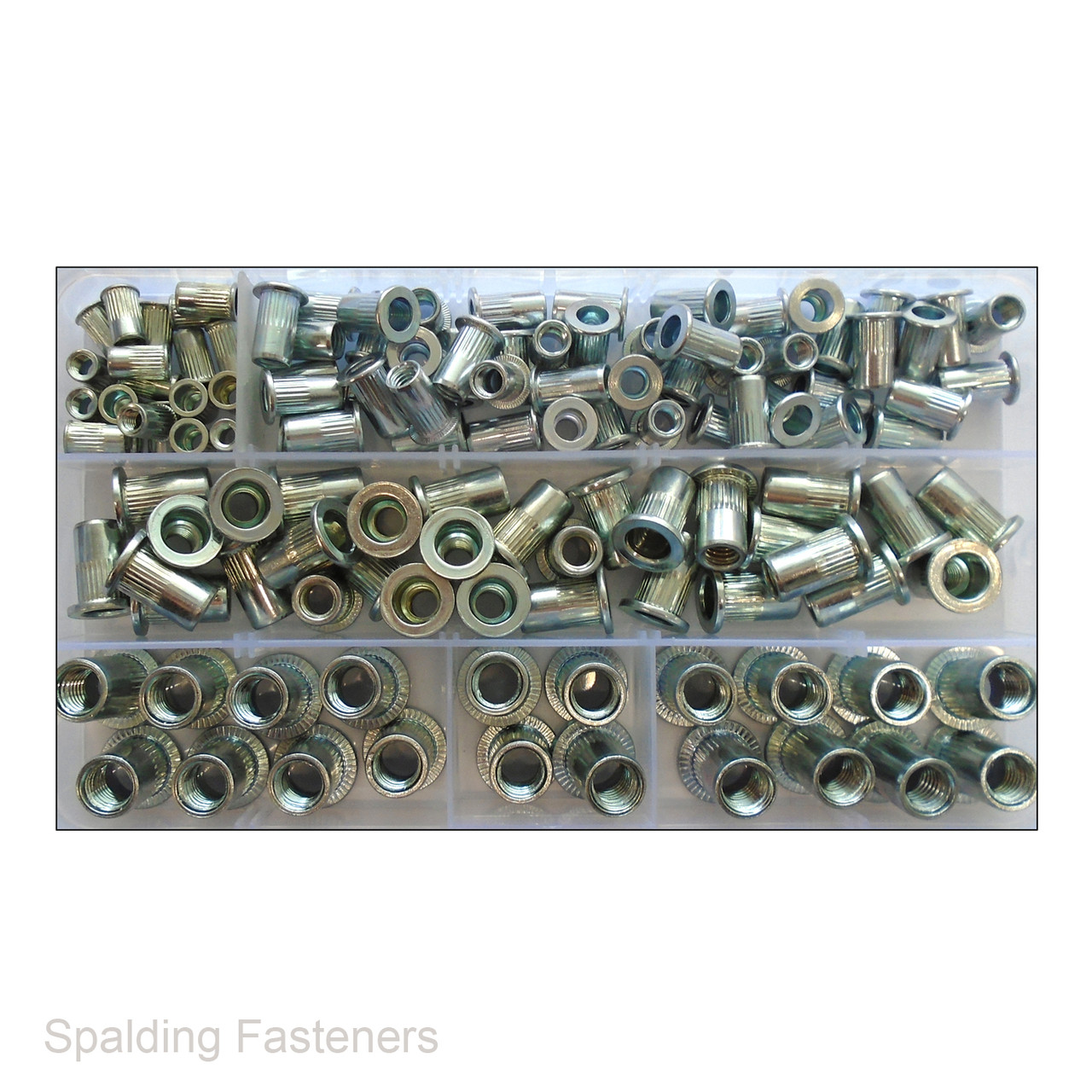

Kit Contents and Grip Ranges
| Thread Size | Thread Pitch | Grip Range | Quantity |
|---|---|---|---|
| M4 | 0.7mm | 0.3–3mm | 20 |
| M5 | 0.8mm | 0.3–3mm | 50 |
| M6 | 1.0mm | 0.5–3mm | 30 |
| M8 | 1.25mm | 0.5–3mm | 20 |

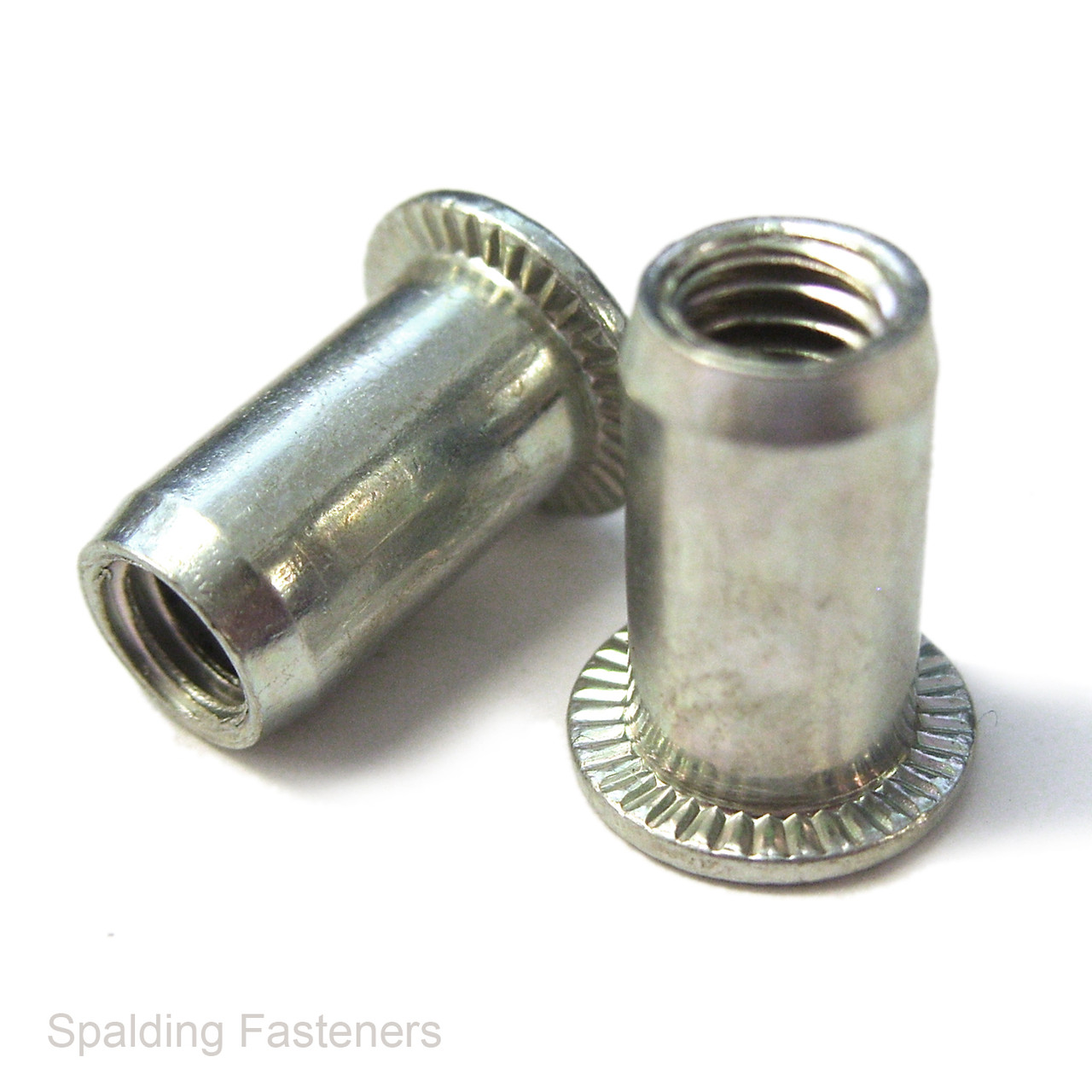

Rivet Nut Dimensions
| Thread Size | Body Length Below Flange | Flange Diameter | Flange Thickness |
|---|---|---|---|
| M4 | 10mm | 8.7mm | 0.8mm |
| M5 | 11mm | 9.8mm | 0.8mm |
| M6 | 14mm | 12.4mm | 1.2mm |
| M8 | 16mm | 15.8mm | 1.4mm |
Selecting the Correct Size
Choose the thread size to match your bolt or screw, and ensure the material thickness falls within the stated grip range. The nominal thread size is not the installation hole diameter.
Packaging Options

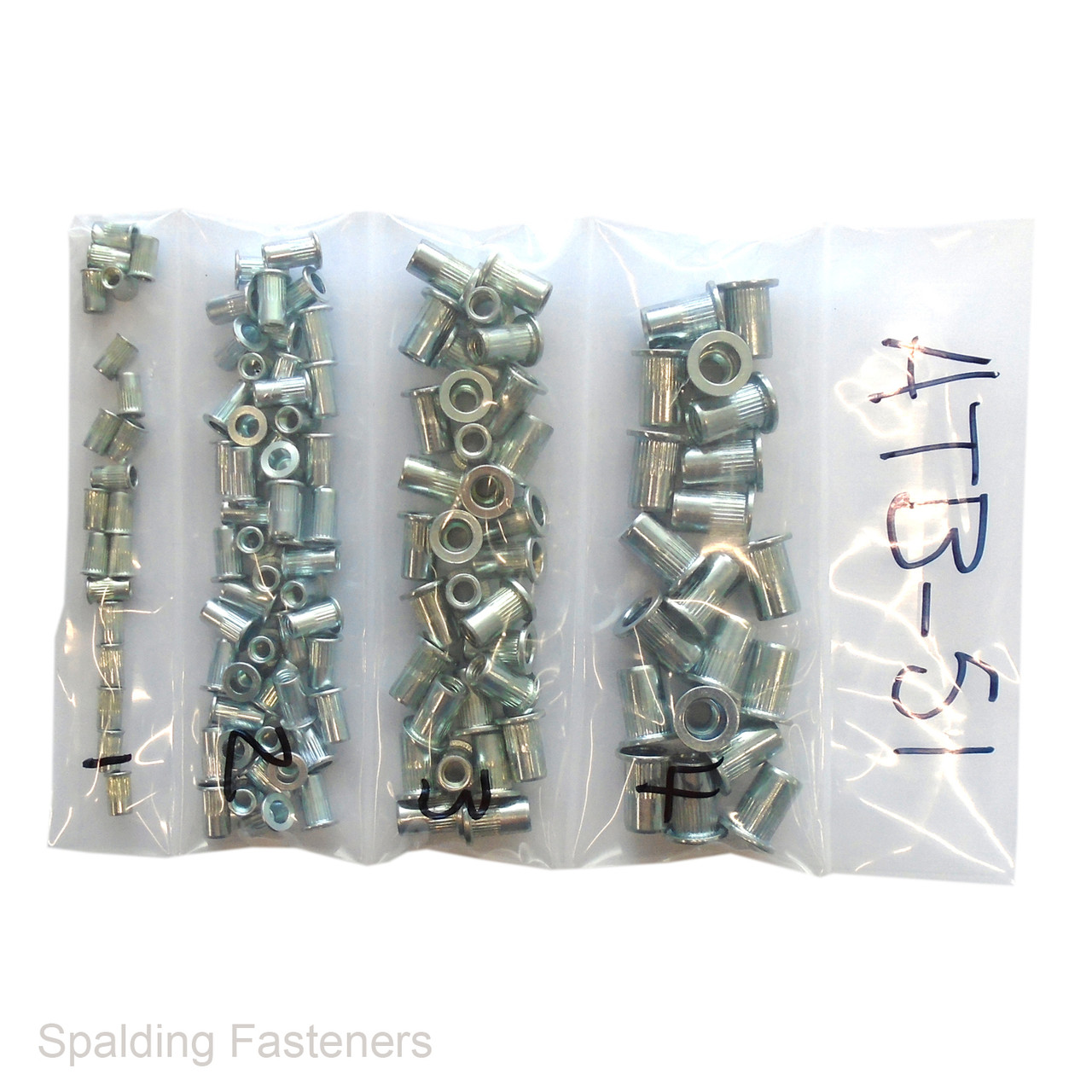

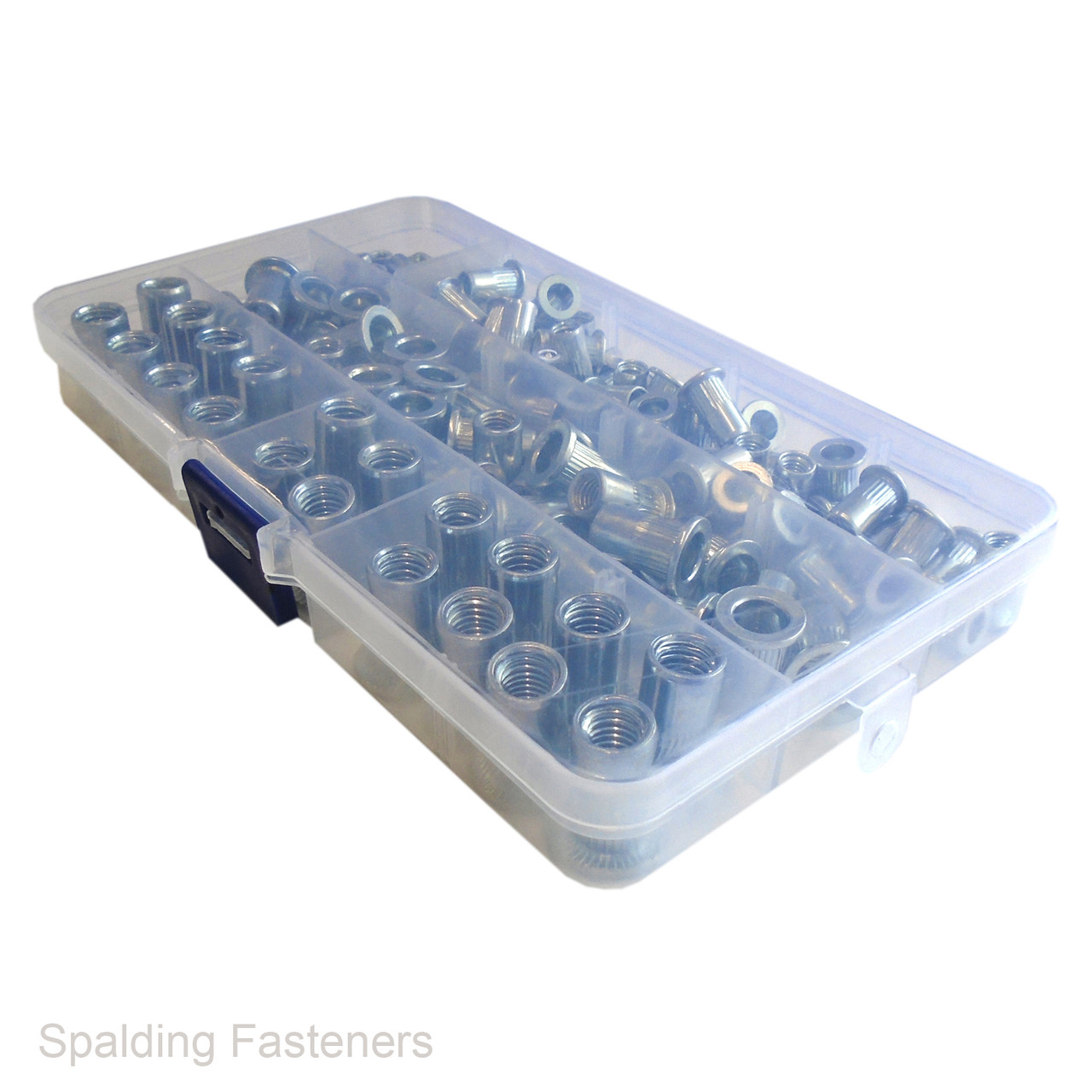

Choose a plastic storage box with dividers and a clip-down lid, or a refill pack supplied without a box.
