Product Description

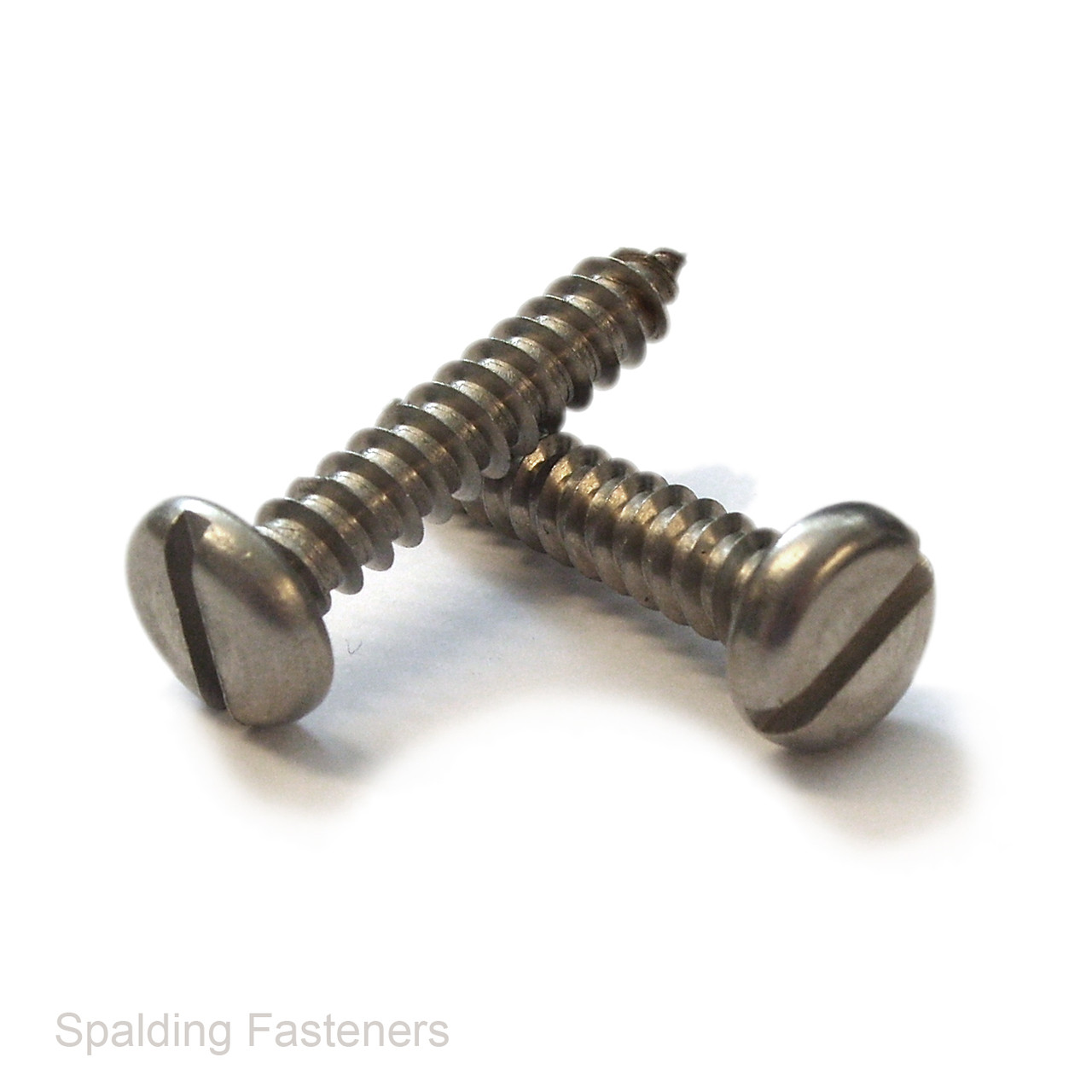

Stainless Steel Slotted Pan Head Self Tapping Screw Assortment – 310 Pieces
Keep useful sizes together with this stainless steel self tapping screw assortment. The kit contains No.6, No.8 and No.10 screws in three lengths, each with a raised pan head and traditional slotted drive.
Choose a divided plastic storage box with a clip-down lid, or select the refill option to replenish an existing organiser.
Product Specifications
- Material: Stainless steel
- Head type: Pan head
- Drive: Slotted
- Thread type: Self tapping
- Sizes: No.6, No.8 and No.10
- Lengths: 1/2", 3/4" and 1"
- Total quantity: 310 screws
Kit Contents
| Imperial Size | Approximate Metric Size | Quantity |
|---|---|---|
| No.6 × 1/2" | 3.5 × 13mm | 50 |
| No.6 × 3/4" | 3.5 × 19mm | 50 |
| No.6 × 1" | 3.5 × 25mm | 50 |
| No.8 × 1/2" | 4.2 × 13mm | 40 |
| No.8 × 3/4" | 4.2 × 19mm | 40 |
| No.8 × 1" | 4.2 × 25mm | 35 |
| No.10 × 1/2" | 4.8 × 13mm | 15 |
| No.10 × 3/4" | 4.8 × 19mm | 15 |
| No.10 × 1" | 4.8 × 25mm | 15 |
Slotted Pan Head Dimensions
The following reference dimensions are for DIN 7971 slotted pan head self tapping screws. All dimensions are in millimetres.
| Screw Size | Head Diameter | Head Height | Nominal Slot Width |
|---|---|---|---|
| No.6 / 3.5mm | 6.54–6.90 | 1.85–2.10 | 1.00 |
| No.8 / 4.2mm | 7.84–8.20 | 2.15–2.45 | 1.20 |
| No.10 / 4.8mm | 9.14–9.50 | 2.50–2.80 | 1.20 |
Installation
Use a suitable flat-bladed screwdriver that fits the slot securely. Select the screw size and pilot hole to suit the material and thickness being fastened. Screw length is measured from beneath the head to the tip.
Boxed Kit or Refill
Select the boxed assortment for organised storage, or choose the refill supplied without a box.
