Product Description

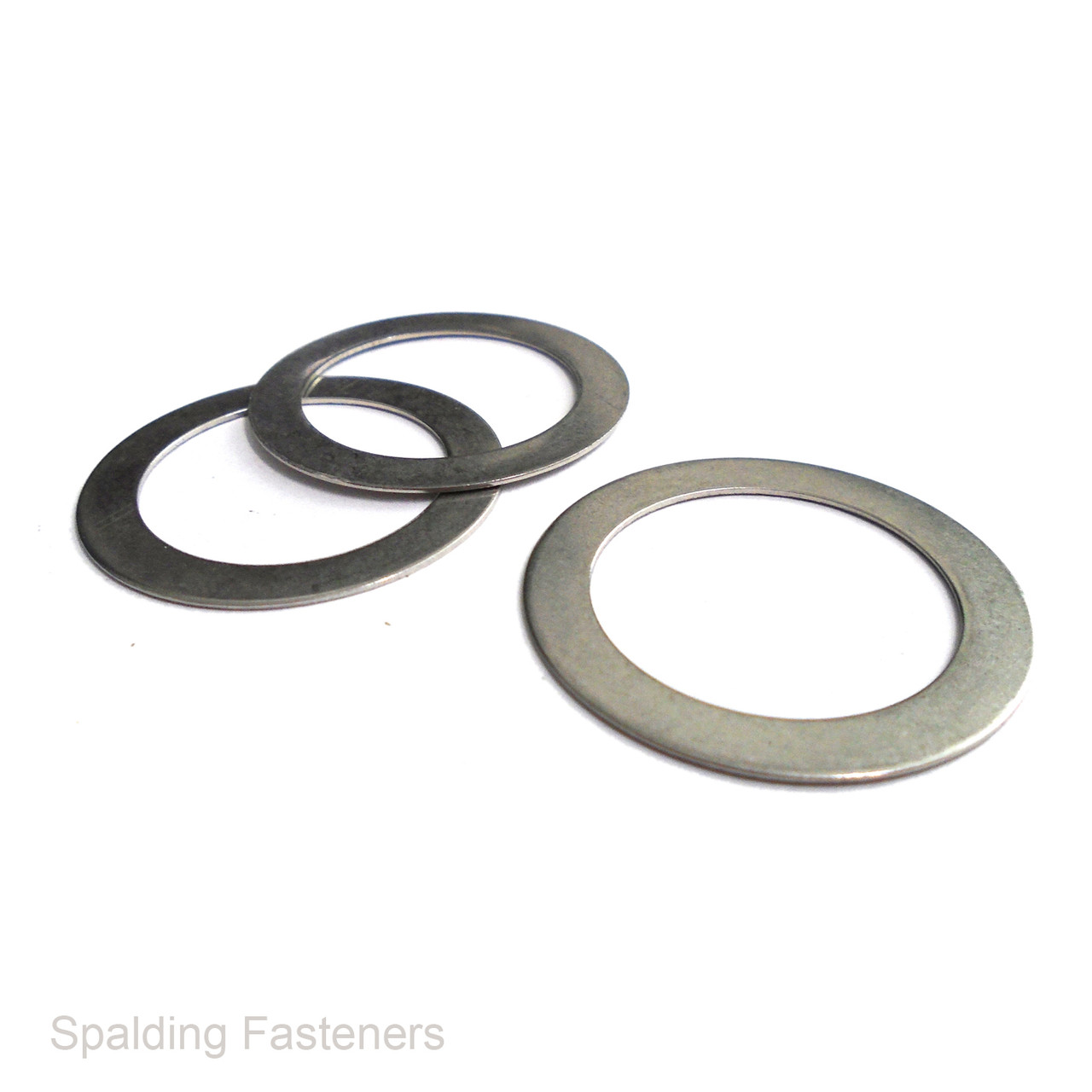

Metric A2 Stainless Steel Shim Washers – 0.5mm Thick
A2 stainless steel shim washers in a uniform nominal thickness of 0.5mm. These thin, flat washers are used for spacing components, adjusting clearances and improving alignment in mechanical assemblies.
Product Specifications
| Material | A2 stainless steel |
|---|---|
| Pattern | DIN 988 shim washer |
| Nominal Thickness | 0.5mm |
| Size Format | Internal diameter x external diameter |
Available Sizes
All dimensions below are in millimetres. Every size has a nominal thickness of 0.5mm.
| Internal Diameter | External Diameter |
|---|---|
| 4 | 8 |
| 5 | 10 |
| 6 | 12 |
| 8 | 14 |
| 10 | 16 |
| 12 | 18 |
| 14 | 20 |
| 16 | 22 |
| 17 | 24 |
| 20 | 38 |
| 22 | 30 |
| 22 | 32 |
| 25 | 35 |
| 26 | 37 |
| 28 | 40 |
| 30 | 40 |
| 32 | 45 |
| 35 | 45 |
| 40 | 50 |
| 42 | 52 |
| 50 | 62 |
Key Features
- Thin 0.5mm profile for small spacing adjustments.
- A2 stainless steel provides corrosion resistance.
- Choice of internal and external diameters to suit the assembly.
- Suitable for machinery maintenance, fabrication and general engineering.
Select by the required internal diameter, external diameter and thickness. Check the clearance needed around the mating shaft or fastener before ordering.
Choose your required size and pack quantity.
