Product Description

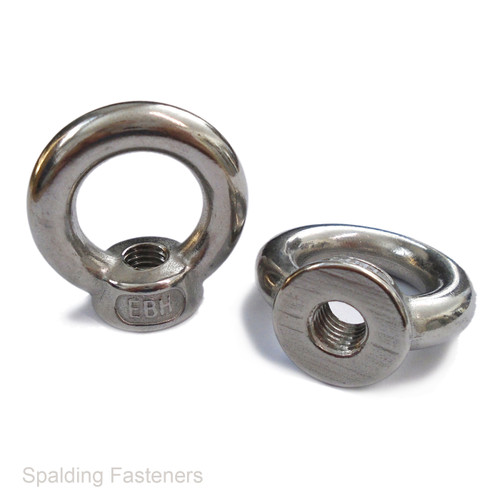

A4 316 Marine Grade Stainless Steel Eye Nuts – DIN 582 Pattern
A4/316 stainless steel eye nuts with metric coarse internal threads. The circular eye provides an attachment point when fitted to a compatible threaded stud or bolt.
A4 stainless steel offers corrosion resistance for outdoor, coastal and other exposed environments. Available in M8 and M24 thread sizes.
Technical Specifications
| Product type | Threaded eye nut |
|---|---|
| Material | A4 / 316 marine grade stainless steel |
| Thread type | Metric coarse internal thread |
| Pattern | DIN 582 pattern |
Sizes and Nominal Dimensions
| Thread Size | Thread Pitch | Eye Internal Diameter | Eye External Diameter | Overall Height |
|---|---|---|---|---|
| M8 | 1.25mm | 20mm | 36mm | 36mm |
| M24 | 3mm | 50mm | 90mm | 90mm |
Key Features
- A4/316 stainless steel construction for corrosion resistance.
- Circular eye with an internally threaded base.
- Metric coarse threads for matching studs and bolts.
- Available in M8 and M24 sizes.
Selection and Installation
Choose the required thread size and pack quantity from the available options. Ensure the eye nut seats fully against a suitable mating surface and that the threaded connection suits the application.
For lifting applications, confirm the working load limit, certification and permitted loading direction for the supplied item before use. DIN 582 pattern dimensions alone do not establish a lifting capacity.
Standard Reference
DIN 582 pattern. Dimensions are nominal; please confirm critical measurements before ordering.
