Product Description

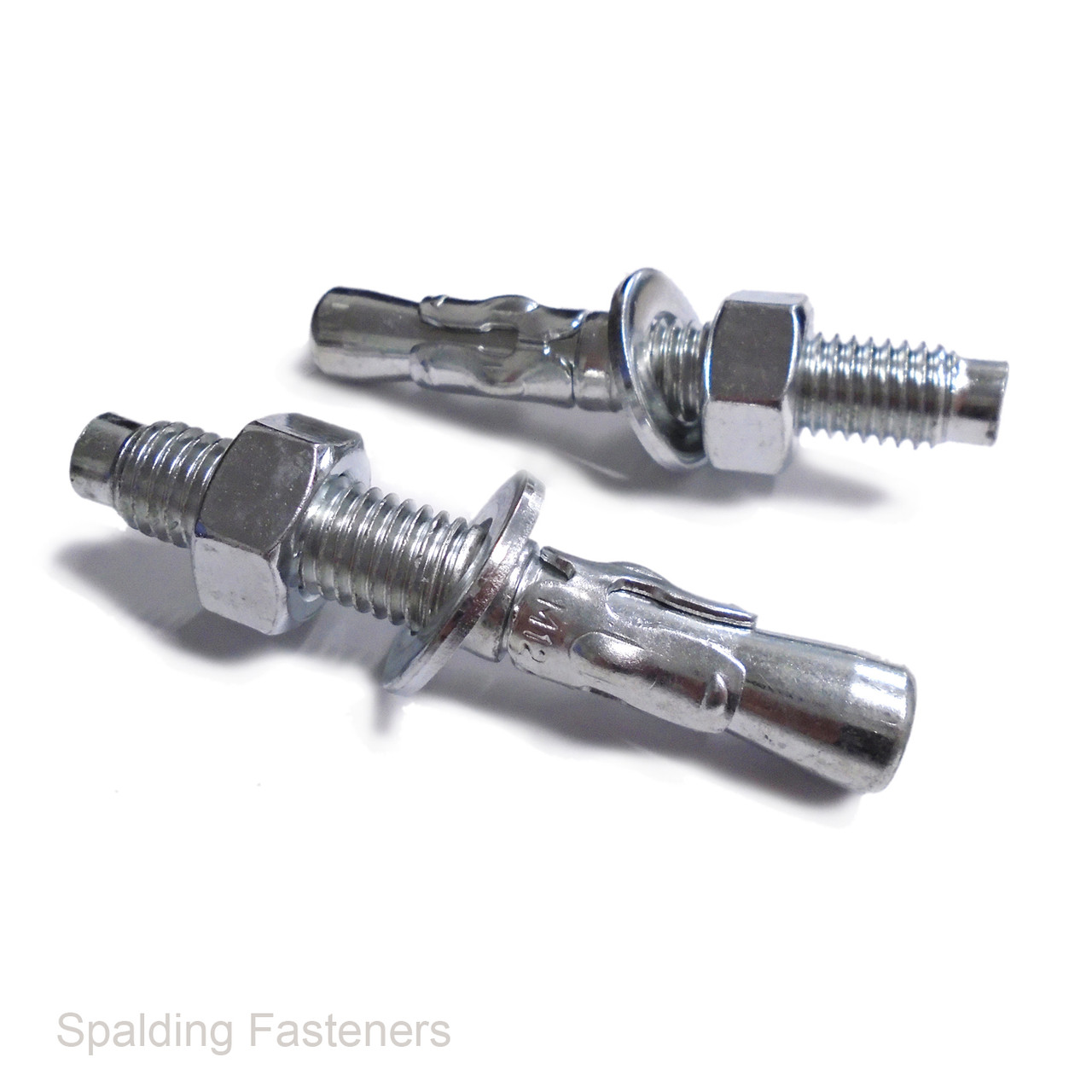

M6 Zinc Plated Through Bolts – 60mm and 80mm
M6 steel through bolts with a bright zinc plated finish, supplied assembled with a nut and washer. These torque-controlled expansion anchors allow installation through the fixture into a prepared concrete hole.
Suitable for uncracked concrete in dry internal conditions, within the requirements of ETA-19/0786. Tightening the nut draws the cone into the expansion clip to secure the anchor.
Sizes and Fixing Capacity
| Anchor Size | Maximum Fixture Thickness | Thread Length |
|---|---|---|
| M6 x 60mm | 3mm | 25mm |
| M6 x 80mm | 23mm | 45mm |
Installation Specifications
| Material | Steel |
|---|---|
| Finish | Bright zinc plated |
| Thread size | M6 |
| Drill diameter | 6mm |
| Minimum hole depth in concrete | 55mm |
| Fixture clearance hole | 7mm |
| Effective embedment depth | 40mm |
| Overall anchor embedment depth | 48mm |
| Minimum concrete thickness | 100mm |
| Installation torque | 7Nm |
Installation
- Check the concrete, fixture thickness and anchor position against the fixing requirements.
- Drill a 6mm hole to at least 55mm depth into the concrete.
- Clean drilling dust and debris from the hole.
- Insert the assembled anchor through the fixture and tap into position.
- Tighten to 7Nm using a calibrated torque wrench.
Pack Quantities
Listed quantities: 1, 5, 10, 20, 50 and 100 anchors. Choose the required length and quantity from the available options.
Assessment Reference
ETA-19/0786 – torque-controlled expansion anchors for uncracked concrete. Observe the assessment requirements for concrete strength, spacing, edge distances and loading.
