Product Description

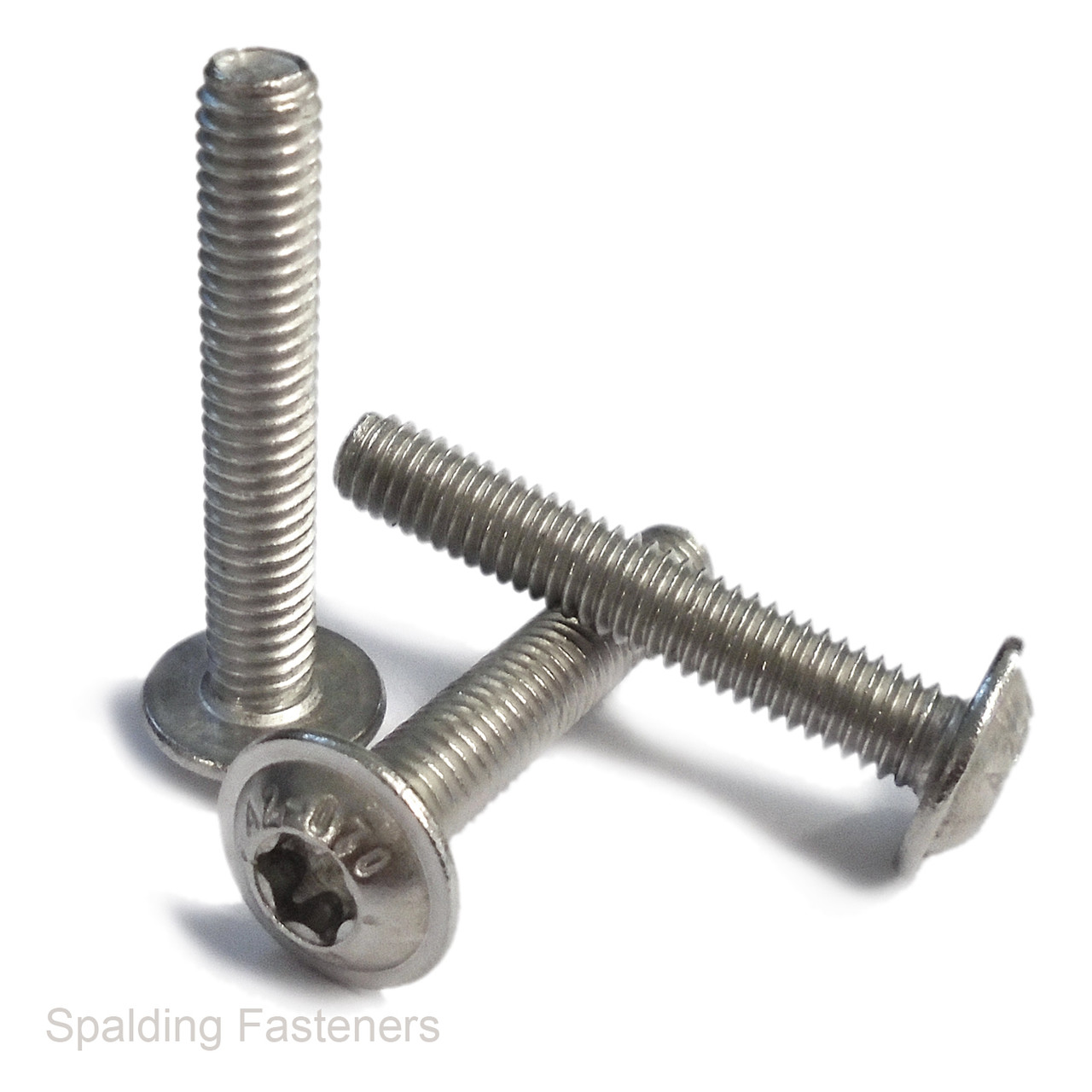

M8 A2 Stainless Steel Torx Button Flange Screws – TX40
M8 x 12mm Torx button flange screws manufactured from A2 stainless steel for good general corrosion resistance. The rounded button head incorporates a flange to provide a wider bearing surface against the component being secured.
These machine screws feature an M8 x 1.25mm metric coarse thread and a TX40 six-lobe drive. Their low profile head is useful for assemblies where head clearance and appearance matter.
Technical Specifications
| Thread size | M8 |
|---|---|
| Thread pitch | 1.25mm – metric coarse |
| Screw length | 12mm |
| Material | A2 stainless steel |
| Head type | Button head with integral flange |
| Drive type | Torx / hexalobular six-lobe socket |
| Driver size | TX40 / T40 |
| Flange diameter | 17.8mm maximum |
| Head height | 4.4mm maximum |
| Head pattern | ISO 7380-2 style with Torx drive |
| Length measurement | From beneath the flange to the tip |
Key Features
- A2 stainless steel construction for corrosion resistance.
- Rounded button head provides a neat finish.
- Integral flange spreads the clamping force over a wider area.
- TX40 drive for installation with a matching Torx bit.
- M8 metric coarse thread for compatible nuts and tapped holes.
Available Size and Pack Quantities
Available in M8 x 12mm, with packs of 1, 5, 10, 20, 50 or 100 screws.
Typical Applications
Suitable for panels, brackets, enclosures, equipment assembly and general maintenance where an M8 stainless steel button flange screw is required.
