Product Description

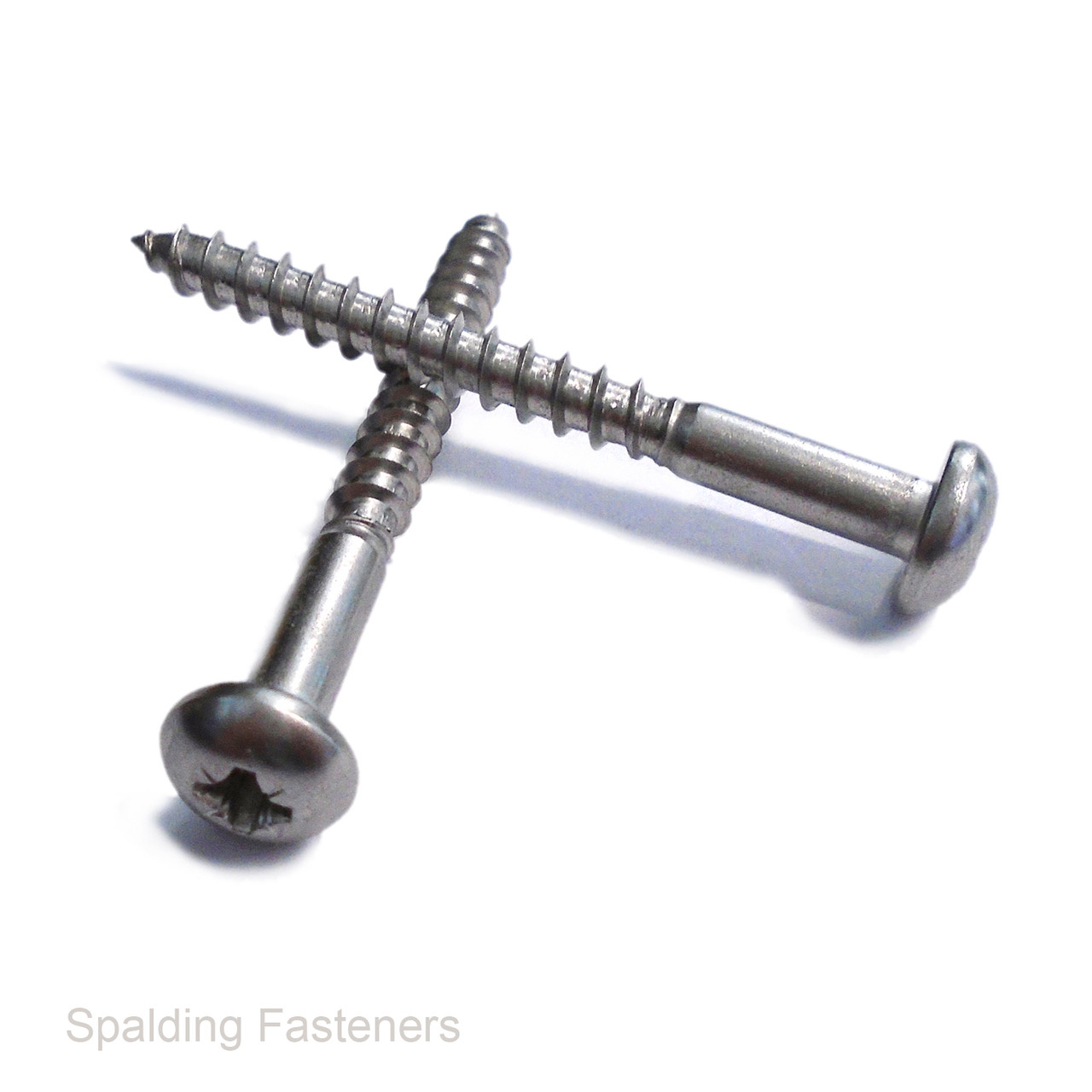

A2 Stainless Steel Pozi Round Head Wood Screws – DIN 7996Z
Pozi round head wood screws manufactured from A2 stainless steel for good general corrosion resistance. The rounded head remains visible above the surface, providing a neat finish when securing fittings to timber.
These DIN 7996Z screws feature a Pozidriv recess and a wood screw thread with a plain shank. Choose from five nominal diameters to suit the fitting and timber being secured.
Technical Specifications
| Material | A2 stainless steel |
|---|---|
| Head style | Round head |
| Drive type | Pozi / Pozidriv |
| Thread type | Wood screw thread, part threaded |
| Dimensional standard | DIN 7996Z |
| Length measurement | From beneath the head to the tip |
Diameter, Head Dimensions and Driver Sizes
| Diameter | Gauge | Head Diameter | Head Height | Pozi Driver |
|---|---|---|---|---|
| 3.5mm | No.6 | 6.55–7.45mm | 2.10–2.60mm | PZ2 |
| 4mm | No.8 | 7.55–8.45mm | 2.60–3.00mm | PZ2 |
| 5mm | No.10 | 9.55–10.45mm | 3.26–3.74mm | PZ2 |
| 5.5mm | No.12 | 10.45–11.55mm | 3.56–4.04mm | PZ3 |
| 6mm | No.14 | 11.45–12.55mm | 3.96–4.44mm | PZ3 |
Key Features
- A2 stainless steel construction for corrosion resistance.
- Round head for surface-mounted fittings.
- Pozidriv recess for use with the matching PZ driver.
- Part threaded design with a plain shank.
Typical Applications
Suitable for timber fittings, furniture repairs, joinery, brackets and general woodwork where a visible round head is required. Prepare a suitable pilot hole where needed for the timber and screw size.
Ordering Information
Select your required diameter and length combination, then choose the pack size. Screw lengths are measured from beneath the head.
