Product Description

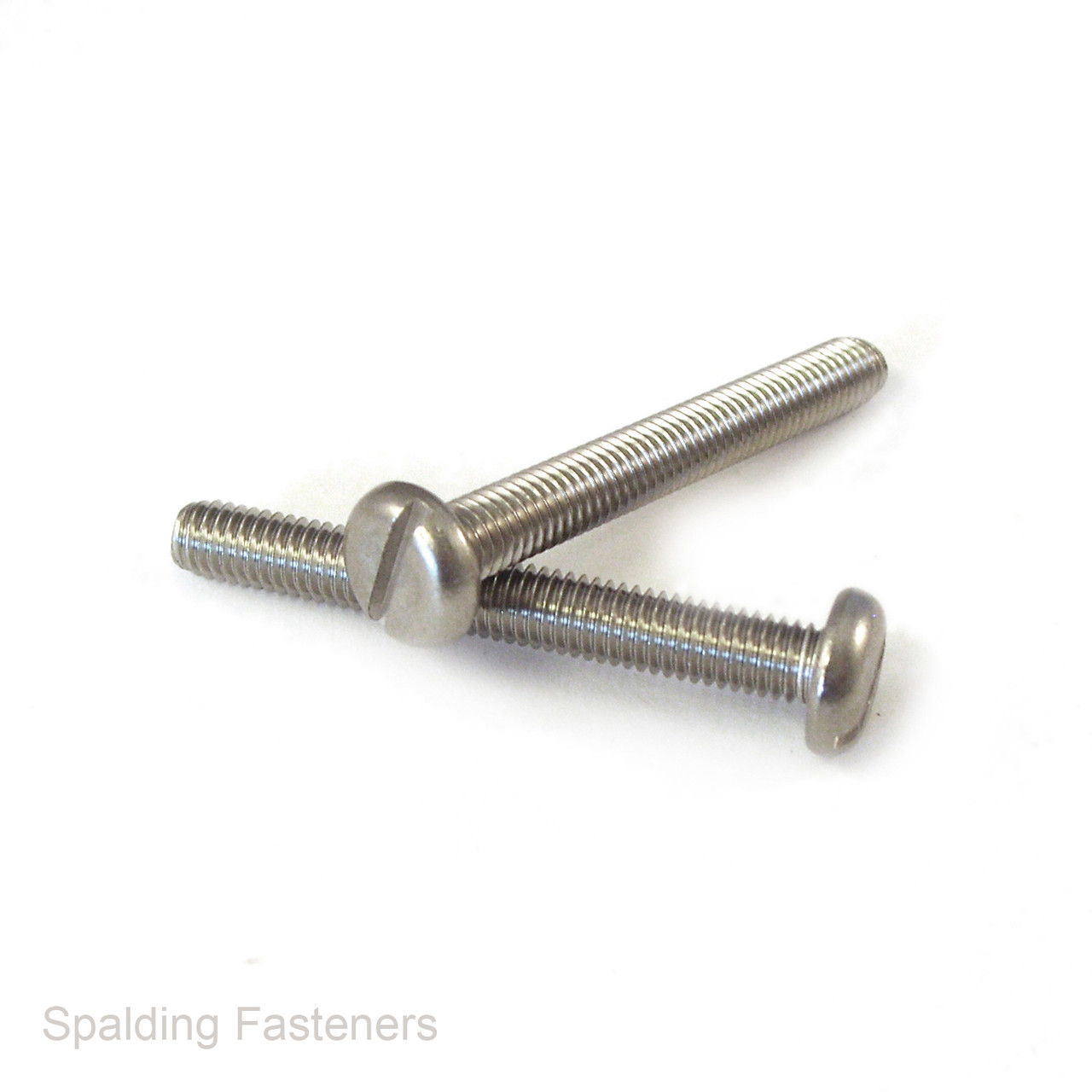

8-32 UNC A2 Stainless Steel Pan Slotted Head Machine Screws
8-32 UNC pan head machine screws manufactured from A2 stainless steel for good general corrosion resistance. These imperial screws feature a single slotted recess for installation using a suitable flat blade screwdriver.
The pan head provides a flat bearing surface against the component being secured. The No.8 UNC thread has 32 threads per inch and fits matching tapped holes or compatible nuts.
Technical Specifications
| Thread designation | 8-32 UNC |
|---|---|
| Nominal thread diameter | No.8 – 0.164" / approximately 4.17mm |
| Threads per inch | 32 TPI |
| Thread form | Unified National Coarse |
| Material | A2 stainless steel |
| Head style | Pan head |
| Drive type | Slotted |
| Head diameter | 0.306–0.322" / approximately 7.77–8.18mm |
| Head height | 0.085–0.096" / approximately 2.16–2.44mm |
| Dimensional standard | ASME B18.6.3 |
| Length measurement | From beneath the head to the tip |
Available Lengths
5/16", 3/8", 1/2", 5/8", 3/4", 1" and 1½".
Key Features
- A2 stainless steel construction for corrosion resistance.
- Slotted drive for use with a flat blade screwdriver.
- Pan head with a flat bearing surface.
- Imperial UNC thread for matching nuts and tapped components.
Typical Applications
Suitable for panels, brackets, enclosures, equipment assembly, maintenance and general repairs requiring No.8 UNC machine screws.
Ordering Information
Select your required length and pack size from the available options. Screw length excludes the head.
