Product Description

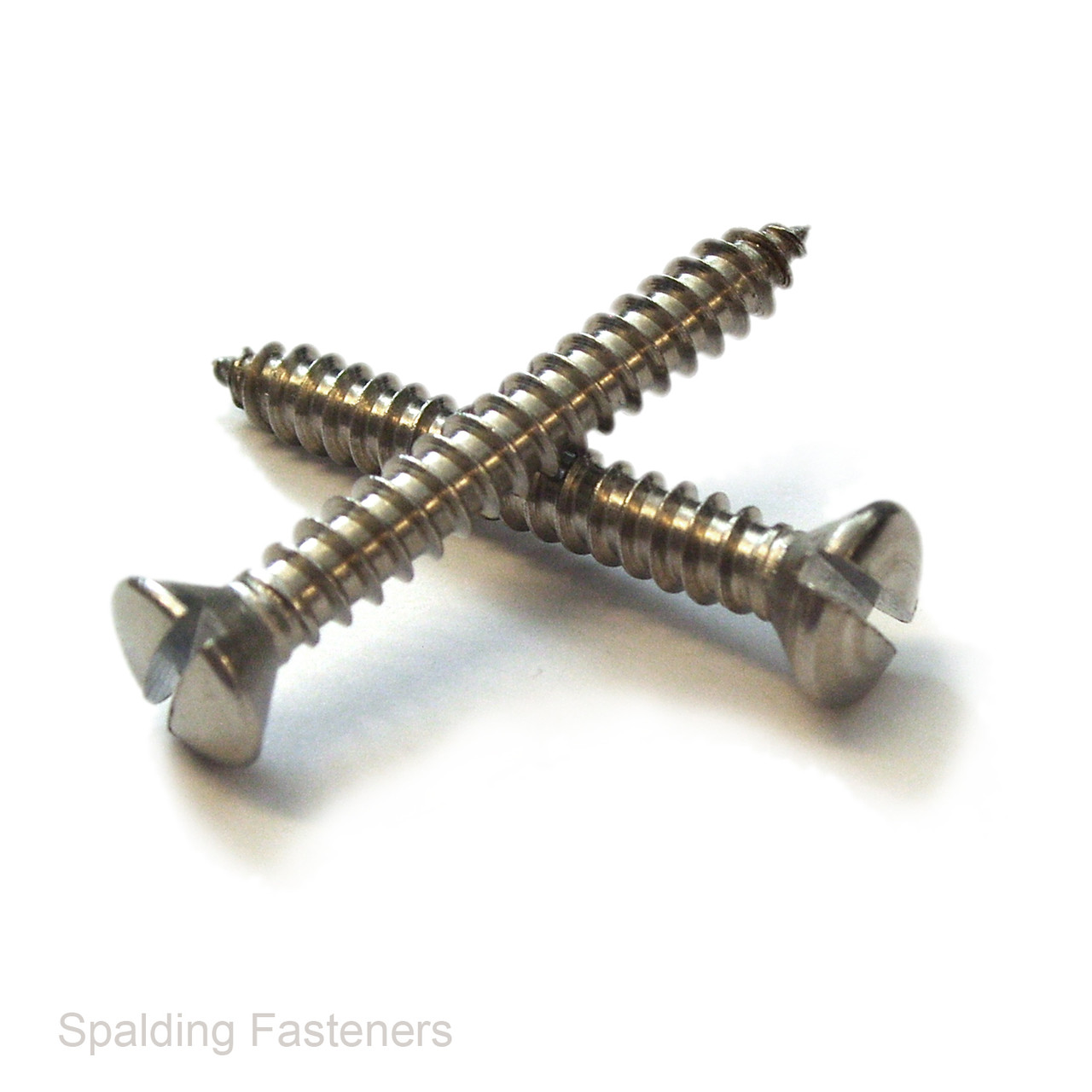

No.10 A2 stainless steel raised countersunk slotted head self tapping screws, manufactured from A2 stainless steel for good corrosion resistance in general outdoor, damp and indoor applications. These self tappers are designed to form their own thread in suitable pre-drilled holes and are commonly used in sheet metal, plastic, aluminium, panels, trim and general assembly work.
The raised countersunk head gives a neat domed finish while still allowing the screw to sit into a countersunk hole. The traditional slotted drive is useful for restoration work, classic applications and general fixing where a plain slot drive is required. These screws are available in No.10 gauge, approximately 4.8mm diameter, with imperial length options from 1/2" to 2". This product type is commonly listed to DIN 7973C.
- No.10 self tapping screws
- Raised countersunk head
- Slotted drive
- A2 stainless steel
- DIN 7973 / DIN 7973C style
- Approx. 4.8mm diameter
- Lengths from 1/2" to 2"
- Available in small and bulk pack sizes
Also known as raised countersunk self tappers, oval head self tapping screws, slotted raised csk screws, No.10 stainless self tappers and DIN 7973 self tapping screws.
| A | B | C | D | E | F |
| No.10 | 4.8mm | 1 1/2" | 38mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1 1/4" | 32mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1" | 25mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 1/2" | 13mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 2" | 50mm | 3/8" | 9.5mm |
| No.10 | 4.8mm | 3/4" | 19mm | 3/8" | 9.5mm |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
