Product Description

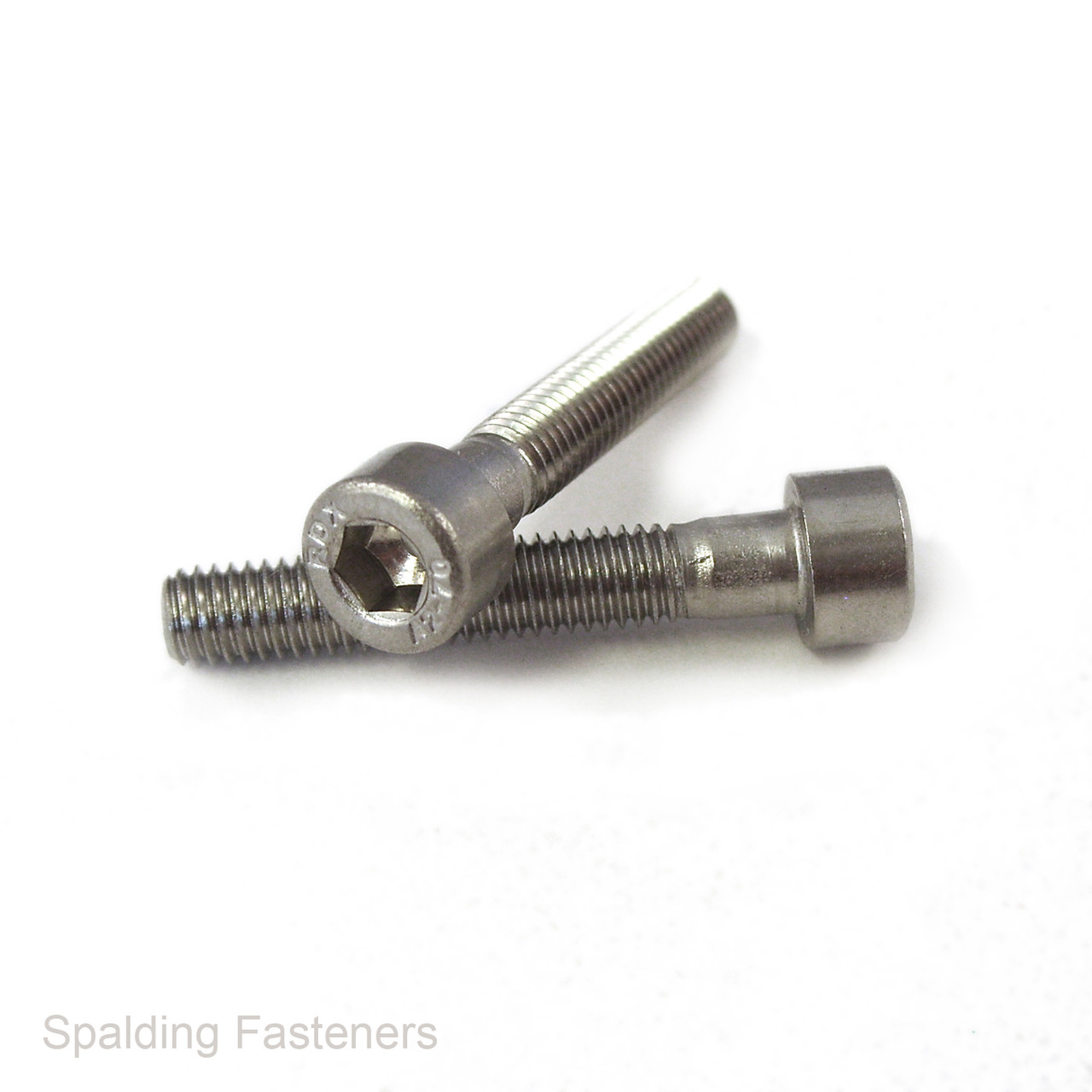

M8 A4-80 Stainless Steel Part Threaded Socket Cap Bolts
M8 socket cap bolts manufactured from A4-80 stainless steel, combining marine grade corrosion resistance with stainless steel property class 80. These bolts feature a threaded end and a plain shank beneath the head.
The M8 x 1.25mm metric coarse thread fits matching nuts and tapped holes. An internal hexagon socket allows installation using a 6mm Allen key.
Specifications
| Feature | Specification |
|---|---|
| Fastener type | Part threaded socket cap bolt |
| Material designation | A4-80 stainless steel |
| Stainless steel property class | 80 |
| Head dimensions | DIN 912 / ISO 4762 pattern |
| Thread size | M8 |
| Thread pitch | 1.25mm – metric coarse |
| Thread coverage | Part threaded, with a plain shank |
| Listed threaded section | 28mm |
| Head style | Cylindrical socket cap head |
| Head diameter | 12.73–13.00mm |
| Head height | 7.64–8.00mm |
| Allen key size | 6mm |
| Length measurement | Measured from beneath the head to the end of the bolt |
Part Threaded Design
The plain shank provides an unthreaded section between the head and threaded end. Select the bolt length to suit the assembly thickness and required thread engagement, ensuring the shank does not prevent the joint from tightening correctly.
The listing specifies a 28mm threaded section. If the exact thread or shank length is critical, confirm the dimensions of the selected size before ordering.
Key Features
- A4-80 stainless steel construction.
- Part threaded design with a plain shank.
- M8 x 1.25mm metric coarse thread.
- Socket cap head for installation with a 6mm Allen key.
- Suitable for assemblies requiring corrosion resistance and stainless steel property class 80.
Typical Applications
Suitable for machinery, brackets, equipment maintenance and outdoor or coastal assemblies where A4 stainless steel is appropriate to the service conditions.
Installation
Use compatible M8 x 1.25mm nuts or tapped holes. Check thread engagement, shank length and head clearance before installation. Tighten with a correctly fitting 6mm Allen key and a torque appropriate to the joint and lubrication conditions.
Suitable lubrication and controlled installation speed can help reduce the risk of galling when assembling stainless steel threads.
Ordering
Select the required bolt length and pack quantity from the available options before adding to your basket.
