Product Description

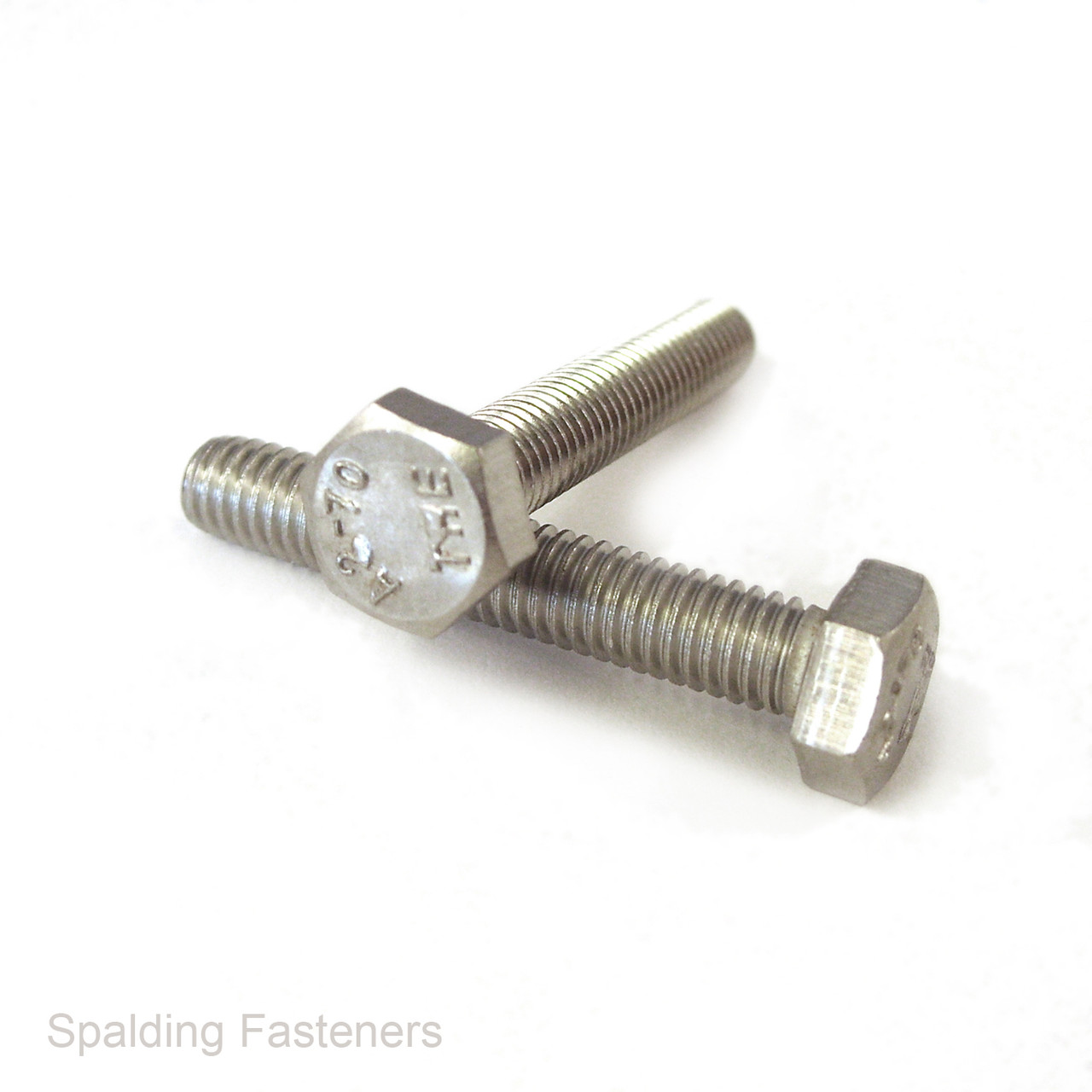

M5 metric A2 stainless steel hex head set screws, fully threaded and manufactured to DIN 933. These metric coarse thread fasteners are made from A2 stainless steel, giving good corrosion resistance for general indoor, outdoor and damp applications.

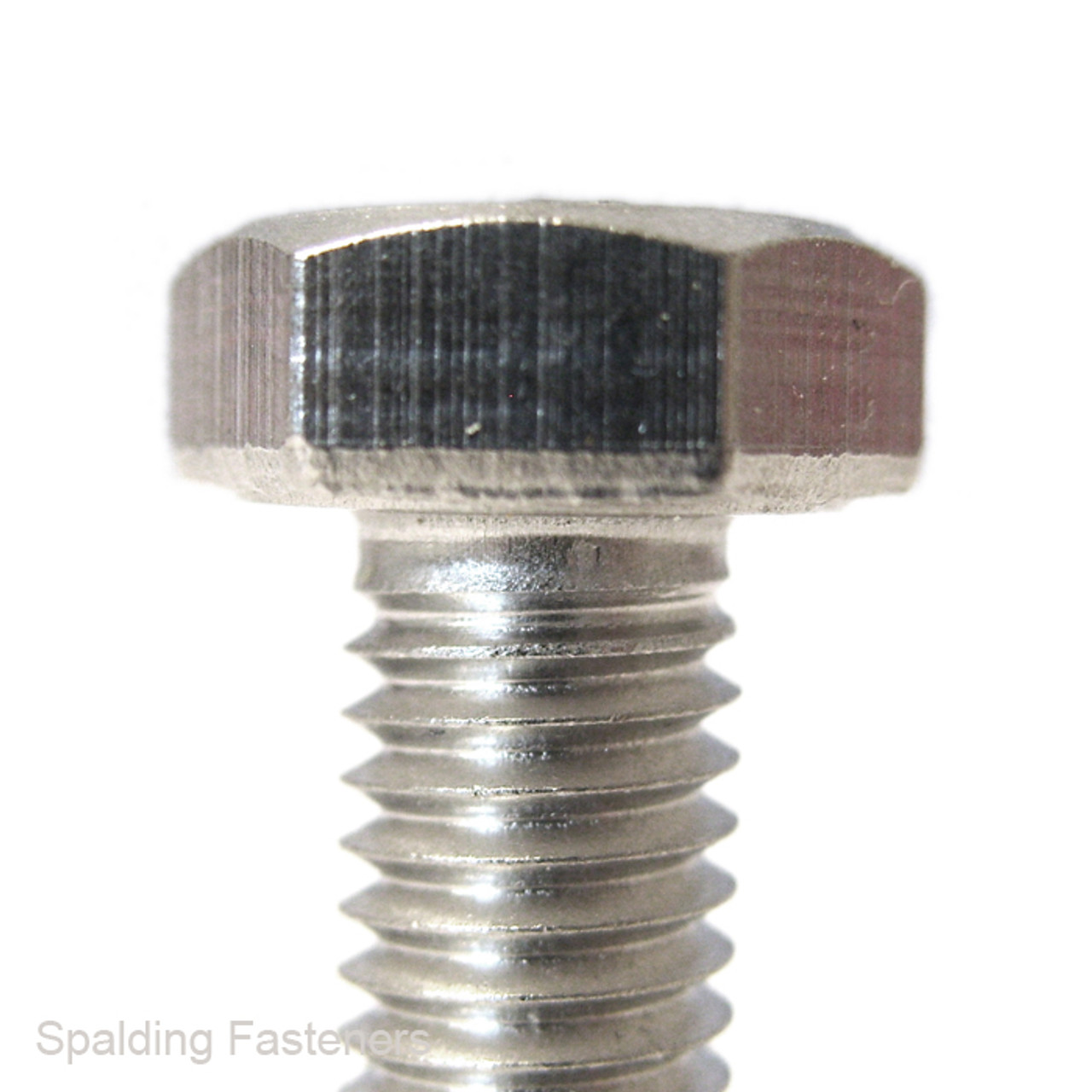

The hexagon head allows fitting with a standard spanner or socket, while the fully threaded shank makes these screws suitable where the thread needs to run close to the underside of the head. These M5 set screws have a standard metric coarse M5 x 0.8mm pitch and use an 8mm spanner size.
Commonly used in machinery, brackets, panels, equipment repairs, fabrication, automotive work and general stainless steel fastening applications.
- M5 metric hex head set screws
- Fully threaded
- A2 stainless steel
- DIN 933 standard
- Metric coarse thread
- M5 x 0.8mm pitch
- 8mm spanner size
- Lengths from 10mm to 70mm
- Available in small and bulk pack sizes
Also known as M5 hex set screws, stainless set screws, fully threaded hex bolts, DIN 933 bolts and A2 stainless hex head screws.
| A | B | C | D | E |
| 4mm | 10mm | 7mm | 2.8mm | 0.7 |
| 5mm | 12mm | 8mm | 3.5mm | 0.8 |
| 5mm | 16mm | 8mm | 3.5mm | 0.8 |
| 5mm | 20mm | 8mm | 3.5mm | 0.8 |
| 5mm | 25mm | 8mm | 3.5mm | 0.8 |
| 5mm | 30mm | 8mm | 3.5mm | 0.8 |
| 5mm | 35mm | 8mm | 3.5mm | 0.8 |
| 5mm | 40mm | 8mm | 3.5mm | 0.8 |
| 5mm | 45mm | 8mm | 3.5mm | 0.8 |
| 5mm | 50mm | 8mm | 3.5mm | 0.8 |
| 5mm | 55mm | 8mm | 3.5mm | 0.8 |
| 5mm | 60mm | 8mm | 3.5mm | 0.8 |
| 5mm | 70mm | 8mm | 3.5mm | 0.8 |
Please Note: Specifications given are intended as a guide only. If critical to your project please check with us first.
