Product Description

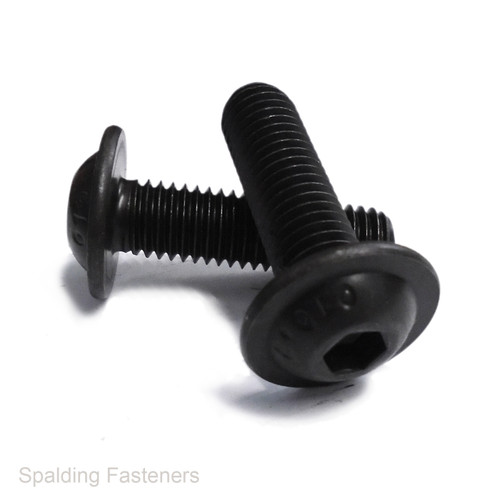

M5 Grade 10.9 Self Colour Socket Button Flange Screws
M5 socket button flange machine screws manufactured from property class 10.9 high tensile steel with a self colour finish. Featuring an M5 × 0.8mm metric coarse thread, they combine a rounded button head with an integral flange for a wider bearing surface.
The internal hexagon socket takes a 3mm Allen key or hexagon driver bit. The shallow button head provides a neat finish for brackets, covers, panels and machinery assemblies.
Specifications
| Thread size | M5 |
|---|---|
| Nominal diameter | 5mm |
| Thread pitch | 0.8mm – metric coarse |
| Thread direction | Right hand |
| Material | High tensile steel |
| Property class | 10.9 |
| Finish | Self colour |
| Head style | Socket button head with integral flange |
| Drive size | 3mm hexagon socket / Allen key |
| Flange diameter | 11.8mm maximum – ISO 7380-2 pattern |
| Head height | 2.75mm maximum – ISO 7380-2 pattern |
| Length measurement | Measured from beneath the flange to the tip |
| Lengths, thread coverage and pack quantities | Check the available product options |
Key Features
- Property class 10.9 high tensile steel construction.
- Rounded button head with an integral flange.
- Wider bearing surface to distribute the clamping load.
- M5 × 0.8mm metric coarse thread.
- 3mm internal hexagon drive.
Typical Applications
Suitable for brackets, panels, covers, housings and equipment assemblies where a flanged button head fastener is specified.
Installation
Use a correctly fitting 3mm Allen key or hexagon driver bit, fully seated in the socket. Check thread engagement, flange clearance and screw length before tightening. Ensure the screw cannot bottom out in a blind hole before the joint is clamped.
Button head geometry limits load capacity compared with a conventional socket cap head. Use tightening guidance appropriate to this screw style and the joint design. Self colour steel requires suitable protection when exposed to moisture.
Ordering
Select the required length, thread coverage option where offered, and pack quantity. Screw length excludes the head and is measured from beneath the flange.
Standards
- ISO 7380-2 – hexagon socket button head screws with collar.
- ISO 898-1 – mechanical properties, with reduced loadability associated with button head geometry.
