Product Description

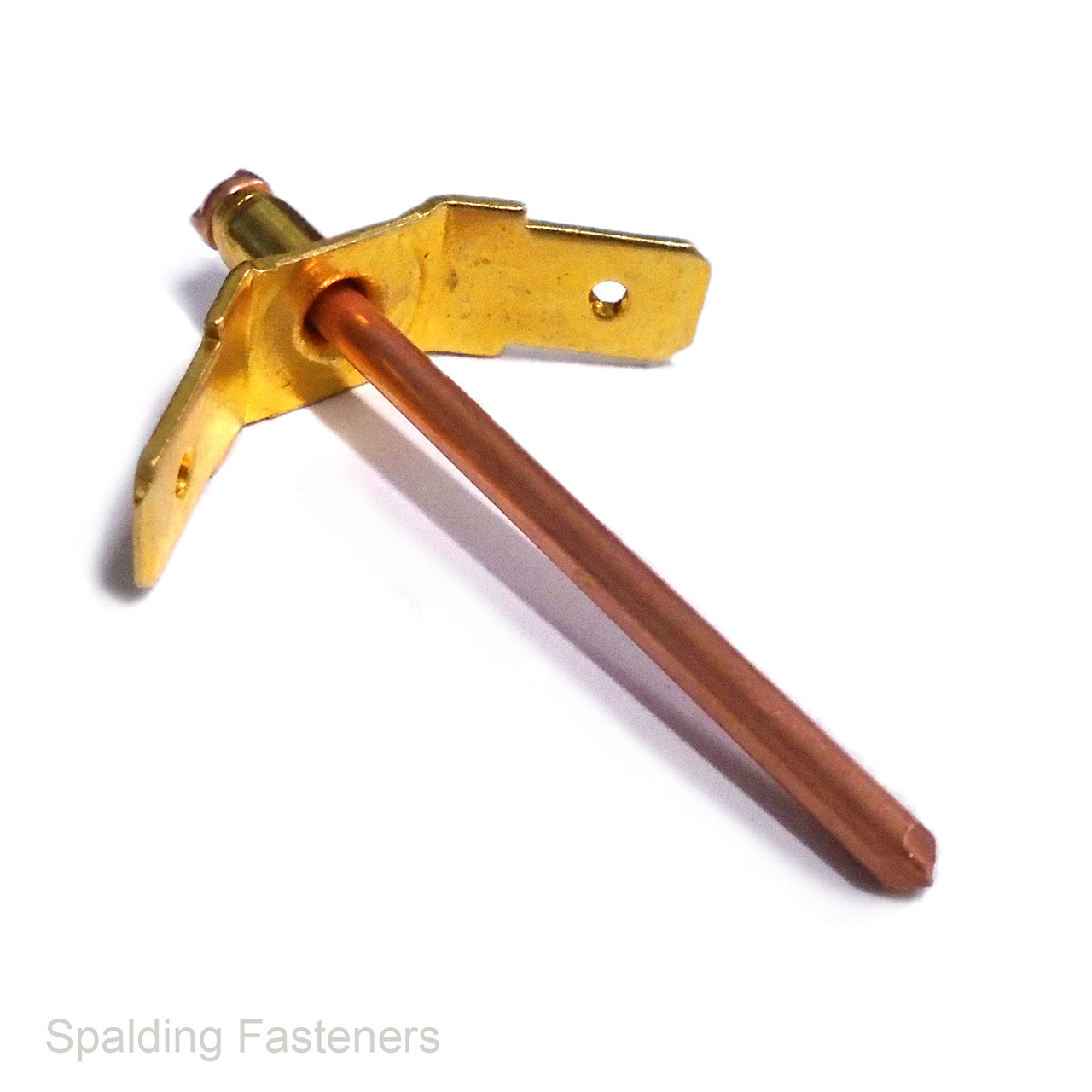

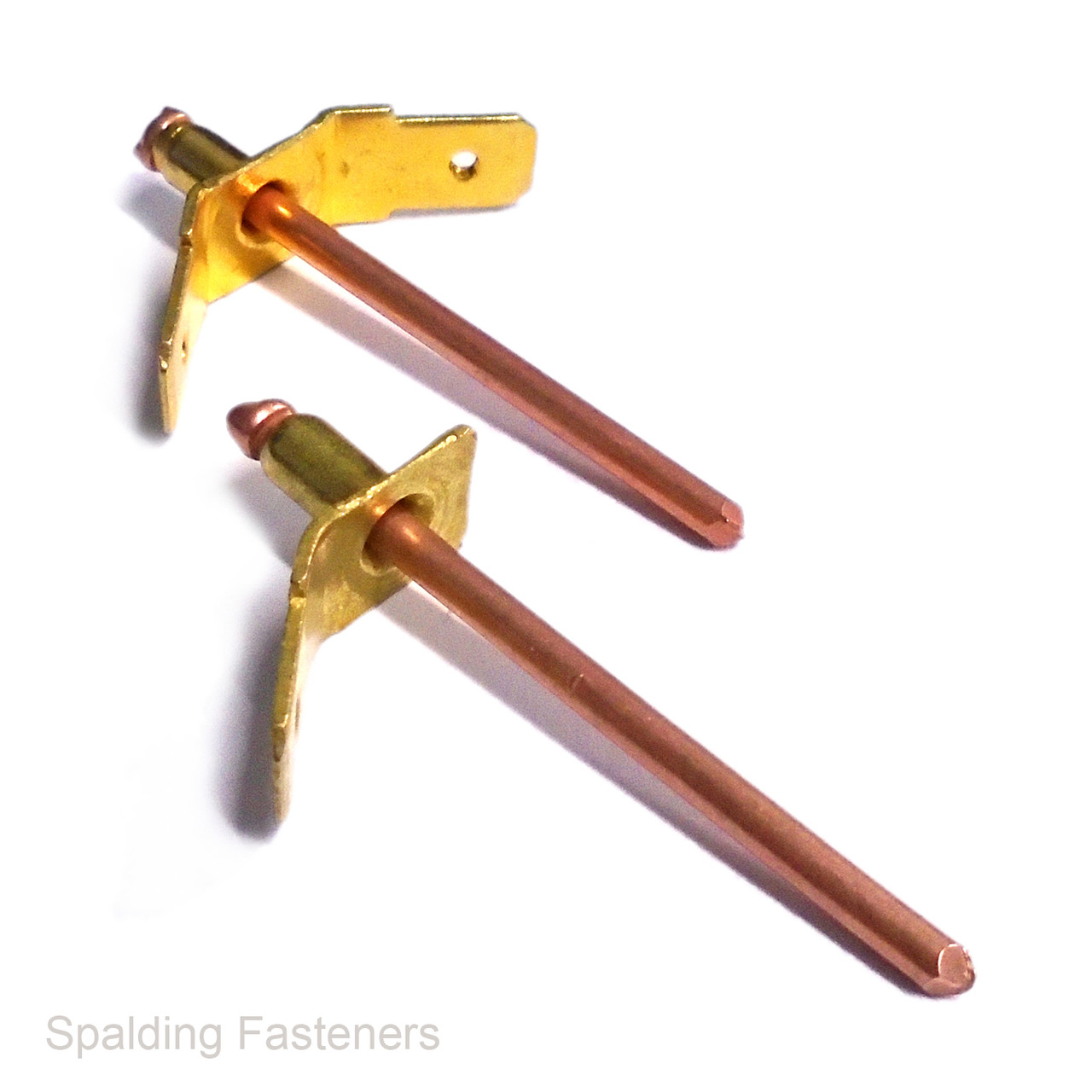

4 x 7mm Earthing Terminal Rivets – Single and Double Head
These earthing terminal rivets, also known as mass rivets or grounding rivets, combine a blind rivet fixing with an electrical terminal connection. They are designed to provide a grounding connection point on compatible metal panels and equipment enclosures.
Available with single or double terminal heads, both versions have a nominal rivet size of 4 x 7mm. Choose the terminal arrangement required for your assembly.
| A | B | C | D | E | F |
| 4mm | 7mm | 0.8mm | 4mm | 6.3mm | 8.5mm |
| 4mm | 7mm | 0.8mm | 4mm | 6.3mm | 8.5mm |
